Procurement Report: Industrial Suction Cups

1. Technical Specifications and Performance Metrics

The procurement of suction cups requires precise alignment between cup geometry, material properties, and the intended vacuum load. Performance is dictated by the interaction between cup diameter, lip profile, and Shore A hardness against the specific surface condition of the workpiece.

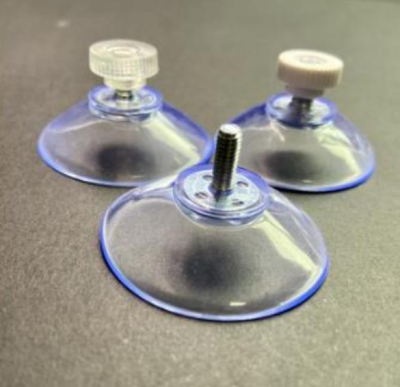

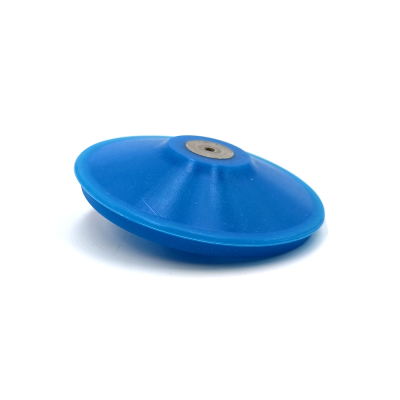

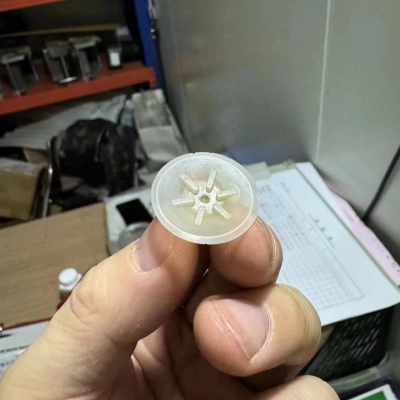

• Diameter & Geometry: Standardized diameters typically range from 20 mm to 150 mm. Selection should prioritize the largest diameter that fits the workpiece geometry to maximize holding force.
• Vacuum Range: Effective operation generally requires a vacuum level between -40 kPa and -90 kPa. Lower vacuum levels (-40 kPa) may suffice for smooth, non-porous surfaces, while rougher surfaces often require deeper vacuums (-90 kPa) to compensate for leakage.
• Holding Force: The pull force capacity varies significantly based on size and vacuum level, typically ranging from 10 N to 800 N. Procurement calculations must include a safety factor (usually 2x to 4x) above the theoretical holding force to account for acceleration and dynamic loads.
• Material Hardness (Shore A): Hardness is critical for surface conformity. The typical range is 30 to 95 Shore A.
  • Soft (30-50 Shore A): Ideal for uneven or delicate surfaces.
  • Hard (60-95 Shore A): Suitable for flat, rigid surfaces requiring high abrasion resistance.
• Material Selection:
  • NBR (Nitrile Butadiene Rubber): Recommended for oily or greasy surfaces.
  • Silicone: Essential for high-temperature applications (>200°C) or delicate surfaces (e.g., glass, polished metals).
  • PU (Polyurethane): Best for high-abrasion environments and sharp edges.

Actionable Recommendation: Before ordering, measure the surface roughness and temperature of the target object. Calculate the required holding force using the formula $F = A \times P \times \text{Safety Factor}$, where $A$ is the cup area and $P$ is the vacuum pressure. Select a cup with a diameter that covers at least 80% of the contact area.

2. Industry Compliance and Quality Assurance

Ensuring regulatory compliance is vital for electric suction systems and components used in export markets, particularly in the EU and North America. While specific named suppliers are not listed here, adherence to international standards is a prerequisite for B2B procurement.

• Electrical Safety & Frequency: For electric suction cups, CE, UL, and TÜV certifications are critical, especially for operations in regions with specific grid frequencies like 60Hz (e.g., North America, parts of Asia). Procurement must verify that the device's frequency rating matches the local grid to prevent motor failure or safety hazards.
• Environmental & Chemical Compliance:
  • RoHS (Restriction of Hazardous Substances): Mandatory for electronic components and plastic parts in the EU.
  • REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals): Required for chemical safety compliance in the EU market.
• Material Safety: Ensure that silicone and NBR materials used in food or medical adjacent applications meet relevant FDA or EU food-contact regulations (often implied by "high-grade" silicone specifications).

Actionable Recommendation: Request a Declaration of Conformity (DoC) and specific test reports for RoHS and REACH from the supplier. For electric actuators, explicitly verify the frequency rating (50Hz vs. 60Hz) and the presence of CE/UL marks on the datasheet to avoid customs delays or safety liabilities.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in suction cup procurement extends beyond unit price to include lifecycle costs, integration time, and maintenance.

• Unit Cost Ranges: Typical B2B unit costs for standard industrial suction cups range from $0.50 to $15.00 USD, depending on material (Silicone is generally more expensive than NBR) and complexity (multi-lip or bellows designs).
• Minimum Order Quantity (MOQ): Standard MOQs for custom or high-volume orders typically range from 500 to 1,000 units. For off-the-shelf standard sizes, MOQs may be as low as 50 units.
• Lead Time: Standard lead times are typically 2 to 4 weeks for stock items. Custom molds or specialized materials (e.g., high-temp silicone) may require 6 to 8 weeks.
• Integration: Suction cups should be selected for compatibility with standard vacuum fittings (e.g., M5, M8, or G1/4 threads). Quick-change couplings can reduce downtime by 30-50% during maintenance.

Actionable Recommendation: Optimize inventory by standardizing on the most common diameters (40mm, 60mm, 100mm) to leverage volume discounts. When evaluating suppliers, request a "Total Cost of Ownership" analysis that includes expected replacement frequency based on abrasion ratings (e.g., PU lasts longer than NBR on rough surfaces, justifying a higher initial cost).

4. Typical Use Cases

Suction cups are versatile tools applied across various industries based on surface characteristics and load requirements.

• Glass Handling: High-purity silicone cups with soft lips (30-50 Shore A) are used in automotive and construction for handling tempered glass, preventing scratches.
• Packaging & Logistics: NBR cups are standard for handling cardboard boxes and pallets, offering durability against friction and moderate oil exposure from packaging adhesives.
• Electronics Manufacturing: Small diameter (20-40 mm) PU or silicone cups are used for picking PCBs and delicate components, requiring high precision and low holding force to avoid damage.
• Automotive Assembly: Large diameter (100-150 mm) cups with high hardness are used for moving car doors, hoods, and windshields, often in conjunction with vacuum generators.
• Food Processing: Silicone cups are preferred for handling baked goods or raw meat, ensuring non-toxic, easy-to-clean surfaces that withstand washdowns.

Actionable Recommendation: Map your specific application to the material profile. If handling oily metal parts, do not use standard rubber; specify NBR. If handling hot glass, specify Silicone. Always validate the "recovery time" (time to regain shape after deformation) for high-speed cycle applications.

5. Long-Term Planning Considerations

Procurement strategies must account for market trends and the evolving demands of automation.

• Market Trends: There is a growing demand for smart suction cups equipped with integrated sensors for vacuum monitoring and leak detection. This trend is driven by Industry 4.0 initiatives to reduce unplanned downtime.
• Sustainability: Increased pressure for RoHS and REACH compliance is driving a shift toward recyclable materials and reduced hazardous substance content in rubber compounds.
• Supply Chain Resilience: Diversify suppliers across different regions (e.g., EU, Asia, North America) to mitigate risks associated with frequency mismatches (50Hz/60Hz) or material shortages.
• Durability vs. Cost: While PU offers superior abrasion resistance, it may have a shorter lifespan in high-temperature environments compared to silicone. Long-term planning should balance the replacement frequency against the cost of the cup.

Actionable Recommendation: Develop a "Material Matrix" for your facility that categorizes applications by temperature, surface type, and cycle speed. This will allow for proactive replacement scheduling and prevent production stoppages due to cup degradation. Monitor the adoption of sensor-integrated cups for high-value automation lines.

6. Special Product Recommendations

The following table compares common suction cup types to assist in selecting the right product for specific buyer profiles and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | NBR Standard | General Manufacturing, Packaging | Diameter: 40-100mm; Hardness: 60-70 Shore A; Temp: -20°C to +80°C | Oil contamination reduces lifespan if not NBR. | Verify oil content on workpiece; choose NBR specifically for oily surfaces. | | Silicone High-Temp | Glass, Food, Electronics | Diameter: 20-60mm; Hardness: 30-50 Shore A; Temp: -60°C to +200°C | Higher cost; softer material wears faster on rough surfaces. | Use only for high-temp or delicate surfaces; avoid for abrasive metal handling. | | PU Abrasion-Resistant | Automotive, Metal Handling | Diameter: 60-150mm; Hardness: 70-90 Shore A; Temp: -30°C to +90°C | Poor performance in high heat; may crack in cold. | Ideal for sharp edges and rough surfaces; ensure operating temp is within range. | | Multi-Lip (Bellows) | Uneven/Contoured Surfaces | Diameter: 40-100mm; High flexibility; Vacuum: -40 to -90 kPa | Complex geometry increases cost; harder to clean. | Use for irregular surfaces where standard cups cannot seal; check for debris traps. | | Electric Vacuum Cup | Automated Assembly Lines | Certs: CE, UL, TÜV; Freq: 50/60Hz; Force: 10-800 N | Frequency mismatch (50Hz vs 60Hz) causes failure. | Critical: Verify local grid frequency (60Hz in US/Japan) before ordering. |

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct suction cup diameter for my application? A: Select the largest diameter that fits the workpiece geometry. A larger diameter increases the surface area, thereby increasing the theoretical holding force. For rough surfaces, you may need a slightly larger cup to ensure the lip seals properly.

Q2: What is the difference between NBR and Silicone suction cups? A: NBR (Nitrile) is best for oily surfaces and general industrial use due to its oil resistance. Silicone is preferred for high-temperature applications (up to 200°C) and delicate surfaces (like glass) because it is non-marking and heat resistant.

Q3: What vacuum level is required for a 100mm cup to lift a 5kg load? A: The holding force is roughly proportional to the area and vacuum. A 100mm cup has an area of ~0.00785 m². To lift 5kg (approx. 49N) with a safety factor of 2, you need ~98N. This typically requires a vacuum level closer to -80 to -90 kPa. Always calculate based on specific cup efficiency.

Q4: Are suction cups certified for food contact? A: Only specific grades of silicone or FDA-approved rubber compounds are suitable for food contact. Standard NBR or PU cups are generally not food-safe unless explicitly stated by the manufacturer with relevant certifications.

Q5: What happens if I use a 50Hz electric suction cup in a 60Hz region? A: This can lead to motor overheating, reduced lifespan, or immediate failure. Ensure the product has CE/UL/TÜV certification and explicitly states compatibility with the local grid frequency (e.g., 60Hz for North America).

Q6: How long do suction cups typically last? A: Lifespan varies by material and application. In low-abrasion environments, silicone cups can last years. In high-abrasion environments (e.g., metal handling), PU cups may need replacement every few months. NBR cups last longest on oily surfaces.

Q7: Can I use suction cups on porous surfaces like cardboard? A: Yes, but you will need a higher vacuum level (closer to -90 kPa) and potentially a larger cup to compensate for air leakage through the pores. Multi-lip cups can also help improve the seal on uneven cardboard.

Q8: What is the typical lead time for custom suction cups? A: Standard stock items are usually available within 2-4 weeks. Custom molds or specialized material formulations typically require 6-8 weeks for production and delivery.
