Procurement Report: Surface Mount Technology (SMT) Components and Services

Product Category Identified: Surface Mount Technology (SMT) Components, Assembly Services, and Process Equipment. Report Context: Based on industry fundamentals of SMT, focusing on process defects, reliability standards, and operational optimization for high-reliability electronics manufacturing.

---

1. Technical Specifications and Performance Metrics

Surface Mount Technology (SMT) procurement must prioritize components and processes that ensure high-density assembly and thermal reliability. The technical baseline for modern SMT operations involves specific tolerances and material properties.

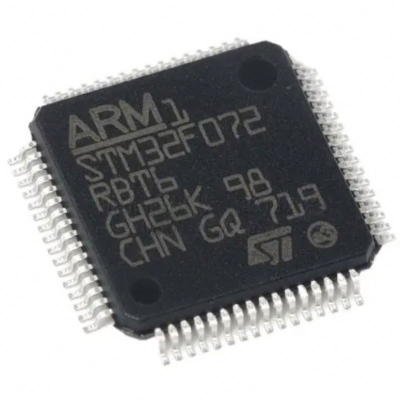

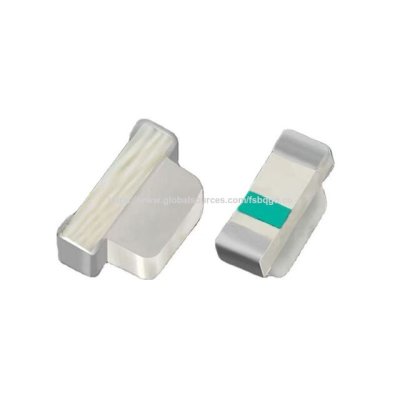

• Component Packaging & Pitch:
  • Typical B2B Range: Component pitches range from 0.4 mm to 1.27 mm for standard packages (0402, 0603, 0805) down to <0.3 mm for micro-packages and Ball Grid Arrays (BGAs).
  • Procurement Action: Verify that the supplier's component inventory includes micro-packages and BGAs. Ensure the procurement team specifies pitch tolerances within ±0.05 mm to prevent placement errors during high-speed assembly.
• Solder Paste & Printing Precision:
  • Typical B2B Range: Solder paste particle size (Type 3, 4, or 5) typically ranges from 25–45 µm. Stencil aperture tolerances are generally ±5 µm to ensure consistent paste volume.
  • Procurement Action: Demand data sheets for solder paste viscosity stability (typically 100–200 Pa·s at 25°C). Require suppliers to provide stencil thickness options ranging from 80 µm to 150 µm based on component footprint density.
• Throughput & Line Performance:
  • Typical B2B Range: High-speed pick-and-place lines typically achieve 20,000 to 50,000 components per hour (CPH).
  • Procurement Action: When evaluating assembly service providers, request throughput data validated against similar board complexities. Aim for a line efficiency rate of >90% to minimize cost-per-unit.

2. Industry Compliance and Quality Assurance

Reliability is the cornerstone of SMT procurement. The process must adhere to strict inspection and reliability standards to mitigate defects such as tombstoning, bridging, or voiding.

• Inspection Standards:
  • Typical B2B Range: Visual inspection criteria often align with IPC-A-610 Class 2 or Class 3 standards. Automated Optical Inspection (AOI) defect detection rates should exceed 95% for critical solder joints.
  • Procurement Action: Mandate that all suppliers provide inspection reports referencing IPC standards. Require a "First Article Inspection" (FAI) report before full-scale production runs.
• Cleaning and Process Control:
  • Typical B2B Range: Residue levels post-cleaning should be <1.5 µg/cm² (ionic contamination) to prevent corrosion.
  • Procurement Action: Include clauses in contracts requiring cleaning process validation. Ask for evidence of cleaning efficacy testing (e.g., resistivity testing) for boards intended for harsh environments.
• Rework and Repair Protocols:
  • Typical B2B Range: Rework success rates for BGA reballing should be >98%.
  • Procurement Action: Ensure the supplier has a documented rework strategy using standard tools. Verify their capability to identify and repair common SMT issues without compromising the board's structural integrity.

3. Cost Efficiency and Integration Capabilities

Optimizing the SMT supply chain requires balancing component costs with process efficiency and integration flexibility.

• Cost Structure:
  • Typical B2B Range: SMT assembly costs typically range from $0.05 to $0.25 per component depending on volume and complexity. Setup costs for a new line configuration can range from $500 to $2,000.
  • Procurement Action: Negotiate tiered pricing based on volume. For high-mix, low-volume orders, prioritize suppliers with flexible setup times over those offering the lowest per-unit cost.
• Integration Capabilities:
  • Typical B2B Range: Integration lead times for new product introductions (NPI) typically range from 2 to 4 weeks.
  • Procurement Action: Select suppliers capable of interpreting PCB fabrication processes and analyzing board complexity. Ensure they can communicate effectively across design and production departments to reduce time-to-market.
• Yield Optimization:
  • Typical B2B Range: Target initial yield rates should be >95%, rising to >98% after process stabilization.
  • Procurement Action: Require suppliers to share yield data and defect Pareto charts. Incentivize suppliers with bonuses for maintaining yield rates above 99% during the first three production batches.

4. Typical Use Cases

SMT is foundational to high-reliability electronics manufacturing across various sectors. Understanding the application scenario helps in selecting the right component grades and assembly partners.

• Consumer Electronics: High-volume production of smartphones and wearables requiring 0201 or 01005 micro-packages and high-density interconnects.
• Automotive & Industrial: Applications demanding IPC Class 3 reliability, often involving BGAs and thermal management solutions for engine control units (ECUs) and sensors.
• Medical Devices: Devices requiring strict cleanliness and traceability, often utilizing lead-free soldering processes and rigorous reliability testing.
• Telecommunications: Base stations and routers requiring high thermal cycling resistance and robust BGA connections.

Procurement Recommendation: Match the component grade (Class 1, 2, or 3) strictly to the end-use environment. Do not overspecify for consumer goods, but never underspecify for medical or automotive applications.

5. Long-Term Planning Considerations

Strategic procurement in SMT must account for evolving component technologies and market dynamics.

• Market Trends & Demand Signals:
  • Trend: Increasing demand for micro-packages and 3D stacking technologies as devices shrink.
  • Trend: Shift towards lead-free and halogen-free materials driven by environmental regulations (e.g., RoHS, REACH).
  • Trend: Growing need for AI-driven inspection to reduce human error in visual inspection criteria.
• Supply Chain Resilience:
  • Typical B2B Range: Lead times for specialized components (e.g., specific BGAs) can extend to 12–24 weeks during shortages.
  • Procurement Action: Diversify the supplier base for critical components. Maintain a strategic buffer stock of high-risk, long-lead-time items.
• Workforce Development:
  • Trend: A skills gap exists in understanding SMT fundamentals, stencil design, and troubleshooting.
  • Procurement Action: Include training requirements in supplier contracts or partner with training providers (e.g., RIT Certified) to upskill internal teams on process fluency and defect identification.

6. Special Product Recommendations

The following table compares common SMT product types to assist in selecting the right solution based on buyer profile and risk tolerance.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard SMT Assembly Service | High-volume Consumer Electronics | 20k+ CPH, IPC-A-610 Class 2, 2-week lead time | Low (Mature process) | Prioritize suppliers with automated AOI and documented yield data. | | High-Density Micro-Package Assembly | Medical/Telecom | Pitch <0.4mm, BGA <0.5mm, IPC Class 3 | High (Precision required) | Require proof of micro-soldering expertise and X-ray inspection capabilities. | | Solder Paste & Stencil Kits | In-house Manufacturing | Type 3/4 Paste, 80-150µm Stencil, Viscosity 100-200 Pa·s | Medium (Material stability) | Verify shelf life (typically 6 months refrigerated) and request batch traceability. | | Rework & Repair Services | NPI / Low-Volume Prototypes | BGA reballing, <24h turnaround, <2% defect rate | Medium (Skill dependent) | Ensure the provider uses standard tools and has a defined repair strategy. | | Training & Certification Programs | Management / Engineering Teams | 12-week curriculum, Defect ID, Reliability Testing | Low (Knowledge transfer) | Select programs that cover PCB fabrication analysis and process optimization. |

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for SMT assembly services? A: For standard orders, lead times typically range from 2 to 4 weeks. However, for high-mix, low-volume, or complex BGA assemblies, expect 4 to 8 weeks due to setup and testing requirements.

Q2: How do I ensure the quality of surface mount components? A: Require suppliers to adhere to IPC-A-610 standards. Insist on visual inspection criteria and reliability testing reports. For critical applications, demand X-ray inspection data for BGAs to check for voiding and bridging.

Q3: What are the common defects I should look for in SMT processes? A: Common defects include tombstoning, bridging, insufficient solder, and voiding in BGAs. Procurement should require suppliers to have a documented strategy for identifying and repairing these issues using standard tools.

Q4: How does component pitch affect the procurement process? A: Smaller pitches (e.g., <0.4 mm) require higher precision equipment and more skilled operators. Procurement must verify the supplier's capability to handle micro-packages to avoid placement failures and yield loss.

Q5: What is the difference between IPC Class 2 and Class 3 in SMT? A: Class 2 is for general consumer electronics where extended life is not critical. Class 3 is for high-reliability applications (medical, aerospace, automotive) where continuous performance is mandatory. Always specify the correct class to avoid over-engineering or under-specifying.

Q6: How long does solder paste remain usable? A: Refrigerated solder paste typically has a shelf life of 6 months. Once opened, it should be used within 24 hours (or as specified by the manufacturer) to maintain viscosity and prevent oxidation.

Q7: Why is training important for SMT procurement? A: Understanding SMT fundamentals, such as stencil design and process fluency, allows procurement teams to communicate effectively with production departments, troubleshoot issues faster, and optimize time-to-market.

Q8: What are the cost implications of rework in SMT? A: Rework can increase costs by 10–30% per affected unit and introduce reliability risks. Procurement should prioritize suppliers with high initial yield rates (>95%) to minimize the need for rework and repair strategies.
