Procurement Report: Survey Instruments

Product Category: Land Surveying Equipment (Total Stations, GNSS Receivers, 3D Scanners, and Associated Field Controllers)

1. Technical Specifications and Performance Metrics

When procuring survey instruments, the selection criteria must align with the precision requirements of the specific project scope. The market generally categorizes instruments by their angular and distance measurement capabilities.

• Angular Measurement Accuracy:

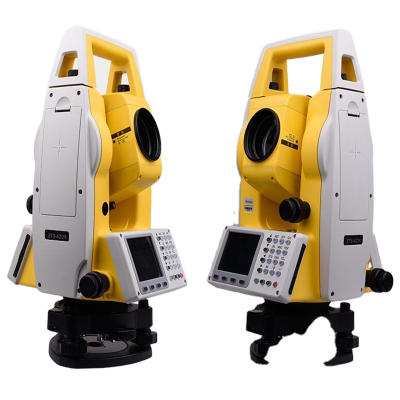

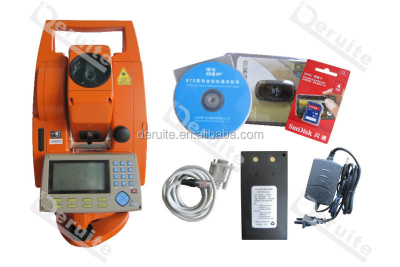

  • High-Precision Total Stations: Typically range from 0.5" to 2" (arc-seconds) for theodolite-grade accuracy.
  • Standard Construction Total Stations: Typically range from 2" to 5".
  • Robotic Total Stations: Often maintain 1" to 2" accuracy with automated tracking capabilities.
• Distance Measurement (EDM):
  • Reflectorless Range: Modern instruments can measure up to 1,000m to 1,500m without a prism, with accuracy typically within ±(2mm + 2ppm).
  • Prism Range: Standard single-prism setups often reach 3,000m to 5,000m with similar ppm-based accuracy.
• GNSS Receiver Performance:
  • RTK Accuracy: Horizontal ±(8mm + 1ppm); Vertical ±(15mm + 1ppm).
  • Static/Post-Processed Accuracy: Can achieve ±(2mm + 0.5ppm) for high-precision geodetic work.
  • Satellite Constellations: Must support multi-constellation (GPS, GLONASS, Galileo, BeiDou) with a minimum of 1,400 channels for urban canyon environments.
• Durability and Environmental Ratings:
  • Ingress Protection (IP): Minimum IP66 (dust-tight and protected against powerful water jets) is standard for field units.
  • Drop Resistance: Typically rated for drops from 1.5m to 2.0m onto concrete.
  • Operating Temperature: Standard range is -20°C to +55°C.

Procurement Recommendation: Prioritize instruments with a minimum IP66 rating and multi-constellation GNSS support to ensure longevity in harsh environments. For high-precision topographic work, do not compromise on angular accuracy below 2".

2. Industry Compliance and Quality Assurance

Survey instruments are critical infrastructure for legal land boundaries, construction alignment, and safety-critical infrastructure. Compliance is not merely about the device but the calibration and traceability of the data it produces.

• Calibration Standards: Instruments must be capable of being calibrated against traceable national standards (e.g., NIST in the US, NPL in the UK).
• ISO Compliance:
  • ISO 17123: Series of standards for surveying instruments (e.g., ISO 17123-2 for total stations, ISO 17123-3 for GNSS). Procurement must verify the manufacturer's compliance with these testing protocols.
  • ISO 9001: Manufacturers should hold this certification for quality management systems.
• Data Integrity: Field controllers and software must support standard data formats (e.g., DXF, CSV, LandXML) to ensure seamless integration with CAD and GIS platforms.
• Warranty and Service: A standard B2B warranty period ranges from 1 to 3 years, with an option for extended service contracts covering annual calibration checks.

Procurement Recommendation: Require a Certificate of Calibration with every unit delivered. Verify that the manufacturer provides a documented service network with a guaranteed response time of 48-72 hours for critical field repairs.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price to include software licensing, consumables, and training.

• Cost Ranges (Estimated B2B):
  • Entry-Level Total Stations: $3,000 – $6,000.
  • High-Precision Robotic Total Stations: $15,000 – $35,000.
  • RTK GNSS Systems (Base + Rover): $12,000 – $25,000 per pair.
  • 3D Laser Scanners: $25,000 – $80,000+.
• Integration Capabilities:
  • Connectivity: Must support Bluetooth 5.0+, Wi-Fi, and 4G/5G for real-time cloud data transfer.
  • Software Ecosystem: Compatibility with major surveying software suites (e.g., Leica Infinity, Trimble Business Center, AutoCAD Civil 3D) is essential.

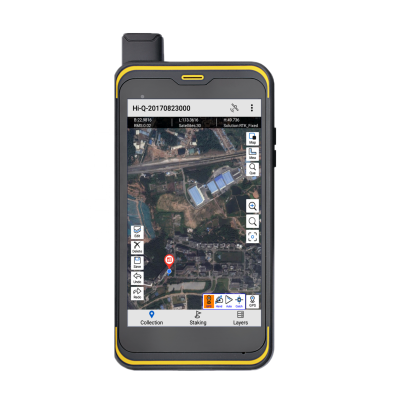

  • Field Controllers: Android-based controllers are preferred for app flexibility, with a minimum of 4GB RAM and 64GB storage for large point cloud datasets.
• Consumables: Budget for prisms, tripods, and batteries. A typical lifecycle for rechargeable batteries is 2-3 years under heavy daily use.

Procurement Recommendation: Opt for a unified ecosystem (e.g., buying instruments and software from the same vendor) to reduce integration friction. Negotiate volume discounts for multi-unit purchases, as B2B pricing often drops by 10-15% for orders of 5+ units.

4. Typical Use Cases

Different surveying tasks require specialized instrument configurations.

• Topographic Mapping: Requires high-speed total stations or 3D scanners to capture millions of points for terrain modeling.
• Construction Staking: Needs robotic total stations with long-range reflectorless capabilities for setting out building grids and utilities.
• Geodetic Control & Monitoring: Requires high-precision GNSS static receivers or robotic total stations with sub-millimeter stability for monitoring dam deformation or bridge settlement.
• As-Built Documentation: 3D laser scanners are essential for capturing complex industrial facilities or historic structures where traditional measurement is impossible.
• Utility Locating: Handheld GNSS or total stations with specific utility detection modules for mapping underground infrastructure.

Procurement Recommendation: Conduct a "Job Site Audit" before purchasing. If the team performs 60% staking and 40% mapping, a hybrid robotic total station is more cost-effective than buying separate scanners and staking tools.

5. Long-Term Planning Considerations

The surveying industry is undergoing a digital transformation driven by automation and digital twins.

• Market Trends:
  • Automation: Shift toward fully robotic instruments that require a single operator, reducing labor costs.
  • Cloud Integration: Real-time data streaming to cloud platforms for collaborative project management.
  • AI Integration: Emerging use of AI for automated feature recognition in point cloud data.
• Obsolescence Risk: Proprietary software formats can lock buyers into specific ecosystems. Plan for open standards (e.g., LandXML) to ensure data portability.
• Scalability: Procure systems that can be upgraded via firmware or add-on modules (e.g., adding a camera module to a total station) rather than replacing the entire unit.
• Demand Signals: There is a rising demand for "Greenfield" development tools and "Brownfield" renovation tools, both requiring high-precision data.

Procurement Recommendation: Invest in modular systems that allow for firmware upgrades. Avoid locking into proprietary, non-standard data formats. Plan for a 5-year technology refresh cycle for field controllers, while instruments may last 7-10 years with proper maintenance.

6. Special Product Recommendations

The following table compares the primary instrument categories to assist in selecting the right tool for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Robotic Total Station | Construction Firms, Civil Contractors | 1" Accuracy, 1.5km Reflectorless, Motorized Tracking | High dependency on battery life and network stability | Ensure the package includes a second battery and a backup manual mode. | | RTK GNSS Rover | Surveying Agencies, Mapping Teams | ±8mm Horizontal, Multi-constellation, 5G/4G Ready | Signal loss in urban canyons or heavy tree cover | Buy a base station and at least two rovers to maintain redundancy. | | 3D Laser Scanner | Engineering Firms, Historic Preservation | 1mm accuracy, 1M+ points/sec, 360° FOV | Large data processing requirements and storage costs | Verify the vendor offers a dedicated workstation or cloud processing service. | | Handheld GNSS | Utility Locators, Forestry | IP67, <1s time-to-first-fix, GPS/GLONASS/Galileo | Lower accuracy (cm to dm level) compared to RTK | Use only for non-cadastral work; verify local regulations on accuracy limits. | | Digital Level | Road Construction, Grading | ±1mm/km accuracy, Barometric compensation | Susceptible to thermal expansion errors | Calibrate annually; ensure the staff rod is made of Invar or carbon fiber. |

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for survey instruments? A: Standard lead times range from 2 to 4 weeks for in-stock items. Custom configurations or specialized high-precision units may require 8 to 12 weeks. Import duties and shipping can add an additional 1-2 weeks for international orders.

Q2: What is the Minimum Order Quantity (MOQ) for B2B procurement? A: Most manufacturers have no strict MOQ for standard models, but significant discounts (10-20%) usually apply for orders of 3 or more units. For custom configurations, the MOQ is typically 1 unit.

Q3: How often should survey instruments be calibrated? A: Industry best practice recommends calibration annually or after 1,000 hours of use, whichever comes first. Instruments used in harsh environments or following a significant impact should be calibrated immediately.

Q4: Can I use third-party software with a specific brand of total station? A: Yes, most modern instruments support standard data formats (DXF, CSV, LandXML). However, proprietary software suites often offer better integration and automation features. Verify compatibility with your existing CAD/GIS software before purchasing.

Q5: What is the expected lifespan of a survey instrument? A: With proper maintenance and calibration, the mechanical and optical lifespan of a total station or GNSS receiver is typically 7 to 10 years. Field controllers (tablets) generally have a shorter lifespan of 3 to 5 years due to battery and software obsolescence.

Q6: Are there specific certifications required for legal boundary surveys? A: While the instrument itself does not need a specific "legal" certification, the calibration certificate must be traceable to national standards. Many jurisdictions require the surveyor to use instruments that meet specific ISO 17123 standards for legal boundary work.

Q7: How do I handle data security when using cloud-connected survey tools? A: Ensure the procurement contract includes data encryption standards (AES-256) and clear terms regarding data ownership. Avoid using public Wi-Fi for transmitting sensitive survey data; utilize private 4G/5G networks or secure VPNs.

Q8: What is the difference between a "Reflectorless" and a "Prism" measurement? A: Reflectorless measurements use the instrument's laser to bounce off a surface, useful for hard-to-reach areas but with a shorter range (up to 1.5km) and lower accuracy in poor weather. Prism measurements use a reflective target, allowing for longer ranges (up to 5km) and higher accuracy, essential for high-precision control networks.
