Procurement Report: Television Cables

Product Category Identification: Coaxial Video Cables (RG6) and High-Speed Digital Video Cables (HDMI). Search Query: "television cable"

1. Technical Specifications and Performance Metrics

Procurement of television cables requires distinguishing between legacy analog transmission (Coaxial) and modern digital transmission (HDMI). The selection depends heavily on the signal type, run length, and resolution requirements.

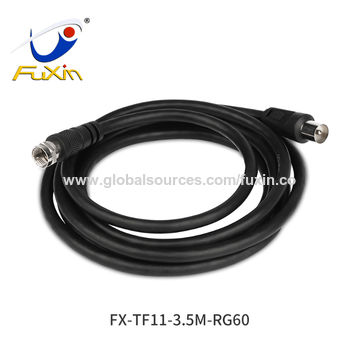

• Coaxial Cables (Analog/RF):

  • Impedance: Must be strictly 75 Ω to prevent signal reflection and degradation.
  • Construction: For runs exceeding 15 meters, RG6 is the industry standard.
  • Shielding: Requires a dual-layer protection system: a foil shield combined with a braided shield. The braid coverage should range between 60% and 95% to ensure optimal rejection of electromagnetic interference (EMI).
  • Attenuation: Select cables with low attenuation rates, specifically looking for values under 5 dB/100m at 1 GHz for long-distance runs.
  • Connector Types: Verify exact connector types (typically F-type) and thread pitch before ordering.

• HDMI Cables (Digital/4K/8K):

  • Bandwidth: Premium cables must support 18 Gbps (HDMI 2.0) to 48 Gbps (HDMI 2.1) for 4K/8K content.
  • Length Constraints: Standard certification for high-speed performance is typically guaranteed up to 1.5m to 2.5m. For extended lengths, specialized active or fiber-optic HDMI cables are required to maintain signal integrity.
  • Features: Must support High Dynamic Range (HDR), Wide Color Gamut, and Audio Return Channel (ARC/eARC).

Actionable Recommendation: For any installation exceeding 15 meters, prioritize RG6 coaxial with 90% braid coverage. For 4K/8K setups, strictly specify cables capable of 48 Gbps bandwidth and verify the connector type matches the source and display devices.

2. Industry Compliance and Quality Assurance

Ensuring compliance is critical for B2B procurement to avoid signal failure and warranty disputes. The industry has moved towards mandatory certification programs for high-resolution content.

• HDMI Certification:

  • Premium Certified: Cables intended for 4K content must carry the Premium HDMI Cable Certification Label. This label verifies compliance with the HDMI 2.0a/2.0b specifications (18 Gbps).
  • Testing Protocols: Certified cables undergo rigorous testing for crosstalk, jitter, and signal loss. Non-certified cables may fail to display 4K content or HDR features, even if they physically connect.
  • Packaging: Compliance requires that the packaging explicitly displays the certification label for verification.
  • Future-Proofing: Emerging standards for 8K (HDMI 2.1) are currently in the final stages of certification development; procurement should target cables designed to meet or exceed these upcoming specifications.

• Coaxial Standards:

  • Adherence to 75 Ω impedance is a non-negotiable industry standard for television signal transmission.
  • Shielding ratios (60–95% braid) are the primary metric for quality assurance in RF environments.

Actionable Recommendation: Do not procure HDMI cables without visible "Premium Certified" labeling for 4K applications. For RF applications, demand datasheets confirming 75 Ω impedance and specific braid coverage percentages. Avoid "universal" or unbranded cables for commercial installations.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in this sector is driven by balancing length, performance, and the risk of rework.

• Cost Drivers:

  • Length: Costs scale non-linearly with length. Standard lengths (1.5m–2.5m) are cost-effective. Extended lengths (5m+) often require active electronics or fiber optics, increasing unit cost by 200–400%.
  • Shielding: Cables with >90% braid coverage typically command a 10–15% premium over standard 60% coverage cables but offer significantly better reliability in high-interference environments.
  • Certification: Certified HDMI cables may cost 15–25% more than non-certified equivalents, but this prevents costly installation failures.

• Integration:

  • Seamless integration requires matching connector types (e.g., Type A for standard HDMI, F-type for coaxial).
  • Compatibility with legacy devices (1080p) and next-gen devices (8K) is a key factor. HDMI 2.1 cables are backward compatible with HDMI 2.0 and 1.4 devices.

Actionable Recommendation: Calculate the total cost of ownership (TCO) including potential rework. For runs under 2.5m, invest in Premium Certified HDMI cables. For runs over 5m, budget for active HDMI or fiber solutions rather than attempting to use passive copper cables, which often fail to meet performance metrics.

4. Typical Use Cases

• Residential Home Theater:
  • Scenario: Connecting 4K/8K TVs to gaming consoles, streaming boxes, or soundbars.
  • Requirement: Premium HDMI cables (1.5m–2.5m) for short runs; RG6 coaxial for satellite/cable TV inputs.
• Commercial Hospitality (Hotels/Conference Rooms):
  • Scenario: Wall-mounted displays and centralized AV distribution.
  • Requirement: High-durability RG6 coaxial with 95% braid coverage for long in-wall runs. HDMI cables must be certified to ensure guest content displays correctly without troubleshooting.
• Broadcast and Production:
  • Scenario: Signal routing in studios.
  • Requirement: Low attenuation RG6 for RF signals; high-bandwidth HDMI 2.1 for 8K monitoring.
• Smart Home Integration:
  • Scenario: Connecting smart TVs to home networks.
  • Requirement: Standard HDMI 2.0/2.1 cables for ARC/eARC functionality to connect to sound systems.

Actionable Recommendation: Match the cable type to the environment. Use heavy-duty, high-braid coaxial for commercial in-wall installations to meet fire and safety codes while ensuring signal integrity. Use certified HDMI for all consumer-facing 4K displays.

5. Long-Term Planning Considerations

• Market Trends:

  • 4K Saturation: The distribution of 4K content is increasing, making certified cables the only way to assure optimal performance.
  • 8K Transition: The industry is moving toward 8K resolution. While 8K certification is in final stages, procurement strategies should prioritize cables designed to meet these upcoming specifications to avoid obsolescence.
  • HDMI 2.1 Adoption: The latest versions of HDMI (2.1) support higher refresh rates and variable refresh rates (VRR), essential for gaming and high-end video.

• Demand Signals:

  • There is a growing demand for "future-proof" cabling that supports 48 Gbps bandwidth.
  • Buyers are increasingly demanding transparency regarding certification labels on packaging.

• Durability and Lifecycle:

  • Coaxial cables typically have a lifespan of 10+ years if shielded correctly.
  • HDMI connectors are subject to wear; procurement should consider gold-plated connectors for high-cycle environments.

Actionable Recommendation: Adopt a "future-proof" procurement policy. Even if current inventory is 4K, stock HDMI 2.1 capable cables to accommodate 8K upgrades. Avoid short-term, non-certified solutions that may become unusable as content standards evolve.

6. Special Product Recommendations

The following table compares the primary cable types available for television procurement, highlighting the best fit for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | RG6 Coaxial | Installers, ISPs, Commercial AV | 75 Ω, 60–95% Braid, Low Attenuation | Verify exact connector type (F-type) and length | Order 90%+ braid for runs >15m; confirm 75 Ω impedance on datasheet. | | Premium HDMI (1.5m–2.5m) | Residential, Hotels, Offices | 18 Gbps, 4K HDR, Premium Certified Label | Check for "Premium" label on packaging | Mandatory for 4K; do not substitute with non-certified cables. | | Extended Length HDMI | Large Venues, Long-Run AV | 48 Gbps (HDMI 2.1), Active/Fiber | Verify active electronics or fiber core | Only use for runs >2.5m; passive copper fails at these lengths. | | 8K Ready HDMI | Early Adopters, Studios | 48 Gbps, 8K@60Hz/120Hz, VRR | Certification status may be "Final Stages" | Buy now for future-proofing; ensure vendor supports upcoming certification. |

Actionable Recommendation: For B2B bulk orders, standardize on RG6 with 90% braid for RF and Premium Certified HDMI for digital. Avoid mixing cable generations (e.g., using HDMI 1.4 for 4K sources) as this creates performance bottlenecks.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum braid coverage required for a reliable television cable? A: For standard residential use, 60% is acceptable, but for commercial or long-run applications, a braid coverage of 90% to 95% is recommended to ensure maximum signal integrity and EMI rejection.

Q2: Why is the Premium HDMI Cable Certification Label necessary? A: The label verifies that the cable has been tested and meets the specific bandwidth and feature requirements (like 4K HDR) set by the HDMI Licensing Administrator. Without it, 4K content may not display correctly.

Q3: Can I use a standard HDMI cable for 8K resolution? A: Standard HDMI cables (HDMI 2.0) cannot support 8K. You must use cables designed for HDMI 2.1 with a bandwidth of 48 Gbps. Note that full 8K certification is currently in the final stages of industry development.

Q4: What is the maximum length for a standard passive HDMI cable? A: Certified passive HDMI cables are typically guaranteed up to 1.5m to 2.5m. For longer distances, you must use active HDMI cables or fiber-optic HDMI cables to prevent signal loss.

Q5: Is RG6 the only coaxial cable type suitable for television? A: RG6 is the industry standard for longer runs due to its lower attenuation. RG59 can be used for very short runs (under 10m), but RG6 is preferred for most professional installations.

Q6: How do I verify the impedance of a coaxial cable? A: The impedance must be 75 Ω. This is a standard specification printed on the cable jacket or datasheet. Deviations from 75 Ω will cause signal reflection and poor picture quality.

Q7: What are the lead time considerations for certified HDMI cables? A: While standard cables are often in stock, specialized 8K or extended-length certified cables may have longer lead times due to the final stages of certification and specialized manufacturing. Plan for 2–4 weeks for specialized orders.

Q8: Do I need to replace all my cables when upgrading to an 8K TV? A: Yes, if you want to utilize the full capabilities of 8K (high refresh rates, HDR), you must replace HDMI 2.0 cables with HDMI 2.1 cables. Coaxial cables for satellite/cable inputs generally do not need replacement unless the signal type changes.
