Procurement Report: Benchtop Tensile Testing Machines

1. Technical Specifications and Performance Metrics

When procuring a benchtop tensile testing machine, the primary focus must be on the machine's ability to deliver consistent data under routine laboratory and production use. The specifications should align with the specific material types being tested, ranging from soft elastomers to high-strength metals.

• Load Capacity: Typical B2B ranges for benchtop systems span from 0.5 kN to 50 kN. Single-column systems are generally preferred for capacities up to 10 kN, while double-column systems are recommended for loads between 10 kN and 50 kN to ensure stability and prevent frame deflection.
• Speed Accuracy: The crosshead speed range typically covers 0.001 mm/min to 1000 mm/min. Precision in speed control is critical for standard-compliant testing, with an accuracy tolerance of ±1% of reading or better.
• Force Accuracy: To ensure data integrity for certification, the force measurement system should maintain an accuracy of ±0.5% of the reading across the full scale.
• Displacement Resolution: High-resolution encoders are essential, typically offering a resolution of 0.01 mm or 0.001 mm depending on the application.
• Frame Construction: Benchtop units should feature a rigid, precision-machined frame. Double-column designs offer superior alignment and rigidity, reducing the risk of eccentric loading.

Procurement Recommendation: Select a machine with a load cell capacity that allows you to test within the 10% to 90% range of the cell's maximum capacity for optimal accuracy. Verify that the software supports real-time data logging and has the capability to export data in formats required by your specific industry standards (e.g., CSV, XML).

2. Industry Compliance and Quality Assurance

In the UK and European markets, compliance is not merely a formality but a continuous audit requirement. Procurement decisions must prioritize equipment that supports adherence to ASTM, ISO, BS, and UKCA standards.

• Standard Compliance: The machine must be pre-configured or easily adaptable to run tests according to ASTM D638 (plastics), ISO 527 (plastics/rubbers), BS EN 10002 (metallic materials), and ASTM D412 (rubber).
• Calibration Services: A critical component of quality assurance is the availability of traceable calibration services. The supplier must offer calibration certificates traceable to national standards (e.g., NPL in the UK) with a typical validity period of 12 months.
• Software Validation: Ensure the testing software includes validation features (21 CFR Part 11 compliance for pharmaceuticals if applicable) and regular update cycles to accommodate evolving testing standards.
• UKCA & CE Marking: For the UK market, verify that the equipment carries the UKCA mark and CE marking, indicating conformity with health, safety, and environmental protection standards.

Procurement Recommendation: Do not purchase a machine solely based on hardware specs. Mandate a "Compliance Package" in your contract that includes initial calibration, a schedule for annual recalibration, and a guarantee that the software will be updated to reflect the latest versions of ASTM, ISO, and BS standards.

3. Cost Efficiency and Integration Capabilities

While the initial purchase price is a factor, the Total Cost of Ownership (TCO) over a 5-10 year lifespan is the more significant metric. Cost efficiency is derived from reliability, low maintenance, and integration capabilities.

• Initial Cost Range: Typical B2B pricing for a complete benchtop tensile testing system (machine, software, load cell, grips) ranges from £15,000 to £60,000, depending on load capacity and automation features.
• Operational Costs: Expect annual maintenance and calibration costs to be approximately 5% to 8% of the initial capital expenditure.
• Integration: Modern systems should offer OPC UA, Modbus, or Ethernet connectivity to integrate with Laboratory Information Management Systems (LIMS) or Manufacturing Execution Systems (MES).
• Energy Efficiency: Look for servo-motor systems that offer energy-saving modes during idle periods, reducing power consumption by 15-20% compared to older hydraulic or AC motor systems.

Procurement Recommendation: Prioritize suppliers who offer a "Total Care" package. This should include a defined service level agreement (SLA) with a response time of <24 hours for critical failures. Evaluate the cost of spare parts availability; a machine with a 5-year parts guarantee offers better long-term cost efficiency than a cheaper unit with a 1-year guarantee.

4. Typical Use Cases

Benchtop tensile testing machines are versatile assets used across various sectors where material integrity is paramount.

• Rubber & Elastomers: Testing of O-rings, seals, and rubber compounds for elongation at break, tensile strength, and modulus. This is a high-demand application in the UK automotive and aerospace sectors.
• Plastics & Polymers: Evaluation of injection-molded parts, films, and sheets for yield strength and ductility.
• Textiles & Fibers: Testing of yarns, fabrics, and non-woven materials for tensile properties and seam strength.
• Adhesives & Coatings: Measuring the bond strength of tapes, glues, and surface coatings.
• Medical Devices: Testing of sutures, catheters, and packaging materials to ensure they meet strict safety regulations.

Procurement Recommendation: Identify the primary material type you will test most frequently. If your workflow involves a mix of soft materials (rubber) and stiff materials (metals), opt for a dual-column system with a wide load range and a modular grip system that allows for quick tooling changes without compromising alignment.

5. Long-Term Planning Considerations

Procuring tensile testing equipment is a long-term quality assurance asset, not a one-time purchase. The market is shifting towards higher automation and stricter regulatory scrutiny.

• Market Trends: There is a growing demand for automated testing and remote monitoring capabilities. Suppliers are increasingly integrating AI-driven anomaly detection in software to predict material failures before they occur.
• Regulatory Evolution: UK and EU regulations are tightening regarding UKCA and CE compliance. Delays in service or lack of support can directly impact production timelines and certification outcomes.
• Scalability: Ensure the machine architecture allows for the addition of accessories (e.g., extensometers, environmental chambers, fatigue modules) as testing requirements expand.
• Supplier Reliability: The credibility and long-term reliability of the supplier are critical. A dependable supplier ensures continuity in calibration services, spare parts availability, and technical guidance.

Procurement Recommendation: Select a supplier with a proven track record of installations across Europe and strong UK market adoption. Verify their ability to provide software updates for at least 5 years post-purchase. Avoid suppliers who cannot demonstrate a robust supply chain for spare parts, as this poses a risk to production continuity.

6. Special Product Recommendations

The following table compares the two primary configurations of benchtop tensile testing machines to assist in selecting the right asset for your specific needs.

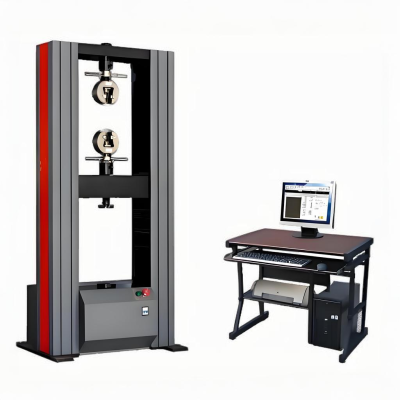

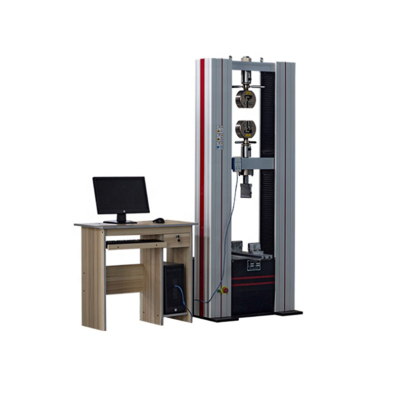

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Single-Column System | Small labs, R&D, low-volume production | Load: 0.5–10 kN; Speed: 0.001–500 mm/min; Compact footprint | Lower rigidity; potential for frame deflection at high loads | Ideal for soft materials (rubber, plastics). Ensure the base is heavy enough to prevent vibration. | | Double-Column System | High-volume production, QC labs, heavy materials | Load: 10–50 kN; Speed: 0.001–1000 mm/min; High rigidity | Higher initial cost; larger footprint | Recommended for metals, composites, and high-force applications. Superior alignment reduces data error. | | Universal Testing Machine (UTM) | Multi-material facilities | Load: 0.5–50 kN; Modular grips; LIMS integration | Complex setup; requires trained operators | Best for facilities testing diverse materials. Prioritize software compatibility with your existing LIMS. |

Procurement Recommendation: For facilities expecting to test both soft elastomers and rigid plastics, a Double-Column Universal Testing Machine is the most future-proof investment. It offers the necessary rigidity for high-force tests while maintaining the precision required for low-force applications.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a benchtop tensile testing machine in the UK? A: Typical B2B lead times range from 4 to 8 weeks for standard configurations. Customized systems with specific grips or environmental chambers may require 10 to 12 weeks.

Q2: How often should the machine be calibrated? A: Industry best practice and most accreditation bodies (like UKAS) recommend calibration every 12 months. However, high-frequency use or harsh environments may necessitate calibration every 6 months.

Q3: Can I integrate this machine with my existing LIMS? A: Yes, most modern benchtop systems support standard communication protocols like OPC UA or Ethernet/IP. However, you must confirm specific integration capabilities with the supplier during the pre-sales phase.

Q4: What is the difference between a single-column and double-column system? A: Single-column systems are compact and cost-effective for lower loads (up to 10 kN) and softer materials. Double-column systems offer superior rigidity and alignment, making them essential for higher loads (10–50 kN) and stiffer materials to prevent frame deflection.

Q5: Do these machines support UKCA and CE marking requirements? A: Reputable suppliers in the UK market provide machines that are fully compliant with UKCA and CE marking requirements, ensuring they meet current health, safety, and environmental standards.

Q6: What happens if a spare part is out of stock? A: A reliable supplier should guarantee spare parts availability for at least 5 to 10 years after the model is discontinued. Always verify the supplier's parts inventory policy before signing the contract.

Q7: Is software training included in the purchase price? A: Typically, basic software training and installation are included. Advanced training for complex testing protocols or LIMS integration may be offered as an optional add-on service.

Q8: How do I ensure the machine remains accurate over time? A: Accuracy is maintained through regular calibration, proper maintenance (lubrication, cleaning), and adherence to the manufacturer's operating guidelines. Using the machine within its specified load range (10-90% of capacity) is also critical for longevity.
