Procurement Report: Power Transformers

1. Technical Specifications and Performance Metrics

When specifying power transformers for procurement, the primary focus must be on defining the electrical and physical parameters that align with the specific grid or facility requirements. Based on industry standards, the following parameters are critical for defining the product scope:

• Voltage Ratings: Primary and secondary voltages must be specified in kV (e.g., 11/0.415 kV, 33/11 kV). Typical B2B ranges for distribution transformers are 11kV–33kV primary, while transmission units often exceed 132kV.
• Power Rating: Capacity is measured in kVA or MVA. Typical B2B ranges for industrial distribution units are 50 kVA to 2,500 kVA, while utility-scale units range from 50 MVA to 500+ MVA.
• Frequency: Standard operating frequencies are 50 Hz or 60 Hz. Deviations require custom winding designs.
• Insulation Class & Temperature Rise: Insulation classes (e.g., Class A, B, F, H) dictate thermal limits. Typical temperature-rise limits are 55°C to 65°C for oil-immersed units and 125°C to 150°C for dry-type units.
• Dielectric Withstand: The unit must withstand specific impulse and power frequency voltage levels (e.g., 75 kV to 200 kV depending on voltage class) without breakdown.
• Mounting Dimensions: Physical footprint and terminal configurations must match existing substation or panel layouts.

Actionable Recommendation: Do not rely on generic "standard" ratings. Explicitly define the primary/secondary voltage, power rating, frequency, insulation class, temperature-rise limit, dielectric withstand, and mounting dimensions in your Request for Quotation (RFQ). This prevents scope creep and ensures the supplier designs a unit that fits your specific operational environment.

2. Industry Compliance and Quality Assurance

Compliance is not optional; it is the primary gatekeeper for delivery and installation. Power transformers are critical assets where non-compliance can lead to grid instability or catastrophic failure.

• Testing Standards: Transformers must undergo type tests, routine tests, and special tests as defined by IEC 60076, IEEE C57, or ANSI standards.
• Required Documentation:
  • Type Test Certificates: Verify design performance (dielectric strength, short-circuit withstand).
  • Routine Test Certificates: Confirm every unit meets manufacturing tolerances.
  • Factory Acceptance Test (FAT) Reports: Provide evidence of pre-shipment performance.
  • Third-Party Inspection Reports: Independent verification of safety and compliance.
• Performance Verification: These documents must explicitly verify dielectric strength, load/no-load losses, temperature rise, and short-circuit withstand capacity.

Actionable Recommendation: Qualify suppliers by demanding a complete package of routine and type test reports matched to your operating environment. Do not accept delivery without Factory Acceptance Test (FAT) reports and Type Test Certificates. Verify that the testing methodology aligns with IEC 60076 or IEEE C57 to ensure the transformer will operate reliably once energized.

3. Cost Efficiency and Integration Capabilities

While the initial purchase price is a factor, the Total Cost of Ownership (TCO) is driven by efficiency losses and integration complexity.

• Efficiency Metrics: Look for units with low no-load (core) and load (copper) losses. High-efficiency units typically offer 0.5% to 1.5% lower losses compared to standard models, significantly reducing operational costs over a 20-30 year lifespan.
• Integration: The transformer must be compatible with existing protection relays, cooling systems, and switchgear.
• Cost Ranges (Typical B2B):
  • Small Distribution (50-250 kVA): $2,000 – $8,000
  • Medium Distribution (500-2,500 kVA): $15,000 – $60,000
  • Large Power (50-200 MVA): $200,000 – $1,500,000+
• Lead Time: Typical B2B lead times range from 8 to 20 weeks depending on voltage class and customization.
• MOQ: Usually 1 unit per order, but volume discounts apply for 5+ units.

Actionable Recommendation: Prioritize efficiency ratings over the lowest upfront cost. Calculate the ROI based on energy savings from reduced no-load and load losses. Ensure the supplier can provide a seamless integration plan, including terminal compatibility and cooling system matching, to minimize installation downtime.

4. Typical Use Cases

Transformers are ubiquitous in the power ecosystem, serving as the backbone for energy transfer.

• Generation: Stepping up voltage from generators (e.g., 11-25 kV) to transmission levels (e.g., 132-765 kV).
• Transmission: Interconnecting different voltage levels in high-voltage networks to minimize line losses.
• Distribution: Stepping down high transmission voltage to usable levels for commercial and residential end-users (e.g., 33 kV to 415 V).
• Industrial Facilities: Providing isolated power for heavy machinery, HVAC systems, and manufacturing lines.
• Renewable Energy Integration: Connecting solar farms and wind turbines to the grid, often requiring specialized units with specific harmonic handling capabilities.

Actionable Recommendation: Select the transformer topology based on the specific use case. For renewable integration, verify the unit's ability to handle variable input frequencies and harmonics. For industrial applications, prioritize units with high short-circuit withstand capacity to protect against motor starting surges.

5. Long-Term Planning Considerations

The procurement of transformers is a long-term investment requiring strategic foresight regarding grid evolution and asset lifecycle.

• Market Trends: There is a growing demand for smart transformers equipped with sensors for real-time monitoring of oil temperature, dissolved gas analysis (DGA), and load conditions.
• Sustainability: Buyers are increasingly specifying low-loss cores and recyclable insulation materials to meet ESG goals.
• Grid Stability: As grids become more decentralized, transformers must support bidirectional power flow and voltage regulation.
• Lifecycle: Typical B2B durability ranges from 25 to 40 years. Planning for end-of-life recycling and replacement costs is essential.
• Demand Signals: Rising global electrification and the expansion of EV charging infrastructure are driving demand for higher capacity distribution transformers.

Actionable Recommendation: Future-proof your procurement by selecting units with "smart" monitoring interfaces (e.g., IEC 61850 compatibility) to facilitate predictive maintenance. Consider the environmental impact of the insulation oil and core materials to align with long-term sustainability mandates.

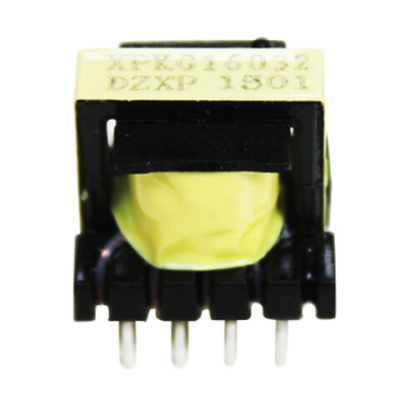

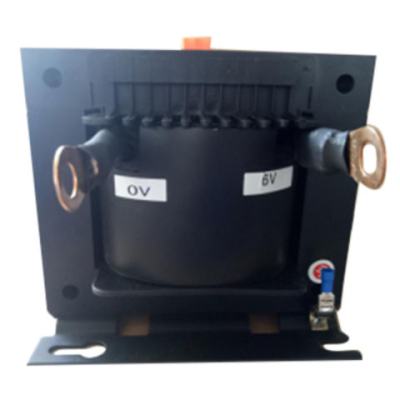

6. Special Product Recommendations

7. Frequently Asked Questions (FAQ)

Q1: What specific certifications are mandatory for a power transformer to be accepted for delivery? A: Transformers must undergo type tests, routine tests, and special tests as defined by IEC 60076, IEEE C57, or ANSI standards. You must receive Factory Acceptance Test (FAT) reports, Routine Test Certificates, Type Test Certificates, and Third-Party Inspection Reports. Without these, the unit cannot be cleared for installation.

Q2: How do I verify the temperature rise limits of a transformer? A: Check the Type Test Certificate for the specific temperature-rise limit (typically 55°C–65°C for oil-immersed, 125°C–150°C for dry-type). Ensure the insulation class (e.g., Class F or H) matches the operational thermal environment.

Q3: What is the typical lead time for a custom high-voltage transformer? A: Typical B2B lead times range from 8 to 20 weeks. High-voltage or custom-rated units (e.g., >132 kV) may require longer due to specialized testing and manufacturing processes.

Q4: Can a transformer operate safely without a Type Test Certificate? A: No. A single non-compliant transformer can lead to grid instability, excessive losses, or catastrophic accidents. Type Test Certificates verify dielectric strength and short-circuit withstand capacity, which are critical for safety.

Q5: What is the difference between routine tests and type tests? A: Type tests are performed on a representative sample to validate the design (e.g., dielectric strength, temperature rise). Routine tests are performed on every single unit before shipment to ensure manufacturing consistency (e.g., turns ratio, winding resistance).

Q6: How do I ensure the transformer fits my existing substation? A: Specify the mounting dimensions and terminal configurations in your RFQ. The supplier must provide detailed mechanical drawings confirming the footprint and connection points match your site requirements.

Q7: What are the risks of buying a transformer with low efficiency ratings? A: Low efficiency leads to higher no-load and load losses, resulting in increased operational costs and excessive heat generation. Over a 25-year lifespan, this can cost significantly more than the initial savings on the purchase price.

Q8: How often should a transformer undergo maintenance testing? A: While not a procurement spec, industry practice suggests routine dissolved gas analysis (DGA) and oil testing annually for oil-immersed units, and visual/thermal inspections every 6 months for dry-type units, to ensure long-term reliability.
