Procurement Report: Transmission Gearbox

Product Category: Industrial and Automotive Transmission Gearboxes Date: October 26, 2023 Scope: Sourcing, technical evaluation, and strategic procurement guidelines for transmission gearboxes across light, medium, and heavy-duty applications.

---

1. Technical Specifications and Performance Metrics

When sourcing transmission gearboxes, the primary selection criteria must align the architecture with the specific vehicle segment, target torque, input speed, and duty cycle. The following metrics define the baseline for B2B procurement:

• Gear Ratio Ranges:

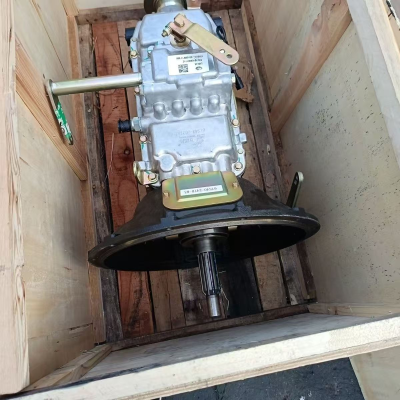

  • Manual (Light-Duty): 5–6 speeds, ratios typically spanning 3.5:1 (1st gear) to 0.8:1 (overdrive).
  • DCT/CVT (Comfort/Passenger): Variable ratios; CVT offers a continuous range (e.g., 0.4:1 to 3.0:1) for seamless acceleration.
  • Heavy-Duty/Planetary (Trucks/Buses): 12–16 speeds, with torque multipliers ranging from 15:1 to 40:1 depending on the planetary stage configuration.
• Torque Capacity:
  • Light-Duty: 150 – 400 Nm.
  • Medium-Duty: 400 – 1,200 Nm.
  • Heavy-Duty: 1,500 – 5,000+ Nm.
• Input Speed:
  • Standard internal combustion engine (ICE) inputs: 1,500 – 6,000 RPM.
  • Electric Vehicle (EV) inputs: 10,000 – 20,000 RPM (requiring high-speed planetary designs).
• Efficiency and Duty Cycle:
  • Efficiency: Modern gearboxes achieve 94% – 98% mechanical efficiency.
  • Duty Cycle: Continuous duty (100%) for industrial applications; intermittent duty (S3–S5) for commercial transport.
  • Thermal Management: Operating temperature range typically -40°C to +120°C (internal oil temp).

Actionable Recommendation: Procurement teams must first define the load class before requesting quotes. Do not accept a generic "standard" gearbox for heavy-duty applications. Specify the exact peak torque and continuous duty cycle in the Request for Quotation (RFQ) to ensure the selected architecture (e.g., reinforced planetary vs. standard helical) matches the operational stress.

---

2. Industry Compliance and Quality Assurance

Quality in gearbox manufacturing is governed by rigorous standards that ensure longevity and safety. Procurement must verify adherence to the following frameworks:

• AGMA Standards (American Gear Manufacturers Association):
  • AGMA 9000 Series: Governs rating and performance validation.
  • AGMA 2000 Series: Defines quality grades for gear teeth (e.g., AGMA Class 10–14 for high-precision automotive applications).
• EU Machinery Directive 2006/42/EC:
  • Mandatory for all gearboxes and geared motors sold within the European Union. Compliance ensures safety regarding transmission elements, guarding, and noise emission limits.
• ISO 9001:
  • Essential for the manufacturer's Quality Management System (QMS).
• Noise, Vibration, and Harshness (NVH):
  • Target noise levels: <75 dB(A) at 1 meter for passenger applications; <85 dB(A) for industrial.

Actionable Recommendation: Require a Certificate of Conformity (CoC) referencing specific AGMA quality grades and EU Directive 2006/42/EC compliance for all orders. Do not rely on verbal assurances. For critical applications, mandate a third-party audit of the manufacturer's gear manufacturing process to verify surface hardening and tooth profile accuracy.

---

3. Cost Efficiency and Integration Capabilities

Cost efficiency extends beyond the unit price to include total cost of ownership (TCO), integration time, and maintenance.

• Cost Structure (Typical B2B Ranges):
  • Light-Duty Manual: $150 – $450 per unit (MOQ: 500+).
  • DCT/CVT: $800 – $2,500 per unit (MOQ: 1,000+).
  • Heavy-Duty Planetary: $3,000 – $15,000+ per unit (MOQ: 50–100).
• Lead Times:
  • Standard Stock: 2 – 4 weeks.
  • Customized/Engineered: 8 – 16 weeks.
• Integration Capabilities:
  • Mounting: Standard SAE J620 or ISO 9409 flange interfaces.
  • Input/Output: Spline compatibility (e.g., SAE 20, 30, 40) or hollow shaft options.
  • Control: CAN Bus (ISO 11898) integration for automated gearboxes.

Actionable Recommendation: Prioritize suppliers offering modular designs that allow for quick adaptation to different vehicle platforms. When evaluating cost, calculate the TCO over a 5-year period, factoring in a 15–20% premium for high-efficiency units that reduce fuel/energy consumption by 3–5%. Verify that the supplier provides CAD models and mounting templates to minimize integration engineering costs.

---

4. Typical Use Cases

Gearbox selection is highly application-dependent. The following scenarios represent the primary market segments:

1. Light-Duty Passenger Vehicles:
   • Requirement: Fuel efficiency, smooth shifting, low NVH.
   • Solution: 6-speed Manual or 8-speed Automatic/DCT.
2. Commercial Trucks and Buses:
   • Requirement: High torque multiplication, durability under heavy loads, extended service intervals.
   • Solution: Reinforced heavy-duty manual or automated manual transmissions (AMT) with 12+ speeds.
3. Industrial Machinery (Conveyors, Mixers):
   • Requirement: High overload capacity, constant torque, 24/7 operation.
   • Solution: Helical or Bevel-Helical planetary gearboxes with IP65+ protection.
4. Electric Mobility (EVs/Hybrids):
   • Requirement: High input RPM, compact size, single-speed or 2-speed reduction.
   • Solution: Integrated electric drive units (E-axles) with planetary reduction gears.

Actionable Recommendation: Match the duty cycle explicitly to the use case. For industrial conveyors, specify a service factor of 1.5–2.0 above the calculated load. For EVs, ensure the gearbox is rated for the specific high-RPM electric motor characteristics to prevent premature bearing failure.

---

5. Long-Term Planning Considerations

Strategic procurement must account for evolving market trends and regulatory shifts.

• Electrification Trend:
  • Demand is shifting from multi-speed ICE gearboxes to single-speed or 2-speed planetary units for EVs. Procurement plans should anticipate a 30–40% reduction in traditional multi-gear orders over the next 5 years.
• Sustainability and Recycling:
  • New regulations require gearboxes to be easily disassembled for material recovery. Look for designs using recyclable aluminum alloys and bio-based lubricants.
• Supply Chain Resilience:
  • Raw material volatility (steel, copper) affects pricing. Secure long-term agreements (LTAs) with suppliers who demonstrate vertical integration in gear blank manufacturing.
• Digitalization:
  • Increasing demand for "Smart Gearboxes" with embedded sensors for predictive maintenance (vibration and temperature monitoring).

Actionable Recommendation: Develop a hybrid sourcing strategy that maintains inventory of legacy ICE gearboxes while simultaneously qualifying suppliers for EV-compatible planetary units. Engage with suppliers early regarding their roadmap for predictive maintenance integration to future-proof your fleet or product line.

---

6. Special Product Recommendations

The following table compares key gearbox architectures to assist in rapid selection based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Manual (5-6 Speed) | Light-Duty Auto Manufacturers | Torque: 150-400 Nm; Efficiency: 96% | High NVH risk if not tuned | Verify shift linkage compatibility; check for synchronized gears. | | DCT (Dual Clutch) | Premium Passenger EV/ICE | Torque: 250-600 Nm; Shift: <100ms | Thermal management complexity | Require detailed cooling system specs; validate clutch life cycles. | | Planetary (Heavy-Duty) | Truck, Bus, Industrial | Torque: 1,500-5,000+ Nm; Ratio: 15:1+ | High initial cost; complex repair | Demand AGMA Class 12+ verification; confirm lubrication system redundancy. | | Integrated E-Axle | EV Startups/OEMs | Input: 10k-20k RPM; Compact | High RPM bearing failure | Validate thermal limits; ensure motor-gearbox interface standardization. |

Actionable Recommendation: For high-volume buyers, negotiate volume-based pricing tiers with a 2% annual reduction clause. For low-volume/custom projects, insist on a prototype validation phase (PV) before mass production to mitigate design risks.

---

7. Frequently Asked Questions (FAQ)

Q1: What is the standard lead time for a custom-designed heavy-duty gearbox? A: Typical B2B lead times for custom heavy-duty gearboxes range from 8 to 16 weeks, depending on the complexity of the planetary stage and the availability of raw materials. Standard stock units are typically available within 2–4 weeks.

Q2: How do I determine the correct AGMA quality grade for my application? A: For passenger vehicles and high-speed industrial applications, AGMA Class 10–14 is recommended to ensure low noise and high precision. For heavy-duty trucks and low-speed industrial machinery, Class 8–10 is often sufficient and more cost-effective.

Q3: Are transmission gearboxes compliant with the EU Machinery Directive? A: Yes, all gearboxes and geared motors intended for the EU market must comply with EU Machinery Directive 2006/42/EC. Procurement must require a Declaration of Conformity (DoC) from the supplier as proof of compliance.

Q4: What is the typical service factor for industrial conveyor gearboxes? A: For continuous duty (24/7) industrial applications, a service factor of 1.5 to 2.0 is standard to account for shock loads and potential overloads. For intermittent duty, a factor of 1.2 to 1.5 is typically adequate.

Q5: Can standard automotive gearboxes be used in electric vehicles? A: Generally, no. EVs operate at significantly higher input speeds (10,000–20,000 RPM) and require different lubrication and bearing specifications. Procurement should seek dedicated EV transmission units or integrated e-axles designed for high-RPM operation.

Q6: What is the minimum order quantity (MOQ) for custom gearboxes? A: MOQs vary by supplier but typically range from 50 units for heavy-duty custom units to 500+ units for light-duty standardized models. Some suppliers may offer lower MOQs (10–20 units) at a premium price for prototype runs.

Q7: How is the efficiency of a gearbox measured? A: Efficiency is measured as the ratio of output power to input power. Modern high-quality gearboxes typically achieve 94% to 98% efficiency per stage. Procurement should request efficiency curves at various load points, not just a single peak number.

Q8: What maintenance intervals are typical for heavy-duty truck gearboxes? A: With synthetic lubricants, modern heavy-duty gearboxes often support 100,000 to 500,000 miles (or 1–3 years) between oil changes, depending on the duty cycle. Always verify the manufacturer's specific service manual for the exact interval.
