Procurement Report: Bourns 3266 Series Trimming Potentiometers

1. Technical Specifications and Performance Metrics

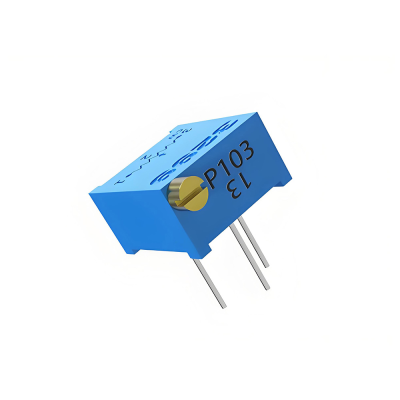

The Bourns 3266 series represents a high-precision, multiturn cermet trimming potentiometer designed for industrial applications requiring stable, repeatable adjustments. The core performance metrics are defined by its mechanical resolution and electrical stability.

• Rotational Life & Durability: The component is rated for 200 cycles of full rotational life. While this may seem low compared to wirewound counterparts, it is standard for high-resolution cermet elements where the primary use is fine-tuning rather than frequent switching.
• Turns and Resolution: The series features 12 turns of rotation to achieve full resistance range. This high turn count allows for extremely fine adjustments, essential for calibrating sensitive circuits where a single turn would cause a significant resistance jump.
• Resistance Range: Available in a broad spectrum from 10 Ω to 1 MΩ, covering most standard calibration needs.
• Power Rating: The standard power dissipation is 0.25 W. Procurement teams must ensure the application circuit does not exceed this limit to prevent thermal drift or element failure.
• Tolerance: Typical tolerance is 10%, though tighter tolerances (e.g., 5% or 2%) may be available depending on specific sub-series configurations (e.g., 3266X).
• Mounting & Construction: Designed for through-hole mounting with standoffs that facilitate thorough PC board washing, ensuring no flux residue remains near the adjustment mechanism.

Actionable Recommendation: For applications requiring high-resolution calibration in a static environment (e.g., final product testing), the 12-turn cermet mechanism is superior. However, if the application involves frequent manual adjustment by field technicians, consider the lower turn count of the 3296 series or verify if the 200-cycle life is sufficient for the expected maintenance schedule.

2. Industry Compliance and Quality Assurance

The 3266 series is engineered to meet rigorous environmental and safety standards required for modern electronics manufacturing.

• Environmental Compliance: The components are RoHS compliant, ensuring they are free of restricted hazardous substances (Lead, Mercury, Cadmium, etc.), which is a mandatory requirement for most global markets.
• Sealing and Protection: The unit is sealed, protecting the internal cermet element from dust, moisture, and contaminants. This is critical for industrial environments where PCB washing is standard practice.
• Packaging Standards: The series is available in tape and reel packaging, which supports automated surface mount or through-hole insertion machinery, reducing manual handling errors and increasing line efficiency.
• Quality Assurance: The "Standoffs" feature specifically addresses quality assurance by allowing the PCB to be washed thoroughly without damaging the potentiometer shaft or housing, ensuring long-term reliability in harsh conditions.

Actionable Recommendation: Verify that the specific part number ordered includes the "LF" (Lead-Free) suffix if strict RoHS compliance is required for your region. Ensure your assembly line's washing process is compatible with the sealed housing design to maximize the benefit of the standoff mounting.

3. Cost Efficiency and Integration Capabilities

While specific unit costs fluctuate based on volume and supplier, the 3266 series offers a balanced cost-to-performance ratio for precision applications.

• Cost Efficiency: As a standard industrial component, the 3266 series benefits from economies of scale.
  • Typical B2B Unit Cost Range: $0.40 – $1.20 USD per unit (estimated based on industry standards for 12-turn cermet trimmers).
  • MOQ (Minimum Order Quantity): Typically 1,000 units for standard tape-and-reel pricing; lower quantities (e.g., 100 units) are available but at a premium (approx. 20-30% higher).
• Integration Capabilities:
  • PCB Footprint: Standard through-hole footprint compatible with standard drilling and wave soldering (if applicable) or manual soldering.
  • Automation: Tape and reel availability allows for direct integration into automated pick-and-place machines, reducing labor costs.
  • Washability: The design supports high-speed PCB cleaning processes, reducing the risk of post-assembly defects.

Actionable Recommendation: For high-volume production runs, order in tape-and-reel format to minimize handling time and ensure consistent placement. For prototyping or low-volume runs, purchase in cut-tape or bulk to avoid the high MOQ penalty, but be prepared for a higher per-unit cost.

4. Typical Use Cases

The 3266 series is specifically engineered for applications where precision calibration is required once or infrequently after manufacturing.

• Industrial Control Systems: Used in PLCs and motor drives to calibrate sensor inputs or gain settings.
• Medical Devices: Ideal for fine-tuning analog front-ends in diagnostic equipment where drift must be minimized.
• Test and Measurement Equipment: Used in oscilloscopes and multimeters for zeroing and span adjustments.
• Power Supply Modules: Calibrating voltage references and current limits in switching power supplies.
• Automotive Electronics: Used in non-critical calibration points within engine control units (ECUs) or sensor interfaces where high vibration resistance is needed.

Actionable Recommendation: Select the 3266 series for "set-and-forget" calibration scenarios. Do not use this component in applications requiring frequent user adjustment (e.g., volume knobs), as the 12-turn mechanism is too slow and the 200-cycle life is insufficient for high-frequency interaction.

5. Long-Term Planning Considerations

Procurement strategies for the 3266 series must account for market trends and component lifecycle management.

• Market Demand Signals: There is a steady demand for high-precision trimmers in the industrial IoT and medical sectors. However, the shift toward digital potentiometers (digipots) is increasing. While digital solutions offer remote calibration, they lack the analog simplicity and cost-effectiveness of the 3266 for simple voltage reference trimming.
• Supply Chain Stability: As a Bourns product, the 3266 series generally has a stable supply chain. However, lead times can vary between 8 to 12 weeks for standard orders during peak demand periods.
• Lifecycle Management: The 200-cycle rotational life is a limiting factor for long-term maintenance. If a product is expected to be serviced frequently in the field, the procurement strategy should include a risk assessment for potential failure of the trimmer during maintenance.
• Sustainability: The RoHS compliance and sealed design align with increasing global regulations regarding electronic waste and environmental safety.

Actionable Recommendation: Develop a dual-sourcing strategy or maintain a safety stock of 3-6 months of inventory for critical production lines. Monitor the adoption of digital alternatives in your specific application sector; if your design is migrating to digital control, consider transitioning to a digital potentiometer for future revisions to reduce physical component count.

6. Special Product Recommendations

The following table compares the 3266 series with related alternatives to assist in selecting the right component for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Bourns 3266 (Cermet) | Industrial/Medical Calibration | 12 Turns, 0.25W, 10Ω-1MΩ, Sealed | Low (Standard) | Best for high-precision, infrequent adjustment. Order tape-and-reel for volume. | | Bourns 3296 (Cermet) | General Consumer Electronics | 10-25 Turns, 0.5W, High Torque | Medium (Higher Cost) | Choose if higher power rating (0.5W) or different shaft size is needed. | | Wirewound Trimmers | High Power/High Stability | 1-10 Turns, >1W, Low Noise | High (Coarse Resolution) | Avoid for fine-tuning; use only for high-power, coarse adjustments. | | Digital Potentiometers | IoT/Remote Control Systems | SPI/I2C Interface, 256 Steps, Non-Volatile | Medium (Complexity) | Consider for future-proofing if remote calibration is required. |

Actionable Recommendation: If your design requires a higher power rating (above 0.25W) or a different shaft configuration, evaluate the 3296 series immediately. For applications requiring remote calibration without physical access, begin prototyping with Digital Potentiometers to assess the feasibility of migrating away from mechanical trimmers.

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum power dissipation for the 3266 series? A: The standard power rating is 0.25 W. Exceeding this limit can cause thermal drift or permanent damage to the cermet element.

Q2: How many turns does the 3266 potentiometer have? A: The 3266 series features 12 turns of rotation, providing high resolution for fine-tuning circuits.

Q3: Is the 3266 series suitable for automated assembly? A: Yes, it is available in tape and reel packaging, making it compatible with automated pick-and-place machines.

Q4: Can the 3266 be washed after PCB assembly? A: Yes, the design includes standoffs and a sealed housing specifically to allow for thorough PC board washing without damaging the component.

Q5: What is the typical resistance range available? A: The series covers a range from 10 Ω to 1 MΩ, allowing for versatile calibration needs.

Q6: Is the 3266 RoHS compliant? A: Yes, the 3266 series is RoHS compliant, meeting environmental standards for restricted hazardous substances.

Q7: How many adjustment cycles can the 3266 withstand? A: The rotational life is rated for 200 cycles. This is sufficient for factory calibration but not for frequent field adjustments.

Q8: What is the typical lead time for this component? A: While specific lead times vary by distributor, typical B2B lead times for this standard industrial component range from 8 to 12 weeks for bulk orders.
