Procurement Report: Universal Testing Machines (UTM)

Product Category: Industrial Testing Equipment / Materials Characterization Systems

1. Technical Specifications and Performance Metrics

When procuring a Universal Testing Machine (UTM), the primary focus must be on force capacity, frame rigidity, and control precision. Based on industry standards and typical B2B configurations, the following parameters define a robust procurement baseline:

• Force Capacity: Standard models typically range from 1 kN to 100 kN for general materials testing, while heavy-duty industrial units can exceed 2,000 kN. For most polymer and metal alloy testing, a 10 kN to 100 kN range is the industry sweet spot.
• Test Speeds: Precision control is critical. Acceptable speed ranges should span from 0.001 mm/min to 2,000 mm/min. High-speed applications (e.g., impact or dynamic testing) require specific servo-hydraulic or high-speed electromechanical drives.
• Accuracy and Resolution: Look for force accuracy within ±0.5% of the reading and displacement accuracy within ±0.5% or better. Resolution should be at least 1/10,000 of the full scale.

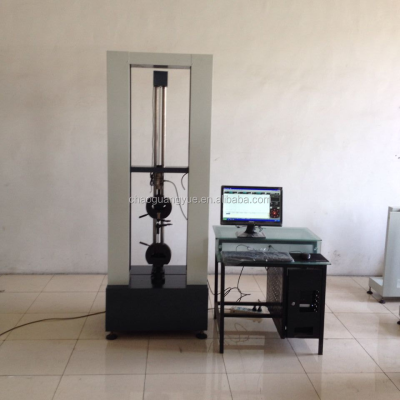

• Frame Configuration: Choose between Single-column (compact, lower capacity <50 kN) and Double-column (high rigidity, higher capacity >50 kN). Double-column frames are recommended for tensile/compression testing of metals to prevent frame deflection.
• Actuator Type: Electromechanical actuators are preferred for speeds up to 100 mm/min with high precision; hydraulic actuators are required for capacities >100 kN or high-force static testing.

Actionable Recommendation: Procure a machine with a force capacity that is 1.5x to 2x your maximum anticipated test load to ensure longevity and accuracy at lower loads. Verify that the control system supports closed-loop feedback for real-time speed and force adjustments.

2. Industry Compliance and Quality Assurance

Testing equipment must adhere to international standards to ensure data validity for regulatory submissions and quality control.

• Testing Standards: The UTM must be compliant with major standards including ASTM E8/E8M (tensile testing of metals), ASTM D638 (plastics), ISO 6892-1 (metallic materials), and ISO 527 (plastics).
• Calibration: The system should come with a traceable calibration certificate (e.g., NIST or ISO 17025 accredited). Annual recalibration is a standard requirement.
• Software Validation: Ensure the control software supports 21 CFR Part 11 compliance (electronic records/signatures) if operating in pharmaceutical or medical device sectors.
• Safety Features: Mandatory inclusion of emergency stop buttons, overload protection, and protective guards that comply with CE (Europe) or UL (North America) safety directives.

Actionable Recommendation: Require the supplier to provide a "Standards Compliance Matrix" as part of the quotation. Do not finalize the purchase without a documented calibration certificate traceable to a national metrology institute. Verify that the software includes audit trails for data integrity.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price, encompassing maintenance, software licensing, and integration with existing Laboratory Information Management Systems (LIMS).

• Capital Expenditure (CAPEX): Typical B2B ranges for a standard 100 kN UTM are $40,000 – $80,000. High-end systems with advanced extensometers and hydraulic components can range from $100,000 – $250,000.
• Operating Costs: Annual maintenance contracts typically cost 5% – 10% of the initial equipment value. Consumables (grips, extensometers) vary by application but should be budgeted at $2,000 – $5,000 annually.
• Integration: The system must support OPC UA, Modbus, or Ethernet protocols for seamless data export to LIMS or ERP systems.
• Lead Time and MOQ: Standard configurations usually have a lead time of 8 – 12 weeks. Minimum Order Quantity (MOQ) is typically 1 unit, though custom configurations may require higher volume commitments for tooling.

Actionable Recommendation: Negotiate a bundled pricing package that includes the first year of maintenance and software updates. Prioritize vendors offering open API documentation to reduce future integration costs with your internal data infrastructure.

4. Typical Use Cases

Universal Testing Machines are versatile tools used across diverse manufacturing and research sectors.

• Metallurgy: Tensile, compression, and bend testing of steel, aluminum, and alloys to determine yield strength and ultimate tensile strength.
• Polymers & Plastics: Testing of thermoplastics, elastomers, and composites for elongation at break, modulus of elasticity, and flexural properties.
• Packaging: Evaluating the burst strength, tear resistance, and seal integrity of flexible packaging materials.
• Textiles & Fibers: Measuring the tensile strength of fabrics, yarns, and non-woven materials.
• Adhesives & Coatings: Testing peel strength and shear strength of bonded joints.

Actionable Recommendation: Select a UTM based on the primary material class you test most frequently. If your lab handles both metals and plastics, invest in a dual-mode system with interchangeable grips and extensometers rather than two separate machines.

5. Long-Term Planning Considerations

The testing equipment market is shifting towards automation, connectivity, and sustainability.

• Market Trends: There is a rising demand for automated testing cells that integrate robotic sample loading to reduce operator error and increase throughput.
• Data Analytics: Modern procurement should prioritize machines with built-in AI-driven anomaly detection and cloud connectivity for remote monitoring and predictive maintenance.
• Scalability: As R&D needs evolve, the system should support software upgrades to add new test methods (e.g., fatigue or creep testing) without hardware replacement.
• Sustainability: Look for energy-efficient servo motors and systems designed for reduced power consumption during idle states.

Actionable Recommendation: Plan for a 5-year lifecycle. Choose a modular platform that allows for the addition of accessories (e.g., environmental chambers, fatigue modules) later. Avoid proprietary software ecosystems that lock you into a single vendor for future upgrades.

6. Special Product Recommendations

The following comparison table outlines three distinct UTM configurations based on buyer profiles and application needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Electromechanical UTM | General QA Labs, Plastics, Textiles | 10–100 kN, 0.01–500 mm/min, Closed-loop control | Verify grip compatibility with diverse sample shapes | Ensure software includes standard ASTM/ISO templates out-of-the-box. | | High-Capacity Hydraulic UTM | Heavy Industry, Metal Foundries, Construction | 200–2,000 kN, Hydraulic drive, High force stability | Check for hydraulic fluid leaks and noise levels | Require a detailed hydraulic maintenance plan and fluid disposal protocol. | | Compact Single-Column UTM | Universities, Small R&D, Education | 1–50 kN, Footprint <1m², Basic software | Verify long-term stability of single-column frame | Ideal for budget-conscious buyers; ensure upgrade path to double-column exists. |

Actionable Recommendation: For new procurement, the Standard Electromechanical UTM offers the best balance of precision and versatility for 80% of B2B applications. Avoid "custom" configurations unless you have a specific, non-standard test requirement that cannot be met by modular accessories.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a custom-configured Universal Testing Machine? A: Standard lead times are 8–12 weeks. Custom configurations involving specialized grips, environmental chambers, or unique software integrations may extend to 16–20 weeks.

Q2: How often should a UTM be recalibrated? A: Industry best practice dictates annual calibration to maintain compliance with ISO/ASTM standards. However, high-volume production environments may require semi-annual calibration.

Q3: Can a UTM test both metals and polymers effectively? A: Yes, provided the machine has a force capacity suitable for the stronger material (metals) and the software includes specific test methods for both. You will need to switch extensometers and grips between tests.

Q4: What is the difference between a servo-electric and a servo-hydraulic UTM? A: Servo-electric machines are cleaner, quieter, and more energy-efficient, ideal for low-to-mid force (up to ~100 kN) and high-speed testing. Servo-hydraulic machines are necessary for very high forces (>100 kN) and high-force static testing but require more maintenance.

Q5: Does the software support integration with our existing LIMS? A: Most modern UTMs support standard protocols like OPC UA, Modbus TCP, or Ethernet/IP. You must verify specific API documentation during the RFP stage to ensure seamless data transfer.

Q6: What is the typical Minimum Order Quantity (MOQ)? A: The standard MOQ is 1 unit. However, if you require a fully custom frame design or proprietary software integration, the vendor may negotiate a higher volume or a project-based fee.

Q7: How do I ensure the machine meets safety regulations for my region? A: Ensure the vendor provides a Declaration of Conformity for relevant regional standards (e.g., CE for Europe, UL/ANSI for North America) and that the machine includes mandatory safety interlocks and emergency stops.

Q8: What are the hidden costs associated with UTM ownership? A: Beyond the purchase price, consider costs for annual calibration, specialized grips/extensometers (which wear out), software license renewals, and potential downtime during maintenance. Budget 5–10% of the CAPEX annually for these operational costs.
