Procurement Report: Uninterruptible Power Supply (UPS) Systems

Product Category: Industrial & Commercial Power Protection (Uninterruptible Power Supply)

1. Technical Specifications and Performance Metrics

When procuring a UPS, the primary technical differentiator is the topology and the ability to deliver clean power under load. For critical infrastructure, an Online Double-Conversion topology is the industry standard, ensuring zero transfer time and complete isolation from utility power anomalies.

• Capacity Ranges:
  • Small Office/Home Office (SOHO): 500 VA – 3,000 VA (0.5 kVA – 3 kVA).
  • SMB & Edge Data Centers: 3 kVA – 20 kVA.
  • Enterprise & Hyperscale: 20 kVA – 500 kVA (and modular systems scaling up to 1 MW+).
  • Procurement Rule: Select a unit with an output watt capacity 20% to 30% higher than the total connected load to account for power factor degradation and future expansion.
• Runtime & Battery Chemistry:
  • Standard Runtime: 5 – 15 minutes (sufficient for graceful shutdown).
  • Extended Runtime: 30 – 60+ minutes (requires external battery packs).
  • Chemistry: Lead-Acid (VRLA) is standard for <10 kVA; Lithium-Ion (Li-ion) is increasingly preferred for >10 kVA due to higher cycle life (3,000–5,000 cycles vs. 500–1,000 for VRLA) and reduced footprint.
• Form Factor & Efficiency:

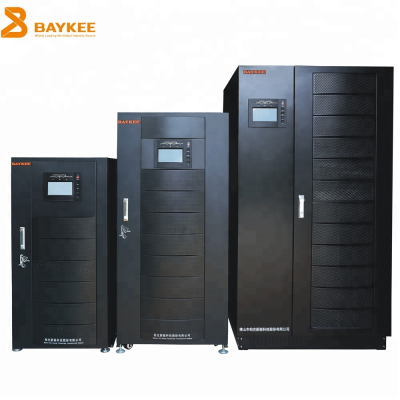

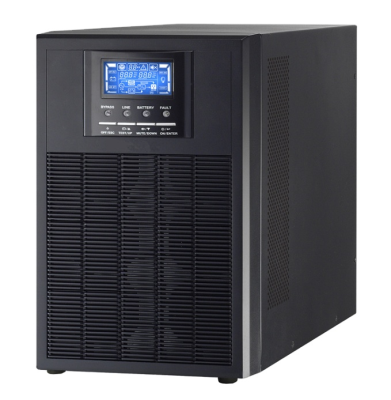

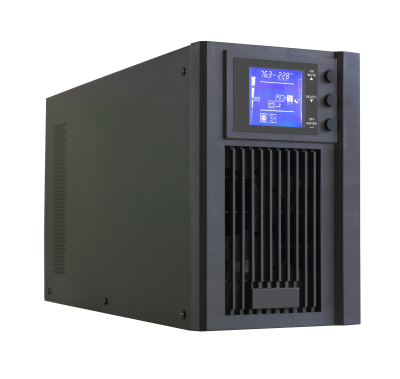

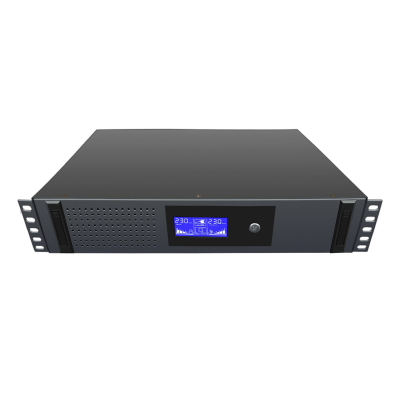

  • Form Factors: 1U–12U Rackmount, Tower, or Floor-standing Modular Cabinets.
  • Efficiency: Modern units typically achieve 94% – 98% efficiency in Eco-mode or standard mode, reducing operational heat and energy costs.
• Waveform Quality:
  • Must deliver Pure Sine Wave output (THD < 3%) for sensitive IT equipment, medical devices, and motor-driven loads.

Actionable Recommendation: Calculate the total connected load in Watts (not just VA) and add a 25% safety margin. Verify that the selected unit supports the required runtime via internal batteries or external battery cabinets, prioritizing Li-ion for high-availability sites to reduce long-term replacement costs.

2. Industry Compliance and Quality Assurance

Procurement of UPS systems requires adherence to strict safety and electromagnetic compatibility standards to ensure operator safety and grid stability.

• Safety Certifications:
  • UL 1778 / IEC 62040-1: Mandatory for safety in North America and Europe respectively.
  • UL 9540A: Critical for Lithium-Ion battery systems to assess thermal runaway risk.
  • ISO 9001: Indicates the manufacturer has a certified quality management system.
• Environmental & Emissions:
  • RoHS / REACH: Compliance with restrictions on hazardous substances.
  • Energy Star / Tier Efficiency: Look for units meeting high-efficiency tiers to qualify for utility rebates in some regions.
• Reliability Metrics:
  • MTBF (Mean Time Between Failures): Enterprise units often exceed 500,000 hours.
  • MTTR (Mean Time To Repair): Modular systems should allow hot-swappable components with repair times under 15 minutes.
• Warranty Standards:
  • Standard: 2 – 3 years.
  • Extended: 5 – 10 years (common for Li-ion or enterprise modular systems).

Actionable Recommendation: Require proof of UL or IEC certification for all units. For Li-ion deployments, explicitly demand UL 9540A test reports. Prioritize vendors offering a minimum 3-year warranty with a "Next Business Day" replacement clause to minimize downtime risk.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price, heavily influenced by energy efficiency, battery replacement cycles, and integration overhead.

• Cost Structure:
  • CapEx: Varies by capacity; typically $0.50 – $1.50 per VA for standard VRLA units, rising to $0.80 – $2.00 per VA for Li-ion or modular systems.
  • OpEx: Energy savings from high-efficiency modes (95%+) can reduce electricity costs by 10–15% compared to legacy systems.
  • Battery Replacement: VRLA batteries typically require replacement every 3–5 years; Li-ion batteries last 10–15 years, significantly lowering long-term OpEx.
• Integration & Management:
  • Connectivity: Standard interfaces include USB, RS-232, and SNMP cards for network management.
  • Software: Must support integration with DCIM (Data Center Infrastructure Management) tools, cloud monitoring, and virtualization platforms (e.g., VMware, Microsoft Azure).
  • Modularity: Modular UPS systems allow capacity scaling in 5 kVA or 10 kVA increments, aligning CapEx with actual growth.
• Lead Time & MOQ:
  • MOQ: Typically 1 unit for standard models; 5–10 units for custom modular configurations.
  • Lead Time: 2 – 4 weeks for standard rack/tower units; 6 – 12 weeks for large modular systems or custom voltage configurations.

Actionable Recommendation: Conduct a 5-year TCO analysis comparing VRLA vs. Li-ion solutions. For growing environments, choose modular UPS architectures to avoid over-provisioning. Ensure the procurement contract includes a software license for remote monitoring and SNMP management.

4. Typical Use Cases

The application scenario dictates the required topology, capacity, and form factor.

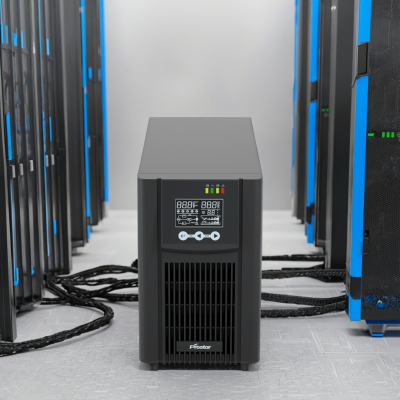

• IT Server Rooms & Data Centers:
  • Requirement: Online Double-Conversion, Pure Sine Wave, high efficiency.
  • Form Factor: Rackmount (1U–12U) or Floor-standing Modular.
  • Runtime: 10–30 minutes for shutdown; 1+ hour for generator integration.
• Medical Facilities:
  • Requirement: Zero transfer time, high reliability, isolation from grid noise.
  • Form Factor: Tower or Floor-standing with redundant (N+1) configurations.
  • Criticality: Life-support equipment requires 100% uptime assurance.
• Industrial Manufacturing:
  • Requirement: High surge capacity for motor startup, robust environmental rating (dust/heat).
  • Form Factor: Floor-standing cabinets.
  • Specialty: Must handle non-linear loads and voltage sags common in industrial grids.
• Edge Computing & Retail:
  • Requirement: Compact footprint, silent operation, simple management.
  • Form Factor: Tower or 1U Rackmount.
  • Runtime: 5–10 minutes sufficient for POS system shutdown.

Actionable Recommendation: Map the specific load profile of the deployment site. For medical or industrial motor loads, explicitly verify the UPS can handle the inrush current (often 3x–5x the running current). For data centers, prioritize N+1 redundancy configurations.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, technology obsolescence, and sustainability goals.

• Market Trends & Demand Signals:
  • Shift to Lithium-Ion: Demand for Li-ion UPS is rising rapidly due to space constraints and the need for 24/7 operation in edge data centers.
  • Modularity: There is a strong market shift toward modular UPS systems that allow "pay-as-you-grow" scaling, reducing stranded capacity.
  • Energy Efficiency Regulations: Stricter global energy codes are driving demand for >96% efficiency units to meet carbon reduction targets.
• Scalability:
  • Plan for a 3–5 year horizon. A modular system allows adding 10 kVA blocks as needed, whereas a monolithic system requires full replacement if capacity is exceeded.
• Sustainability:
  • Consider the end-of-life recycling program for lead-acid batteries. Li-ion systems reduce the frequency of battery disposal.
• Supply Chain Resilience:
  • Diversify suppliers for critical components (e.g., batteries, IGBTs) to mitigate global semiconductor or raw material shortages.

Actionable Recommendation: Prioritize modular, Li-ion-ready architectures for new builds to future-proof against capacity growth and efficiency mandates. Include a battery recycling clause in the vendor contract to meet ESG (Environmental, Social, and Governance) goals.

6. Special Product Recommendations

The following table compares the primary UPS categories to assist in selecting the right product for specific buyer profiles.

Actionable Recommendation: For new enterprise deployments, strongly consider Modular UPS or Li-ion systems despite higher initial costs, as they offer superior TCO and scalability. Avoid Line Interactive units for any server or medical application.

7. Frequently Asked Questions (FAQ)

Q1: How do I calculate the correct UPS size for my equipment? A: Sum the wattage of all connected devices. Add a 20–30% safety margin to this total. Select a UPS where the output watt capacity exceeds this calculated figure. Do not rely solely on VA ratings; ensure the watt rating matches your load.

Q2: What is the difference between Online and Line Interactive UPS? A: Online (Double-Conversion) UPS continuously converts AC to DC and back to AC, providing zero transfer time and perfect power conditioning. Line Interactive UPS uses a transformer to adjust voltage but has a brief transfer time (milliseconds) during a power outage. Online is required for critical loads; Line Interactive is suitable for general office use.

Q3: How long will the UPS battery last during a power outage? A: Standard internal batteries typically provide 5–15 minutes of runtime, sufficient for a safe shutdown. For longer runtimes (30+ minutes), you must purchase external battery packs or a battery cabinet, which can extend runtime based on the number of added modules.

Q4: Can I connect a UPS to a generator? A: Yes, but it requires specific configuration. The UPS must be set to "Generator Mode" to handle the frequency and voltage fluctuations typical of generator output. Without this setting, the UPS may interpret generator power as unstable and switch to battery mode unnecessarily.

Q5: What is the typical lifespan of a UPS battery? A: VRLA (Lead-Acid) batteries typically last 3–5 years depending on ambient temperature (heat degrades them). Lithium-Ion batteries typically last 10–15 years. Proactive replacement before the end of life is recommended to prevent failure.

Q6: Do I need a Pure Sine Wave UPS? A: Yes, if you are powering sensitive IT equipment (servers, network gear), medical devices, or laser printers. Non-sine wave (simulated) power can cause overheating, noise, or malfunction in these devices.

Q7: What is the lead time for a large modular UPS system? A: Standard rack units usually ship within 2–4 weeks. Large modular systems (20 kVA+) or those with custom voltage requirements typically have a lead time of 6–12 weeks due to manufacturing and testing cycles.

Q8: How does a UPS protect against power surges? A: A UPS protects against surges through its internal surge suppression circuitry and by isolating the load from the utility grid. In Online mode, the load is powered solely by the battery/inverter, completely blocking any external surges from reaching the equipment.
