Procurement Report: USB Type-C Connectors and Cables

Product Category: USB Type-C Connectors and Cable Assemblies Date: October 26, 2023 Subject: Strategic Sourcing Guidelines for USB Interface Components

1. Technical Specifications and Performance Metrics

When procuring USB connectors, specifically the industry-standard USB Type-C, precise specification alignment is critical to prevent signal integrity (SI) issues and mechanical failure. The selection process must begin with defining the mount style, data class, and power handling capabilities.

• Mount Styles:
  • SMT (Surface Mount Technology): Recommended for high-volume consumer electronics and compact devices. Typical cycle life ranges from 5,000 to 10,000 insertion/removal cycles.
  • THT (Through-Hole Technology): Preferred for industrial equipment or prototypes requiring high mechanical retention. Cycle life typically exceeds 10,000 cycles.
  • Panel Mount: Essential for docking stations and external enclosures. Retention force must be verified to withstand >5N lateral stress.
• Data Transfer Classes:
  • USB 2.0: Up to 480 Mbps. Suitable for charging and low-speed data.
  • USB 3.2 Gen 1/2: 5 Gbps or 10 Gbps. Standard for modern peripherals and external SSDs.
  • USB4 / Thunderbolt 3/4: 20 Gbps to 40 Gbps. Requires high-quality shielding and impedance control (typically 90Ω ±15%).
• Power Delivery (PD):
  • Standard: Up to 3 A at 20V (60W).
  • High Power: Up to 5 A at 20V (100W) or higher, requiring E-Marker chips in cables to negotiate current safely.
• Durability Metrics:
  • Insertion/Extraction Cycles: Minimum 10,000 cycles for commercial grade; 20,000+ cycles for industrial grade.
  • Operating Temperature: -40°C to +85°C (standard); -55°C to +125°C (automotive/industrial).

Procurement Recommendation: Do not select a connector based on physical dimensions alone. Explicitly specify the data rate (e.g., "USB 3.2 Gen 2") and current rating (e.g., "5A PD") in the initial Request for Quotation (RFQ) to ensure the internal conductor gauge and shielding meet the required Signal Integrity (SI) standards.

2. Industry Compliance and Quality Assurance

Quality assurance in the USB ecosystem is governed by the USB Implementers Forum (USB-IF). Non-certified components pose significant risks regarding compatibility and safety.

• USB-IF Certification:
  • Products bearing the USB-IF logo have passed rigorous testing, including over 50 compatibility tests across different host and device brands.
  • Certification is mandatory for cables defined in USB 2.0, USB 3.2, and USB Type-C standards to ensure legal compliance and market access.
• Safety Certifications:
  • Cables and connectors must carry regional safety marks (e.g., UL, CE, RoHS, REACH) to ensure they are safe for end-user environments.
  • Look for specific E-Marker compliance in cables rated for 5A or higher to prevent overheating and fire hazards.
• Testing Protocols:
  • Electrical Testing: Continuity, resistance, and voltage drop verification.
  • Mechanical Testing: Retention force, mating durability, and strain relief integrity.
  • Environmental Testing: Thermal cycling and humidity resistance.

Procurement Recommendation: Prioritize suppliers who can provide a valid USB-IF license number and test reports. Verify that the specific cable assembly or connector model is listed in the USB-IF product database. Avoid "generic" unbranded components for high-power applications, as they lack the necessary E-Marker negotiation capabilities.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in USB procurement extends beyond the unit price (UPV) to include total cost of ownership (TCO), which factors in yield rates, integration complexity, and failure costs.

• Typical B2B Cost Ranges:
  • USB Type-C SMT Connectors: $0.15 – $0.85 per unit (volume dependent).
  • USB Type-C Cable Assemblies (1m): $1.50 – $8.00 per unit (based on data speed and power rating).
  • MOQ (Minimum Order Quantity): Typically 1,000 – 5,000 units for custom configurations; 10,000+ units for standard off-the-shelf SKUs to achieve optimal pricing.
• Lead Times:
  • Standard Components: 2 – 4 weeks.
  • Custom/High-Speed (USB4/5A): 6 – 12 weeks due to specialized shielding and E-Marker programming.
• Integration Factors:
  • PCB Footprint: SMT connectors reduce assembly time but require precise pick-and-place calibration.
  • Cable Routing: High-speed cables (10Gbps+) require careful routing to minimize crosstalk, potentially increasing enclosure design costs.

Procurement Recommendation: Optimize for volume by standardizing on a single mount style (e.g., SMT) across product lines to reduce BOM complexity. For high-speed applications, invest in slightly higher-cost connectors with better shielding to reduce field failure rates and warranty claims.

4. Typical Use Cases

The versatility of USB Type-C allows it to serve diverse sectors, each with specific performance requirements.

• Consumer Electronics (Smartphones/Tablets):
  • Requirements: High cycle life, compact SMT footprint, 3A/5A PD support.
  • Focus: Aesthetics and durability against frequent plugging/unplugging.
• Data Centers & Enterprise Computing:
  • Requirements: USB 3.2 Gen 2 or USB4 (20/40 Gbps), robust panel mount connectors.
  • Focus: Signal integrity, thermal management, and high retention force.
• Industrial & Automotive:
  • Requirements: Wide temperature range (-40°C to +125°C), THT or reinforced panel mounts, IP-rated sealing.
  • Focus: Vibration resistance, corrosion protection, and safety certifications.
• Peripherals & Accessories:
  • Requirements: Standard USB 2.0/3.0 speeds, cost-effective cable assemblies.
  • Focus: Compatibility with legacy devices and ease of manufacturing.

Procurement Recommendation: Match the connector spec strictly to the use case. Do not over-specify (e.g., using 40Gbps connectors for a simple charging dock) as it inflates costs unnecessarily. Conversely, do not under-specify (e.g., using USB 2.0 connectors for 4K video transfer) as it leads to performance bottlenecks.

5. Long-Term Planning Considerations

The USB market is evolving rapidly, driven by the adoption of higher bandwidths and power standards. Procurement strategies must anticipate these shifts to avoid obsolescence.

• Market Trends:
  • Shift to USB4: Demand for 40 Gbps connectors is rising as 8K displays and high-speed NVMe storage become standard.
  • Power Density: The transition to 5A (100W+) and eventually 240W (USB PD 3.1) is accelerating, requiring E-Marker integration in all new designs.
  • Sustainability: Increased demand for RoHS-compliant and lead-free materials, as well as recyclable cable sheathing.
• Supply Chain Resilience:
  • Diversify suppliers across different geographic regions to mitigate semiconductor shortages that affect E-Marker chips.
  • Secure long-term agreements for high-speed connectors, as lead times for USB4 components can extend to 12+ weeks.
• Compatibility Risks:
  • Ensure new designs remain backward compatible with USB 2.0 devices to maintain market reach.

Procurement Recommendation: Adopt a "future-proof" procurement strategy by selecting connectors that support USB4 and 5A PD even if current products do not require them. This allows for rapid product iteration without re-tooling. Monitor USB-IF updates for new standards (e.g., USB PD 3.1) to align inventory planning.

6. Special Product Recommendations

The following table compares key USB connector types to assist in selecting the right component for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | USB Type-C SMT (USB 2.0) | Consumer Electronics OEMs | 480 Mbps, 3A, 5k cycles | Low SI risk, mechanical wear | Standardize for volume; verify ESD protection. | | USB Type-C SMT (USB 3.2/USB4) | High-Performance Laptops/PCs | 10-40 Gbps, 5A, 10k cycles | High SI risk, impedance mismatch | Require USB-IF certified shielding; test for crosstalk. | | Panel Mount (THT) | Industrial/Docking Stations | 5A PD, 20k+ cycles, IP-rated | Costly assembly, bulkier | Prioritize retention force >5N; check for strain relief. | | USB-C Cable Assembly (5A) | Power Delivery Accessories | 100W+, E-Marker chip, 3A/5A | Overheating if uncertified | Mandatory: Verify E-Marker presence and USB-IF logo. | | USB-C to Legacy (Adapter) | Mixed-Environment Enterprises | USB-C to USB-A, 5Gbps | Compatibility issues | Test with multiple host brands to ensure stability. |

Procurement Recommendation: For any application involving power delivery over 60W, strictly mandate the inclusion of an E-Marker chip in the cable assembly. For high-speed data, insist on impedance-controlled cables and connectors to prevent data packet loss.

7. Frequently Asked Questions (FAQ)

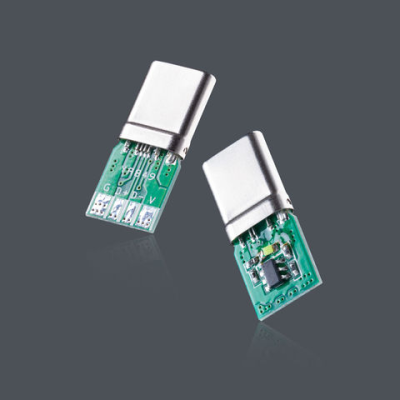

Q1: What is the difference between a USB Type-C connector and a USB Type-C cable? A: The connector is the physical plug and socket interface (the hardware), while the cable is the assembly of wires, shielding, and connectors. A connector can be used in a cable assembly, but a cable includes the internal conductors and E-Marker chips required for high-speed or high-power transmission.

Q2: Why is USB-IF certification important for procurement? A: USB-IF certification guarantees that the product has passed over 50 compatibility tests. Without it, there is a high risk of the device failing to charge, transfer data, or work correctly with devices from different manufacturers.

Q3: Can I use a USB 2.0 connector for a 10 Gbps application? A: No. USB 2.0 connectors are not designed to handle the signal integrity requirements of 10 Gbps or higher speeds. Using them will result in data loss, connection drops, or failure to establish a link.

Q4: What is the typical lead time for USB4 connectors? A: Typical B2B lead times for USB4 connectors are 6 to 12 weeks due to the complexity of the shielding and the need for specialized testing. Standard USB 2.0 connectors typically have a lead time of 2 to 4 weeks.

Q5: Do I need an E-Marker chip for a 3A cable? A: Generally, no. E-Marker chips are required for cables rated for 5A (100W+) to negotiate the higher current safely. However, some manufacturers include them for 3A cables for consistency or future-proofing.

Q6: What is the minimum insertion/removal cycle life for industrial connectors? A: Industrial-grade USB Type-C connectors typically offer a cycle life of 20,000 to 50,000 cycles, whereas consumer-grade connectors usually range from 5,000 to 10,000 cycles.

Q7: How do I verify if a supplier is legitimate? A: Ask for their USB-IF license number and request a copy of the test report for the specific model. You can also cross-reference the product on the official USB-IF product database.

Q8: What happens if I mix a 5A cable with a 3A port? A: The device will negotiate the lower current (3A) and operate safely. The cable will not be damaged, but the charging speed will be limited to the port's maximum capacity.
