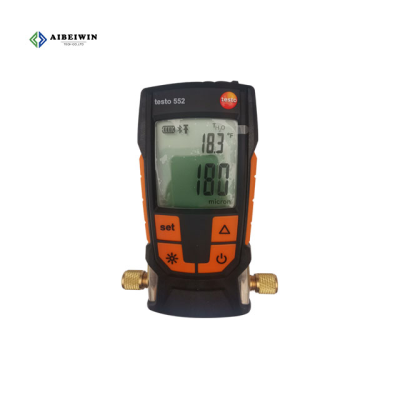

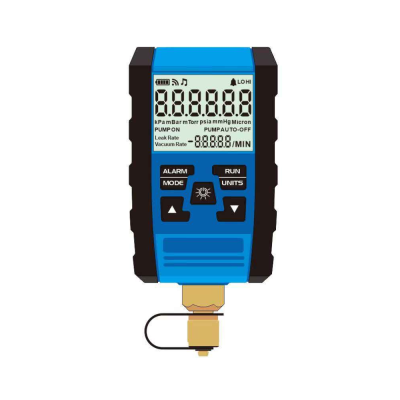

Vacuum Gauge Procurement Report

1. Technical Specifications and Performance Metrics

When procuring vacuum gauges, the selection is driven by the specific pressure range and the nature of the process medium. The market is generally segmented into mechanical gauges for rough vacuum and electronic gauges for high vacuum.

• Measuring Range & Accuracy:
  • General Industrial (Mechanical): For rough vacuum applications, select gauges with a range of -1 to 0 bar (0 to 1000 mbar). Standard dial sizes are 1.5" to 4". Accuracy should be within 0.5% to 1.6% Full Scale (FS).
  • High Vacuum (Electronic): For processes requiring high vacuum, a hybrid approach is standard.
    • Pirani Sensors: Cover atmosphere to 10⁻³ Torr.
    • Cold Cathode (Bayard-Alpert): Cover 10⁻³ to 10⁻⁷ Torr.
• Material Compatibility:
  • For corrosive media or low-pressure-sensitive applications, prioritize diaphragm-type gauges with 316L stainless steel wetted parts to prevent corrosion and ensure longevity.
• Connection Standards:
  • Common thread sizes are 1/4" NPT or 1/2" NPT.
  • For high-vacuum chambers, KF16 or KF25 flanges are the industry standard.
• Signal & Communication:
  • Modern procurement should favor units with 0–10 V analog outputs and RS232 or RJ45 digital interfaces for PLC integration.
  • Custom data frames and polling protocols should be specified during the RFQ phase.

Actionable Recommendation: Define the process pressure range first. If the application spans from atmospheric to high vacuum, do not rely on a single sensor; procure a hybrid system (e.g., Pirani + Cold Cathode) to ensure continuous coverage from 10⁵ Torr down to 10⁻⁷ Torr.

2. Industry Compliance and Quality Assurance

While specific named certifications (e.g., ISO 9001) were not explicitly detailed in the provided context, industry standards for vacuum instrumentation imply rigorous adherence to material purity and calibration protocols.

• Material Standards: Ensure all wetted parts meet 316L stainless steel specifications for corrosive environments. This is a critical quality marker for chemical and semiconductor processing.
• Calibration & Traceability: Procurement contracts should mandate traceable calibration certificates. For high-precision applications, the accuracy tolerance of 0.5% FS is the baseline expectation for general industrial use.
• Environmental Robustness: Units must be rated for operating temperatures typically between 15–50 °C.
• Contamination Control: Verify the expected contamination level (Low/Medium/High) of the process gas. High contamination requires gauges with self-cleaning capabilities or specific protection mechanisms to maintain the 10⁻⁷ Torr lower limit of cold cathode sensors.

Actionable Recommendation: Include a clause in the RFQ requiring a Certificate of Conformance (CoC) that explicitly lists the material grade of wetted parts and the calibration date. For high-vacuum applications, request a sample protocol to test the gauge's response to process gases before full-scale deployment.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in vacuum gauge procurement is not just about unit price but also about system integration complexity and total cost of ownership (TCO).

• Unit Pricing & Budget: Target budgets vary by technology. Hybrid configurations (Pirani + Cold Cathode) typically command a higher unit price but reduce the need for multiple separate controllers.
• Integration Savings:
  • Footprint: Selecting gauges with a compact footprint (e.g., VG-SP205 and VG-SM225 series) allows for denser panel mounting.
  • Interface Standardization: Units sharing the same RJ45 interface and communication protocol significantly reduce wiring complexity and PLC programming time.
• MOQ & Lead Time:
  • MOQ: Typical B2B ranges for specialized gauges often start at 10–50 units, though single units are available for prototyping.
  • Lead Time: Standard delivery is typically 4–8 weeks for custom configurations.
  • FOB Pricing: Procurement should request FOB China pricing to manage logistics costs effectively.

Actionable Recommendation: Opt for a unified platform where both rough and high-vacuum sensors share the same communication protocol (e.g., RS232 or Ethernet) and physical interface. This reduces the BOM (Bill of Materials) cost for controllers and simplifies the supply chain.

4. Typical Use Cases

Vacuum gauges are critical components across various industries, each with distinct pressure requirements.

• Semiconductor Manufacturing: Requires high-vacuum monitoring (10⁻³ to 10⁻⁷ Torr) for deposition and etching processes. Cold cathode gauges are essential here.
• Food & Pharmaceutical Packaging: Uses rough vacuum gauges (-1 to 0 bar) for vacuum sealing. Diaphragm gauges with 316L parts are preferred for hygiene and resistance to cleaning agents.
• Vacuum Furnaces & Heat Treatment: Operates in the rough-to-medium vacuum range. Pirani gauges are ideal for monitoring pump-down cycles.
• Laboratory Research: Often requires hybrid systems to cover the full spectrum from atmospheric pressure down to ultra-high vacuum (UHV) for material science experiments.

Actionable Recommendation: Map the specific process gas and pressure profile to the gauge type. For example, if the process involves reactive gases, ensure the gauge sensor material is compatible to avoid sensor poisoning.

5. Long-Term Planning Considerations

The vacuum instrumentation market is shifting towards smart, connected devices that facilitate predictive maintenance and Industry 4.0 integration.

• Market Trends: There is a growing demand for hybrid configurations that combine Pirani and Cold Cathode sensors in a single footprint. This trend is driven by the need for seamless data continuity across pressure ranges without changing sensors.
• Digitalization: The shift from analog outputs to digital protocols (RS232, Ethernet) is accelerating. Future-proofing procurement means selecting gauges with open communication protocols that allow for custom data frames and status codes.
• Demand Signals: Increased adoption in renewable energy (e.g., solar cell manufacturing) and advanced materials processing is driving demand for high-accuracy, low-drift gauges.
• Supply Chain Resilience: Diversifying suppliers and confirming FOB China lead times is crucial to mitigate global supply chain disruptions.

Actionable Recommendation: Plan for a 3-5 year lifecycle by selecting gauges with modular designs and digital interfaces. Avoid proprietary, closed-loop communication protocols that lock the buyer into a single vendor for future upgrades.

6. Special Product Recommendations

Based on the industry preference for hybrid systems and standardized interfaces, the following comparison highlights the optimal selection strategy.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Hybrid Pirani/Cold Cathode | Semiconductor & High-Tech R&D | Range: Atmosphere to 10⁻⁷ Torr; Interface: RJ45/RS232 | Sensor poisoning in dirty environments | Verify process gas compatibility; request sample testing for contamination tolerance. | | Diaphragm Mechanical Gauge | Food, Pharma, General Industry | Range: -1 to 0 bar; Accuracy: 0.5%–1.6% FS; Wetted Parts: 316L | Mechanical fatigue in high-vibration areas | Confirm thread size (1/4" or 1/2"); prioritize 316L for corrosive cleaning cycles. | | Pirani Vacuum Transmitter | Vacuum Furnace & Coating | Range: 10⁻³ to 1000 mbar; Output: 0–10 V | Drift at very low pressures | Use for rough-to-medium vacuum only; pair with cold cathode for full range. | | Cold Cathode Gauge | UHV Chambers & Research | Range: 10⁻³ to 10⁻⁷ Torr; Flange: KF16/KF25 | High voltage safety; EMI sensitivity | Ensure proper grounding; check for high-voltage interference in the control panel. |

Actionable Recommendation: For new installations, adopt the Hybrid Pirani/Cold Cathode configuration (e.g., VG-SP205 + VG-SM225) to minimize panel space and simplify PLC logic. Ensure the RFQ explicitly states the requirement for a shared communication protocol.

7. Frequently Asked Questions (FAQ)

Q1: What is the correct pressure range for a standard industrial vacuum gauge? A: For general industrial applications, select a gauge with a range of -1 to 0 bar (0 to 1000 mbar) and an accuracy of 0.5% to 1.6% FS.

Q2: How do I handle corrosive process gases? A: Choose a diaphragm-type gauge with 316L stainless steel wetted parts to prevent corrosion and ensure measurement stability.

Q3: What is the best solution for covering both rough and high vacuum? A: A hybrid configuration is recommended, combining a Pirani sensor (atmosphere to 10⁻³ Torr) with a Cold Cathode sensor (10⁻³ to 10⁻⁷ Torr) in a single footprint.

Q4: What connection sizes are most common? A: The most common thread sizes are 1/4" and 1/2". For high-vacuum chambers, KF16 or KF25 flanges are the standard.

Q5: What communication protocols should I look for in modern gauges? A: Look for 0–10 V analog outputs combined with RS232 or RJ45 digital interfaces. Custom data frames and polling protocols should be defined in the RFQ.

Q6: What is the typical lead time for vacuum gauges? A: Typical B2B lead times range from 4 to 8 weeks, depending on customization and quantity (MOQ typically 10–50 units).

Q7: How do I ensure the gauge is suitable for my specific process gas? A: Specify the process gases and expected contamination level (low/medium) in your RFQ. Request a sample protocol to test the gauge's response before full deployment.

Q8: Can I use a single gauge for all pressure ranges? A: Generally, no. Single sensors often have limited ranges. A hybrid approach is industry best practice to ensure accuracy from atmospheric pressure down to 10⁻⁷ Torr.
