Procurement Report: VGA Adapters and Converters

Product Category: Analog Display Connectivity & Signal Conversion Date: October 26, 2023 Subject: Strategic Sourcing Guidelines for VGA Interface Solutions

1. Technical Specifications and Performance Metrics

VGA (Video Graphics Array) is an analog video interface standard that requires precise signal integrity management. Procurement decisions must distinguish between passive inline adapters and active signal converters, as the technical requirements differ significantly.

• Connector Configuration: The standard interface utilizes a 15-pin D-sub (DE-15) connector, typically arranged in three rows. Common variants include 3+6 pin (standard) and 3+9 pin (enhanced shielding/grounding) configurations.
• Signal Resolution & Refresh Rates:
  • Passive Adapters: Limited to native analog signal transmission. Typically support resolutions up to 1920x1200 at 60Hz, though performance degrades significantly with cable lengths exceeding 3 meters.
  • Active Converters (e.g., HDMI/DP to VGA): Require internal chipsets to convert digital signals to analog. Industry standard performance supports 1920x1080 (1080p) and 2048x1280 at 60Hz.
• Cable Shielding & Length:
  • Shielding: High-quality procurement requires double-shielded (foil + braided) cables to mitigate electromagnetic interference (EMI).
  • Length Ranges: Standard B2B procurement ranges from 0.5 meters to 15 meters. For lengths exceeding 5 meters, active signal boosters or thicker gauge copper (18 AWG vs. 24 AWG) are mandatory to prevent signal attenuation.
• Operating Temperature: Active converters typically operate within a range of -10°C to +80°C, ensuring reliability in industrial or unconditioned server environments.

Actionable Recommendation: Verify the source device's output type. If the source is digital (HDMI, DisplayPort, USB-C), do not purchase a passive VGA adapter; you must procure an active converter with a built-in chipset to avoid a "no signal" scenario.

2. Industry Compliance and Quality Assurance

While VGA is an older analog standard, modern manufacturing must adhere to current environmental and safety regulations to ensure market access and reliability.

• Environmental Compliance: All connectors and cables must comply with RoHS (Restriction of Hazardous Substances) directives, specifically limiting lead content in solder and halogen-free materials in insulation.
• Safety Standards: Cables intended for commercial use should meet UL (Underwriters Laboratories) or CE (Conformité Européenne) safety certifications for fire resistance and electrical insulation.
• Signal Integrity Testing: Active converters should undergo testing for signal latency (typically <1ms) and color fidelity.
• Durability Metrics:
  • Connector Cycles: High-quality D-sub connectors should withstand 500+ mating cycles without signal degradation.
  • Cable Flexibility: Strain relief points should be rated for 10,000+ flex cycles to prevent internal wire breakage in high-traffic areas.

Actionable Recommendation: Require suppliers to provide a Declaration of Conformity (DoC) for RoHS and CE/UL standards. For active converters, request sample testing reports verifying 1080p/60Hz stability to avoid purchasing "fake" active chips that fail under load.

3. Cost Efficiency and Integration Capabilities

VGA solutions are generally cost-effective compared to modern digital standards, but the "total cost of ownership" includes integration complexity and potential signal loss.

• Cost Ranges (B2B Estimates):
  • Passive Inline Adapters: $0.50 – $2.50 per unit (bulk pricing applies).
  • Active Converters (HDMI/DP to VGA): $8.00 – $25.00 per unit depending on resolution support and build quality.
  • Premium Shielded Cables (10m+): $15.00 – $45.00 per unit.
• MOQ & Lead Time:
  • MOQ: Typically 50–100 units for custom branding; 1,000+ units for standard OEM pricing.
  • Lead Time: 2–4 weeks for standard stock items; 6–8 weeks for custom cable lengths or active chipset configurations.
• Integration:
  • Passive: Plug-and-play with zero configuration.
  • Active: May require driver installation (rare for VGA, but possible for USB-to-VGA) or specific power requirements (some active adapters draw power from the USB port, others require an external 5V DC supply).

Actionable Recommendation: For large-scale deployments (e.g., classroom or conference room refreshes), prioritize active converters over passive adapters if the source is modern digital. While the unit cost is higher, the risk of deployment failure is near zero, reducing long-term support costs.

4. Typical Use Cases

VGA remains a critical interface in legacy infrastructure and specific industrial scenarios where digital signal encryption or bandwidth is not the primary concern.

• Legacy Hardware Integration: Connecting modern laptops or desktops to older projectors, CRT monitors, and industrial control panels that lack HDMI/DisplayPort inputs.
• Conference Rooms & Education: Many existing AV systems in schools and corporate boardrooms rely on VGA for projection. Adapters are essential for hybrid meetings involving new laptops.
• Industrial & Medical Equipment: PLCs (Programmable Logic Controllers), medical imaging consoles, and point-of-sale (POS) terminals often utilize VGA for stability and low latency in analog environments.
• Data Centers: Used for out-of-band management of older server racks where video output is required for troubleshooting without network connectivity.

Actionable Recommendation: Conduct an inventory audit of existing display hardware. If the majority of displays are pre-2010, stock a mix of passive male-to-female adapters and active HDMI-to-VGA converters to cover all source device variations.

5. Long-Term Planning Considerations

The VGA standard is in a "maintenance and migration" phase. Procurement strategies must balance immediate legacy support with future-proofing.

• Market Trend Signals:
  • Decline in New Production: Major manufacturers are phasing out VGA ports on new consumer electronics (laptops, tablets, TVs).
  • Rise of Digital Standards: HDMI 2.1, DisplayPort 2.0, and USB4 are becoming the default.
  • Niche Persistence: Demand remains stable in the industrial, educational, and government sectors due to the high cost of replacing entire AV ecosystems.
• Migration Strategy:
  • Procure VGA adapters only as a bridge solution.
  • Plan for a phased transition to HDMI/DP or USB-C displays over a 3–5 year horizon.
  • Consider "VGA-to-Digital" bridges that output to modern networks (e.g., KVM over IP) as a long-term alternative to direct VGA cabling.

Actionable Recommendation: Do not invest in bulk stock of VGA cables for new facility builds. Limit procurement to replacement parts and temporary bridge solutions for existing legacy equipment. Allocate budget for a gradual upgrade to digital display infrastructure.

6. Special Product Recommendations

The following table compares the primary VGA adapter types to assist in selecting the right component for specific procurement scenarios.

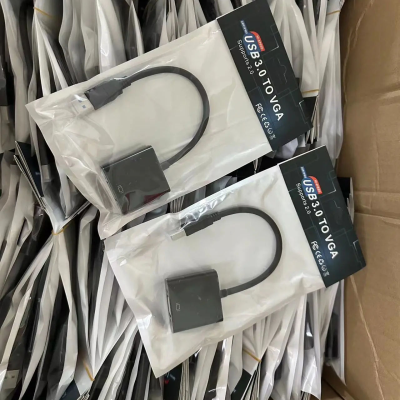

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Passive Male-to-Female Adapter | IT Admins with legacy VGA sources | 15-pin D-sub, 3+6/3+9 pin, 0.5m length | High Risk: Fails if source is digital (HDMI/DP). | Verify source output is analog before ordering. Ideal for extending existing VGA cables. | | Active HDMI-to-VGA Converter | Conference Room Managers | Supports 1080p@60Hz, 2048x1280, 9" cable, USB power | Medium Risk: Audio not passed through; requires power source. | Ensure the unit has a separate audio jack if sound is needed. Check for "Plug & Play" compatibility. | | Active DisplayPort-to-VGA | Industrial/Server Rooms | 1080p/60Hz, -10°C to 80°C range, DP Certified | Low Risk: High stability in harsh environments. | Prioritize units with metal housing for EMI shielding in server racks. | | USB-to-VGA Adapter | Remote Workers / Kiosks | Supports 1920x1080, requires USB 2.0+ | High Risk: Driver dependency; higher latency. | Only use for static displays (kiosks). Avoid for video playback or gaming. | | Shielded VGA Cable (10m+) | AV Integrators | 24 AWG copper, double shielding, gold-plated pins | Low Risk: Signal loss if shielding is poor. | Specify "3+9 pin" or heavy shielding for runs >5m to prevent ghosting. |

Actionable Recommendation: For a mixed environment, stock Active HDMI-to-VGA converters as the primary solution, as they cover the majority of modern-to-legacy connection needs. Keep a small reserve of Passive Adapters strictly for legacy-to-legacy connections.

7. Frequently Asked Questions (FAQ)

Q1: Can I use a simple passive VGA adapter to connect a modern laptop with only HDMI ports? A: No. A passive adapter only changes the physical connector shape; it cannot convert digital HDMI signals to analog VGA. You must use an active converter with a built-in chipset.

Q2: What is the maximum resolution supported by a standard VGA connection? A: While VGA is an analog standard, it reliably supports up to 1920x1200 at 60Hz. Higher resolutions often result in image blurring or color distortion due to signal degradation.

Q3: Do VGA cables carry audio? A: No. VGA is a video-only analog interface. If audio is required, you must use a separate audio cable or an active converter that includes a 3.5mm audio output jack.

Q4: How long can a VGA cable be before signal quality degrades? A: For passive cables, signal quality typically degrades after 5 meters. For runs longer than 5 meters, use high-quality shielded cables (18 AWG) or active signal boosters to maintain clarity.

Q5: What is the difference between 3+6 and 3+9 pin VGA connectors? A: The "3+6" refers to the standard 15-pin layout. "3+9" includes additional ground pins to improve shielding and reduce interference, making it better for longer cable runs or noisy environments.

Q6: Do active VGA converters require drivers? A: Most passive and active HDMI/DP-to-VGA converters are "Plug and Play" and do not require drivers. However, USB-to-VGA adapters often require specific driver installation on the host OS.

Q7: Is VGA still relevant in 2024? A: Yes, but primarily for legacy infrastructure in education, healthcare, and industrial sectors. New consumer electronics are rapidly phasing it out in favor of HDMI and DisplayPort.

Q8: What certifications should I look for when buying VGA adapters in bulk? A: Ensure products are RoHS compliant (environmental safety) and have CE/UL marks (electrical safety). For active converters, look for DisplayPort certification if applicable.
