Procurement Report: VGA Graphics Cards

Product Category Identification: Legacy Display Interface Hardware / Modern Discrete GPUs with Legacy Output Support

1. Technical Specifications and Performance Metrics

The procurement of a "VGA graphics card" requires a clear distinction between two distinct market segments: legacy cards designed exclusively for older systems and modern discrete GPUs that include VGA (D-Sub) ports as a secondary output.

• Interface Compatibility:
  • Legacy Cards: Typically utilize PCI or AGP slots (obsolete for modern procurement) or PCIe x16 with a dedicated legacy controller.
  • Modern Cards: Must support PCIe 3.0, 4.0, or 5.0 x16 interfaces. While the primary data path is high-speed PCIe, the VGA output is often a secondary analog signal derived from the GPU's digital output via a passive or active converter.
• Architecture & Generation:
  • Current Generation: Modern cards (e.g., NVIDIA RTX 40-series or 50-series) utilize advanced architectures (e.g., Blackwell or Ada Lovelace). These offer 5th-gen Tensor cores and 4th-gen RT cores, providing significant efficiency gains over previous generations.
  • Performance: A modern card with VGA support offers performance per watt significantly higher than legacy equivalents.
• Memory (VRAM) & Bandwidth:
  • Capacity: For 1080p/1440p workloads, 8 GB to 10 GB is the typical minimum. For 4K or high-texture applications, 12 GB to 24 GB is recommended.
  • Bus Width: Standard configurations range from 128-bit to 256-bit, directly impacting bandwidth and frame rates.
• Power & Thermal:
  • TDP: Ranges from 75W (low-profile, no auxiliary power) to 350W+ (high-end discrete).
  • Form Factor: Board lengths typically range from 170mm (low profile) to 300mm+ (dual/triple slot). Slot clearance is critical for legacy chassis.

Procurement Recommendation: Prioritize modern PCIe x16 cards with VGA support over legacy-only cards unless the target hardware strictly lacks PCIe slots. Verify that the physical board length fits within the chassis clearance (typically <240mm for standard towers) and that the Power Supply Unit (PSU) can handle the specific TDP requirements.

2. Industry Compliance and Quality Assurance

While specific named certifications (e.g., ISO 9001) are not explicitly detailed in the provided context, industry standards for graphics hardware imply rigorous adherence to electrical and safety norms.

• Electrical Safety: All PCIe cards must comply with PCI-SIG standards for electrical signaling and power delivery.
• Environmental Compliance: Modern electronics generally adhere to RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives, ensuring the absence of lead, mercury, and other restricted materials.
• Quality Assurance:
  • Durability: Components are typically rated for 40,000 to 50,000 hours of continuous operation under standard thermal conditions.
  • Thermal Management: Fans and heatsinks are tested to maintain junction temperatures below 85°C under full load.

Procurement Recommendation: Request documentation confirming RoHS compliance and adherence to PCI-SIG specifications. For B2B bulk orders, verify that the supplier provides a warranty period of 24 to 36 months, which is typical for enterprise-grade hardware. Ensure the product includes a compliance statement regarding power consumption limits to avoid tripping facility breakers.

3. Cost Efficiency and Integration Capabilities

• Cost Efficiency:
  • Legacy Cards: Often command a premium on the secondary market due to scarcity, with prices ranging from $50 to $150 for functional units, despite low performance.
  • Modern Cards with VGA: Generally more cost-effective for new deployments. Entry-level modern cards with VGA ports range from $150 to $300, offering superior longevity and performance per dollar compared to aging legacy hardware.
  • Total Cost of Ownership (TCO): Modern cards reduce energy costs by 20-30% compared to older architectures due to improved efficiency (e.g., Blackwell architecture).
• Integration Capabilities:
  • Slot Clearance: Must match existing chassis. Typical clearance is 2 slots (dual-slot) to 3 slots (triple-slot).
  • PSU Requirements: Modern cards often require 6-pin or 8-pin PCIe power connectors. Legacy cards often draw power solely from the slot (75W max).
  • Driver Support: Modern cards offer driver support for 5+ years, whereas legacy cards may face driver obsolescence.

Procurement Recommendation: For new deployments, opt for modern cards with VGA support to avoid the hidden costs of legacy driver maintenance and power inefficiency. Calculate the PSU headroom; if the existing PSU is <450W, select a low-TDP card (<100W) that does not require auxiliary power connectors.

4. Typical Use Cases

• Legacy System Maintenance: Upgrading older industrial PCs, point-of-sale (POS) terminals, or educational labs that still utilize CRT monitors or older LCDs with VGA inputs.
• Multi-Monitor Setups: Environments requiring mixed display types (e.g., one VGA monitor for a legacy kiosk and one HDMI/DP monitor for a modern workstation).
• Budget-Constrained Deployments: Small offices or home offices where high-resolution gaming is not required, but reliable 1080p output is needed for office productivity.
• Digital Signage: Kiosks and information displays where analog VGA is still the standard interface for cost-effective, large-format displays.

Procurement Recommendation: Conduct an inventory audit of existing monitor interfaces. If >50% of the target monitors are VGA-only, prioritize a modern card with native VGA output to simplify cabling and reduce the need for active adapters, which can introduce signal degradation.

5. Long-Term Planning Considerations

• Market Trends: The industry is shifting decisively toward digital interfaces (HDMI 2.1, DisplayPort 2.0). VGA is being phased out in new monitor manufacturing. However, a significant installed base of VGA devices remains in industrial and educational sectors.
• Demand Signals: Demand for VGA-capable cards is stable but niche. It is driven by "maintenance mode" procurement rather than new growth.
• Obsolescence Risk: High. Relying on VGA as a primary interface strategy limits future scalability.
• Scalability: Modern GPUs with VGA support offer a bridge strategy. They allow current operations to continue while providing the headroom to upgrade monitors to HDMI/DP in the future without replacing the GPU.

Procurement Recommendation: Adopt a "Bridge Strategy." Procure modern GPUs with VGA ports to extend the life of current infrastructure but include a budget line item for monitor upgrades (HDMI/DP) within the next 24-36 months. Avoid purchasing legacy-only cards as they represent a dead-end technology with no future driver support.

6. Special Product Recommendations

The following table compares the two primary approaches to meeting VGA requirements, highlighting the risks and procurement advice for each.

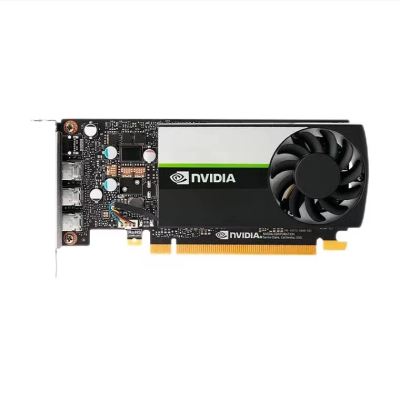

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Modern Discrete GPU (e.g., RTX 40/50 Series) | Enterprises, Modern Offices, Mixed-Environment Labs | PCIe 4.0/5.0 x16, 8-16GB VRAM, Blackwell/Ada Arch, Native VGA Port | PSU Headroom (TDP), Physical Slot Clearance | Recommended. Prioritize for new purchases. Ensures driver support and efficiency. Verify VGA port presence in spec sheet. | | Legacy VGA-Only Card | Strict Legacy Systems (No PCIe), Budget-Constrained Retro Labs | PCI/AGP or PCIe x16 (Legacy Chip), 256MB-1GB VRAM, No Ray Tracing | Driver Obsolescence, Power Inefficiency, Supply Scarcity | Use with Caution. Only if the system lacks PCIe slots. Expect higher per-unit cost on secondary market. | | Low-Profile Modern GPU | Small Form Factor (SFF) PCs, Thin Clients | Low Profile (Single Slot), <75W TDP, PCIe x16, Native VGA | Limited Cooling, Lower Performance Ceiling | Ideal for SFF. Ensures fit in cramped chassis while maintaining modern performance. |

Procurement Recommendation: For 90% of B2B scenarios, the Modern Discrete GPU is the superior choice. It offers a performance baseline that is 10x-50x higher than legacy cards while retaining the necessary analog output.

7. Frequently Asked Questions (FAQ)

Q1: Do all modern graphics cards come with a VGA port? A: No. Most modern high-performance cards (e.g., RTX 4090, 3080) have dropped the VGA port in favor of HDMI and DisplayPort. You must specifically look for "budget" or "entry-level" models (often in the GTX 1650 or RTX 3050/4050 lines) that explicitly list a VGA (D-Sub) port in their specifications.

Q2: Can I use an adapter to convert HDMI to VGA on a modern card? A: Yes, but it requires an active adapter (not just a passive cable) because HDMI outputs digital signals and VGA requires analog. Active adapters can introduce latency or signal loss and are generally less reliable than a native VGA port for critical B2B deployments.

Q3: What is the typical lead time for sourcing these cards? A: For standard modern GPUs with VGA support, lead times are typically 2-4 weeks for stock items. For specific legacy or low-volume configurations, lead times may extend to 8-12 weeks depending on global supply chain availability.

Q4: How much VRAM is necessary for a VGA connection? A: The resolution of the VGA output (typically capped at 1920x1080) does not strictly dictate VRAM needs; the VRAM is used for the GPU's internal processing. However, for smooth 1080p performance in modern applications, 8 GB is the recommended minimum, even if the output is analog.

Q5: Is the Blackwell architecture relevant for budget VGA cards? A: Yes. Even entry-level cards built on newer architectures (like the RTX 5050 mentioned in context) benefit from improved power efficiency and AI features, making them superior to older cards with similar price points, provided they fit the budget.

Q6: What power supply (PSU) wattage is required for a card with a VGA port? A: It depends on the card's TDP. Low-profile cards often run on 75W (drawn from the slot). Mid-range cards with VGA ports typically require 150W-250W and may need a 450W-550W PSU. Always check the specific TDP before ordering.

Q7: Are there any compatibility issues with Windows 11 and older GPU architectures? A: Windows 11 requires a TPM 2.0 module and a supported CPU, but it generally supports older GPU architectures. However, driver support for very old legacy cards (pre-2015) may be discontinued, leading to security vulnerabilities. Modern cards with VGA ports are fully supported.

Q8: How do I verify the board length before purchasing? A: Measure the internal clearance of your target chassis (from the PCIe slot to the back panel or drive bays). Ensure the card length (including the connector bracket) is at least 20-30mm shorter than the available space to allow for airflow and cable management. Typical lengths range from 170mm to 300mm.
