Procurement Report: Water Well Systems and Services

Product Category: Water Well Construction, Pump Installation, and Groundwater Extraction Systems

1. Technical Specifications and Performance Metrics

Procurement of water well systems requires precise engineering to ensure structural integrity and hydraulic efficiency. The core components include the well casing, screen, pump, and grouting materials.

• Well Casing and Screen:
  • Material: High-density polyethylene (HDPE) or stainless steel (304/316) are standard for corrosion resistance.
  • Diameter Ranges: Typical residential wells range from 4 to 6 inches (100–150 mm), while commercial/industrial wells often require 8 to 12 inches (200–300 mm).
  • Slot Size: Must be matched to aquifer grain size, typically ranging from 0.010 to 0.040 inches (0.25–1.0 mm) to prevent sand entry while maximizing flow.

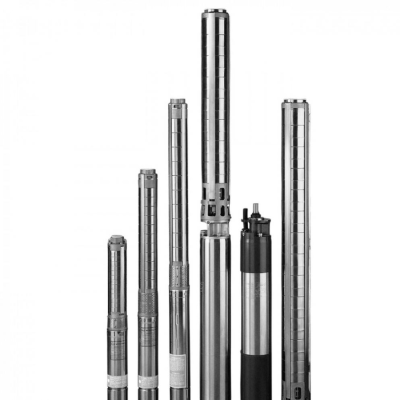

• Pump Performance:
  • Flow Rates: Residential submersible pumps typically deliver 5–15 gallons per minute (GPM) or 19–57 liters per minute (LPM). Commercial systems often exceed 50 GPM (190 LPM).
  • Head Pressure: Standard systems operate between 100 and 300 feet (30–90 meters) of dynamic head. Deep wells may require multi-stage pumps capable of 1,000+ feet (300+ meters).
  • Power: 1 HP to 5 HP for residential; 10 HP to 100+ HP for industrial applications.
• Grouting and Sealing:
  • Bentonite/Sealant: Must provide a seal of at least 10 feet (3 meters) from the surface to prevent surface contamination.
  • Durability: Grout columns must maintain integrity for 50+ years without degradation.

Actionable Recommendation: Procure pumps with a 10–15% capacity buffer above the calculated static demand to account for aquifer drawdown. Verify that casing materials meet ASTM standards for chemical resistance and structural load.

2. Industry Compliance and Quality Assurance

Compliance is critical to prevent groundwater pollution and ensure the long-term viability of the water source. The procurement process must prioritize vendors certified under rigorous state-level programs.

• Certification Requirements:
  • Driller/Pump Installer Certification: In jurisdictions like West Virginia, all drilling and pump installation activities must be performed by individuals holding a valid Waterwell Certification. This ensures adherence to state-specific design standards (e.g., West Virginia Water Well Design Standards).
  • Scope: Certification covers construction, modification, and abandonment of wells for drinking water, geothermal, and industrial use.
• Quality Assurance Protocols:
  • Construction Standards: Wells must be constructed to prevent surface water infiltration. This includes proper casing extension (minimum 12 inches above grade) and sanitary seals.
  • Abandonment Standards: Decommissioned wells must be sealed with cement grout to prevent cross-contamination between aquifers.
• Documentation:
  • Vendors must provide a Well Log detailing depth, lithology, casing depth, and pump setting depth.
  • Proof of certification must be verified prior to contract signing.

Actionable Recommendation: Do not engage contractors who cannot produce current state-issued Waterwell Certification. Require a signed compliance affidavit stating that the well construction will strictly follow the local state design standards (e.g., WV Water Well Design Standards) to avoid future regulatory fines or health hazards.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in water well procurement extends beyond the initial installation price to include energy consumption, maintenance, and system longevity.

• Cost Ranges (Typical B2B):
  • Residential Installation: $3,000 – $8,000 per well (excluding land acquisition).
  • Commercial/Industrial: $15,000 – $50,000+ depending on depth and geology.
  • Pump Unit Cost: $800 – $5,000 for residential; $10,000 – $50,000+ for industrial multi-stage systems.
  • Maintenance: Annual inspection costs typically range from $150 – $500.
• Integration Capabilities:
  • Smart Monitoring: Modern pumps integrate with IoT sensors for real-time flow, pressure, and quality monitoring.
  • Power Systems: Compatibility with solar inverters (12V/24V/48V DC systems) is increasingly common for remote sites.
  • Flow Control: Integration with variable frequency drives (VFDs) allows for precise pressure regulation, reducing energy usage by 20–30%.
• Lead Time and MOQ:
  • Lead Time: 2–4 weeks for standard pump units; 6–8 weeks for custom deep-well industrial pumps.
  • MOQ: Typically 1 unit for custom drilling services; bulk discounts available for pump units (MOQ 5+).

Actionable Recommendation: Prioritize procurement of Variable Frequency Drive (VFD) equipped pumps to reduce long-term energy costs. Request a total cost of ownership (TCO) analysis from vendors that includes energy consumption over a 10-year period.

4. Typical Use Cases

Water well systems are deployed across various sectors based on water volume and quality requirements.

• Residential Drinking Water:
  • Scenario: Single-family homes or small subdivisions relying on private aquifers.
  • Requirements: High water quality (potable), low noise, and reliable pressure (30–50 psi).
• Agricultural Irrigation:
  • Scenario: Farms requiring high-volume water for crops or livestock.
  • Requirements: High flow rates (50–200 GPM), robust casing to handle sediment, and corrosion-resistant materials.
• Commercial and Industrial:
  • Scenario: Manufacturing plants, hotels, or municipal supply.
  • Requirements: Redundant pump systems, large storage tanks, and strict adherence to environmental safety standards.
• Geothermal and HVAC:
  • Scenario: Ground-source heat pump systems.
  • Requirements: Closed-loop or open-loop configurations with specific thermal exchange efficiency.

Actionable Recommendation: For agricultural use, specify pumps with high sand-handling capabilities (up to 100 ppm suspended solids). For industrial use, mandate redundant pump systems to ensure business continuity during maintenance.

5. Long-Term Planning Considerations

Strategic procurement must account for aquifer sustainability, regulatory changes, and technological evolution.

• Market Trends and Demand Signals:
  • Sustainability Focus: Increasing demand for "sustainable well drilling" practices that minimize aquifer depletion.
  • Regulatory Tightening: States are increasingly enforcing stricter abandonment and construction codes to protect groundwater resources.
  • Technology Shift: Rising adoption of solar-powered pumping and remote telemetry for leak detection.
• Aquifer Sustainability:
  • Procurement plans should include a hydrogeological assessment to ensure the well does not exceed the sustainable yield of the aquifer.
  • Consider future climate variability; deeper wells may be required as water tables recede.
• Lifecycle Management:
  • Plan for a 20–30 year lifecycle for the well structure, with pump replacement every 10–15 years.
  • Budget for periodic water quality testing (annually) and structural integrity inspections (every 5 years).

Actionable Recommendation: Include a clause in procurement contracts for "Future-Proofing," requiring the vendor to design the well with the capacity to accommodate future depth extensions or pump upgrades without major reconstruction.

6. Special Product Recommendations

The following table compares common water well system configurations to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Submersible Pump | Residential / Small Commercial | 1–5 HP, 30–100 GPM, Stainless Steel | Low (Proven tech) | Verify local certification of installer; check warranty on motor seals. | | High-Flow Turbine Pump | Agriculture / Large Industry | 10–100 HP, 100–500 GPM, Multi-stage | Medium (Complex install) | Ensure vendor has deep-well drilling experience; verify sand handling specs. | | Solar-Ready Pump System | Remote Sites / Eco-Projects | DC Motor, VFD compatible, 12V/48V | Medium (Grid dependency) | Calculate solar array size for winter months; check battery storage capacity. | | Geothermal Loop System | HVAC / Commercial Buildings | Closed-loop, High thermal conductivity | High (Geology dependent) | Require detailed soil thermal conductivity report before procurement. | | Emergency Backup Pump | Critical Infrastructure | Portable, 12V/24V, 5–10 GPM | Low (Simple) | Keep as spare; ensure compatibility with existing well casing diameter. |

Actionable Recommendation: For critical infrastructure, adopt a "Hybrid" approach: procure a primary grid-connected pump and a secondary solar-ready backup pump to mitigate power outage risks.

7. Frequently Asked Questions (FAQ)

Q1: Is it mandatory to hire a certified driller for water well construction? A: Yes. In many jurisdictions, such as West Virginia, it is legally required to hire a certified Waterwell Driller and Pump Installer to ensure the well is constructed, modified, and abandoned according to state design standards. This protects groundwater resources and public health.

Q2: What is the typical lifespan of a water well? A: With proper construction and maintenance, a water well structure can last 30 to 50 years. However, the submersible pump typically requires replacement every 10 to 15 years depending on usage and water quality.

Q3: How do I determine the correct pump size for my well? A: Pump sizing depends on the well's yield (GPM), the depth of the water table, and the required flow rate for your application. A hydrogeological survey or a professional well log is necessary to calculate the optimal pump capacity.

Q4: What certifications should I look for in a water well vendor? A: Look for state-issued Waterwell Certification (e.g., WV Waterwell Certification Program). This certification validates that the driller and pump installer have met technical competency requirements to protect groundwater integrity.

Q5: Can I install a solar pump on an existing well? A: Yes, provided the existing well casing diameter and depth are compatible with the new pump. You may need to upgrade the wellhead and control box to accommodate the solar inverter and VFD.

Q6: What are the risks of improper well abandonment? A: Improper abandonment can lead to cross-contamination between different aquifers, allowing pollutants to enter drinking water sources. State regulations mandate specific grouting procedures to prevent this.

Q7: How often should water quality be tested? A: It is recommended to test water quality annually for bacteria and nitrates, and every 3–5 years for heavy metals and other chemical contaminants, especially if the well is in an agricultural or industrial area.

Q8: What is the typical lead time for a custom deep-well pump? A: Custom deep-well pumps typically have a lead time of 6 to 8 weeks. Standard residential pumps are often available for immediate shipment or within 2–4 weeks.
