Procurement Report: Industrial Wheelbarrows

1. Technical Specifications and Performance Metrics

Based on industry standards and duty requirements, the procurement of wheelbarrows must prioritize structural integrity and load-bearing capacity. The following specifications define the baseline for commercial-grade units:

• Rated Load Capacity: Select units rated for 80–300 kg. For heavy-duty applications involving abrasive materials (e.g., gravel, concrete), the upper end of this range is recommended.
• Safety Factor: Ensure the design incorporates a 1.5× safety factor relative to the rated load to prevent structural failure under dynamic loading conditions.

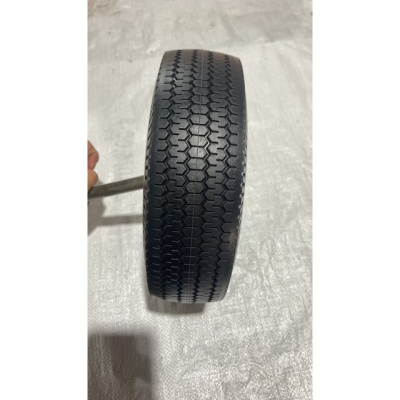

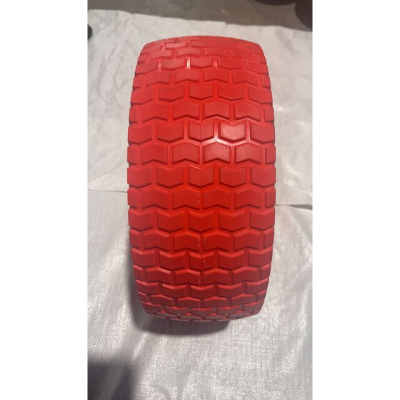

• Wheel Dimensions: Opt for wheel diameters between 200–400 mm. Larger wheels (300–400 mm) are critical for traversing uneven terrain, reducing operator fatigue, and improving stability on soft ground.
• Tray Construction & Thickness:
  • Steel Trays: Must utilize hot-rolled carbon steel with a thickness of 1.5–3.0 mm. Thicker gauges (2.5–3.0 mm) are required for high-abrasion environments.
  • HDPE Trays: For corrosion-heavy environments (e.g., chemical handling or coastal areas), select High-Density Polyethylene trays with a thickness of 6–12 mm.
• Axle and Handle: Axles should be constructed from structural steel conforming to IS : 226-1962 (Standard Quality) or IS : 1977-1962 (Ordinary Quality). Handles must be reinforced to withstand the full load moment.

Actionable Recommendation: For general construction and landscaping, prioritize steel trays with a 2.0 mm thickness and 300 mm wheels. For chemical or marine applications, mandate HDPE trays with a minimum 8 mm thickness.

2. Industry Compliance and Quality Assurance

Procurement must adhere to established Indian Standards to ensure safety and longevity. The primary reference standard is IS 2431 (1963): Specification for Steel Wheel Barrows.

• Material Standards:
  • Steel sections, bus, and rivets must conform to IS : 1977-1962 (Ordinary Quality) or IS : 226-1962 (Standard Quality).
  • Rivet bars must meet IS : 1148-1957 specifications.
• Surface Finishes:
  • Standard finish is typically bituminous, black, lead-free paint, which must be acid, alkali, water, and heat-resistant (referencing IS : 158-1950 guidelines for paint specifications).
  • Galvanization: If specified by the purchaser, metal parts must be galvanized in compliance with appropriate Indian Standards. This is highly recommended for outdoor storage or humid climates.
• Marking and Traceability:
  • Every unit must be permanently marked with: Manufacturer name/trade-mark, Rated Capacity, Unladen Weight, and Year of Manufacture.
  • ISI Certification Mark: Verify the presence of the ISI Certification Mark if the procurement requires adherence to the Indian Standards Institution Certification Marks Act.

Actionable Recommendation: Require the supplier to provide a Certificate of Conformity (CoC) referencing IS 2431 (1963) and IS : 226-1962. Explicitly request galvanization for all steel components if the equipment will be stored outdoors for extended periods.

3. Cost Efficiency and Integration Capabilities

While exact market pricing fluctuates, B2B procurement strategies should focus on the Total Cost of Ownership (TCO) rather than just the unit price.

• Cost Efficiency Factors:
  • Durability vs. Price: A steel wheelbarrow with a 3.0 mm tray may cost 15–20% more upfront than a 1.5 mm version but offers double the lifespan in high-abrasion scenarios, reducing replacement frequency.
  • Maintenance Costs: Galvanized or HDPE units reduce long-term maintenance costs associated with rust removal and repainting.
• Integration Capabilities:
  • Modularity: Ensure the wheelbarrow design allows for easy wheel replacement (standard axle sizes) to minimize downtime.
  • Compatibility: Verify handle dimensions to ensure compatibility with existing material handling workflows (e.g., loading into trucks or mixing with concrete mixers).
• Typical B2B Ranges:
  • MOQ (Minimum Order Quantity): Typically 10–50 units for custom specifications; 1–5 units for standard off-the-shelf models.
  • Lead Time: 2–4 weeks for standard stock; 6–8 weeks for custom galvanization or specific capacity requirements.

Actionable Recommendation: Negotiate a tiered pricing structure based on volume. For fleets exceeding 50 units, mandate a 5-year warranty on structural welds and axle integrity to mitigate long-term replacement risks.

4. Typical Use Cases

Wheelbarrows are versatile tools deployed across various sectors. Selection should be driven by the specific material being moved:

• Construction & Civil Engineering: Moving sand, gravel, cement, and debris. Requires high load capacity (200–300 kg) and abrasion-resistant steel trays.
• Landscaping & Agriculture: Transporting soil, mulch, and fertilizer. HDPE trays are preferred here to prevent chemical reactions with fertilizers and reduce weight for operator ease.
• Industrial Maintenance: Moving scrap metal or machinery parts. Requires reinforced frames and 1.5× safety factors.
• Municipal & Waste Management: Collection of waste and yard debris. Galvanized steel or HDPE is essential for corrosion resistance against wet waste and cleaning agents.

Actionable Recommendation: Conduct a site survey to determine the primary material type. If the material is abrasive (gravel/concrete), specify steel. If the material is corrosive (fertilizers/chemicals) or wet, specify HDPE.

5. Long-Term Planning Considerations

Future-proofing procurement involves anticipating market trends and operational shifts.

• Market Trends & Demand Signals:
  • Shift to Ergonomics: There is a growing demand for wheelbarrows with larger wheels (400 mm+) and ergonomic handles to reduce operator strain and injury claims.
  • Sustainability: Increased interest in HDPE and recycled steel materials due to environmental regulations and the ease of recycling at end-of-life.
  • Corrosion Resistance: As infrastructure projects move into coastal or humid regions, the demand for galvanized and HDPE units is outpacing standard painted steel.
• Durability Planning:
  • Plan for a replacement cycle of 5–7 years for standard steel units in heavy use, and 7–10 years for galvanized or HDPE units.
  • Factor in the cost of spare parts (wheels, bearings) in the long-term budget.

Actionable Recommendation: Incorporate a "Ergonomic Upgrade" clause in future procurement contracts, prioritizing models with 400 mm wheels and reinforced handles. Stock spare wheels and bearings for the first 3 years of operation to ensure continuity.

6. Special Product Recommendations

The following comparison table outlines the best-fit options based on specific buyer profiles and risk factors.

Actionable Recommendation: For mixed-use fleets, adopt a 70/30 split: 70% Heavy-Duty Steel for general hauling and 30% HDPE/Galvanized for specialized corrosive or wet tasks.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum safety factor required for a commercial wheelbarrow? A: Industry standards dictate a safety factor of 1.5× the rated load capacity to ensure stability and prevent structural failure under dynamic loads.

Q2: Which Indian Standard governs the material quality of the steel sections? A: Steel sections, bars, and rivets must conform to IS : 1977-1962 (Ordinary Quality) or IS : 226-1962 (Standard Quality). Rivet bars specifically must meet IS : 1148-1957.

Q3: How do I determine the correct tray thickness for my project? A: For general construction and high-abrasion materials, select a steel tray thickness of 2.5–3.0 mm. For light-duty or corrosive materials, 1.5–2.0 mm steel or 6–12 mm HDPE is sufficient.

Q4: Is galvanization mandatory for all wheelbarrows? A: No, it is optional unless specified by the purchaser. However, for outdoor storage or humid environments, galvanization is highly recommended to prevent rust and extend service life.

Q5: What information must be permanently marked on the wheelbarrow? A: Per IS 2431 (1963), each unit must be marked with the manufacturer's name/trade-mark, rated capacity, unladen weight, and the year of manufacture.

Q6: What wheel diameter is best for uneven terrain? A: A wheel diameter of 300–400 mm is recommended for uneven terrain to reduce rolling resistance and improve stability. Smaller wheels (200 mm) are suitable only for smooth, paved surfaces.

Q7: Can I use a wheelbarrow for chemical transport? A: Standard painted steel is not recommended for chemicals. Use HDPE trays (6–12 mm) or galvanized steel to ensure resistance to acid, alkali, and corrosion.

Q8: What is the typical lead time for custom specifications? A: For standard stock items, lead time is typically 2–4 weeks. For custom galvanization or specific capacity requirements, expect 6–8 weeks.
