Procurement Report: Wheel Trailer Systems

1. Technical Specifications and Performance Metrics

When procuring wheel trailer systems, the primary determinant of selection is the Gross Vehicle Weight Rating (GVWR) and the intended operating environment (road vs. off-road). The wheel and axle configuration must align with the load distribution to ensure safety and longevity.

• Load Capacity & Axle Configuration:
  • Light Duty: Typically utilizes 15"–16" wheels with a 5-lug pattern. These are rated for approximately 1,500–3,500 lbs per wheel. This setup is standard for utility trailers, small boat trailers, and light cargo haulers.
  • Medium Duty: Requires 17.5"–19.5" wheels with 6- or 8-lug patterns. These are rated for approximately 3,500–7,000 lbs per wheel. Suitable for larger cargo trailers, equipment haulers, and medium-sized recreational vehicles.
  • Heavy Duty: Utilizes 22.5" and larger wheels with 8-lug patterns. These are designed for high-capacity commercial transport exceeding 7,000 lbs per wheel.
• Tire Specifications:
  • Inflation Pressure: Critical for load bearing. For example, a common P195/70R14 tire requires a cold inflation pressure of 29 PSI (approx. 200 kPSA). Procurement must ensure tires are matched to the specific rim diameter and load index.
  • Durability: Expect a service life of 3–5 years for standard highway use, dependent on maintenance and exposure to UV/chemicals.
• Braking Systems:
  • For trailers with a GVWR of 1,500 lbs or over, braking systems are mandatory. Procurement must verify that brakes are installed on all wheels to meet safety standards.

Actionable Recommendation: Before placing an order, calculate the total Gross Axle Weight Rating (GAWR) required for your specific application. Select a wheel assembly where the per-wheel capacity exceeds the calculated load by a safety margin of at least 10–15%. Do not mix wheel sizes or lug patterns on the same axle.

2. Industry Compliance and Quality Assurance

Compliance with regulatory standards is non-negotiable for trailer wheel systems to ensure legal roadworthiness and insurance validity.

• Certification Requirements:
  • Manufacturers must secure component certifications for the capacities of tires, rims, axles, hubs, and springs.
  • NMMA Certification: For recreational trailers, adherence to the NMMA (National Marine Manufacturers Association) Trailer Certification Handbook is standard. This mandates that manufacturers offer brakes for all wheels on trailers designed for a GVWR of 1,500 lbs or over.
• Labeling Standards:
  • Tire Inflation Pressure Label: A mandatory label (13mm x 14mm or 0.51" x 0.55") must be affixed to the vehicle. It must feature high-contrast text (Yellow on Black or Black on Yellow) displaying:
    • Tire Size (e.g., P195/70R14)
    • Cold Tire Pressure (e.g., 29 PSI)
    • Front/Rear/Spare designations.
  • GVWR/GAWR Label: A separate label must clearly state the Gross Vehicle Weight Rating and Gross Axle Weight Rating. This label cannot be used for passenger cars and must be distinct.
• Quality Assurance:
  • Verify that the supplier provides a "Tire and Rim Specification" label or a separate document detailing the cold tire pressure and load limits.
  • Ensure the axle and hub assembly are certified to handle the specific tire load index.

Actionable Recommendation: Require the supplier to provide the specific certification documents for the axle, hub, and tire assembly prior to shipment. Verify the presence of the mandatory Tire Inflation Pressure Label and GVWR/GAWR labels on the sample unit. Reject any unit lacking the high-contrast yellow/black labeling as per 49CFR571.110 standards.

3. Cost Efficiency and Integration Capabilities

Procuring wheel trailers involves balancing upfront costs with long-term maintenance and integration ease.

• Cost Structure:
  • Typical B2B Ranges: Light-duty wheel assemblies (15"-16") typically range from $150–$300 per wheel (including tire and rim). Medium-duty (17.5"-19.5") assemblies range from $400–$800 per wheel. Heavy-duty units can exceed $1,000 per wheel.
  • MOQ (Minimum Order Quantity): Standard industry practice for custom wheel setups often starts at 10–20 units for discounted pricing, though stock items may be available for single-unit purchases.
  • Lead Time: Standard lead times for stock items are 2–4 weeks. Custom configurations (specific lug patterns or heavy-duty ratings) may require 6–12 weeks.
• Integration Capabilities:
  • Brake Integration: The system must be compatible with the trailer's existing brake controller. Ensure the wheel hub includes the necessary flange for electric or hydraulic drum/disc brakes.
  • Mounting Compatibility: Verify that the wheel bolt pattern (PCD) matches the trailer axle flange. Common patterns include 5-lug (4.5" or 5" PCD) and 8-lug (6.5" or 7" PCD).

Actionable Recommendation: Negotiate volume discounts for orders exceeding 50 units to reduce per-unit costs by 10–15%. Prioritize suppliers who offer "turnkey" axle assemblies (pre-mounted hubs and brakes) to reduce assembly labor costs by approximately 20–30% compared to sourcing components separately.

4. Typical Use Cases

The selection of wheel trailer systems is heavily dictated by the application scenario.

• Recreational & Marine:
  • Scenario: Boat trailers, utility trailers for ATVs, and small cargo haulers.
  • Specs: 15"–16" 5-lug wheels, GVWR < 3,500 lbs per wheel.
  • Requirement: Corrosion-resistant coatings are essential due to water exposure.
• Commercial Cargo & Logistics:
  • Scenario: Enclosed cargo trailers, equipment transport, and moving vans.
  • Specs: 17.5"–19.5" 6-/8-lug wheels, GVWR 3,500–7,000 lbs per wheel.
  • Requirement: High-load durability and mandatory braking systems for GVWR > 1,500 lbs.
• Heavy Industrial & Construction:

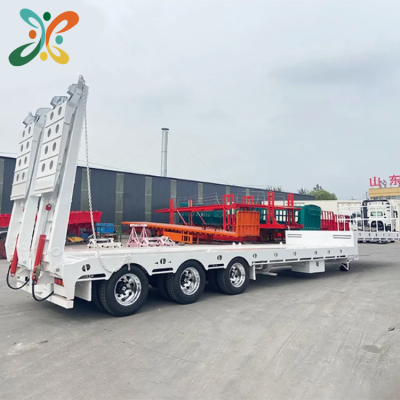

  • Scenario: Flatbeds, lowboys, and heavy equipment transport.
  • Specs: 22.5"+ 8-lug wheels, GVWR > 7,000 lbs per wheel.
  • Requirement: Heavy-duty suspension compatibility and robust braking systems.

Actionable Recommendation: For marine applications, explicitly request "salt-water grade" wheel hubs and tires. For commercial logistics, prioritize wheels with higher load ratings (e.g., 3,500 lbs vs. 2,500 lbs) to accommodate dynamic load shifts during transit, even if the static load is lower.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and regulatory shifts to avoid obsolescence.

• Market Trends & Demand Signals:
  • Regulatory Tightening: There is a growing trend toward stricter enforcement of brake requirements for trailers with GVWRs as low as 1,500 lbs. Procurement should future-proof inventory by ensuring all units meet or exceed this standard.
  • Material Shifts: Demand is increasing for aluminum wheels over steel due to weight reduction and corrosion resistance, particularly in the recreational sector.
  • Standardization: The industry is moving toward standardized tire inflation labels (Yellow/Black) to reduce liability and improve safety compliance.
• Durability & Maintenance:
  • Plan for a replacement cycle of 5–7 years for heavy-duty units and 3–5 years for light-duty units.
  • Inventory management should account for the availability of spare tires and rims, as supply chain disruptions can delay maintenance.

Actionable Recommendation: Develop a vendor diversification strategy to mitigate supply chain risks. Consider stocking a mix of steel and aluminum wheel options to hedge against price volatility in raw materials. Ensure contracts include clauses for price stability on long-term orders (12+ months).

6. Special Product Recommendations

The following table compares common wheel trailer configurations to assist in rapid decision-making.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Light Duty 5-Lug | Recreational, Small Business | 15"-16", 1,500–3,500 lbs/wheel, P195/70R14 | Low corrosion risk if galvanized; Check lug pattern match. | Verify NMMA compliance if used for boats; Ensure brake availability for GVWR >1,500 lbs. | | Medium Duty 6/8-Lug | Logistics, Equipment Rental | 17.5"-19.5", 3,500–7,000 lbs/wheel, 6/8 Lug | High stress on hubs; Verify axle certification. | Prioritize units with pre-certified hub assemblies to reduce installation errors. | | Heavy Duty 8-Lug | Construction, Heavy Transport | 22.5"+, >7,000 lbs/wheel, 8 Lug | High cost; Complex brake integration. | Require full component certification (tires, rims, axles) before shipment. | | Marine Specific | Boat Dealers, Yacht Clubs | 15"-16", Aluminum or Galvanized, Corrosion Resistant | Saltwater degradation; Check for stainless steel hardware. | Demand specific "marine grade" certifications and high-pressure inflation labels. |

Actionable Recommendation: For buyers with mixed fleets, standardize on the 17.5" 6-lug configuration for medium-duty needs to simplify inventory management. For marine buyers, insist on aluminum wheels to reduce weight and prevent rust, despite the higher initial cost.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum GVWR that requires a braking system on a trailer? A: According to industry standards (NMMA), trailers designed for a GVWR of 1,500 lbs or over must be equipped with brakes on all wheels.

Q2: How do I identify the correct tire inflation pressure for my trailer? A: Look for the mandatory Tire Inflation Pressure Label (13mm x 14mm), which must be high-contrast (Yellow on Black or Black on Yellow). It lists the specific tire size (e.g., P195/70R14) and the required cold pressure (e.g., 29 PSI).

Q3: Can I use passenger car wheels on a trailer? A: Generally, no. Trailer wheels and tires are engineered for different load ratings and duty cycles. You must use wheels and tires specifically rated for the trailer's GVWR and GAWR.

Q4: What is the typical lead time for custom wheel assemblies? A: Standard stock items are typically available within 2–4 weeks. Custom configurations (specific lug patterns or heavy-duty ratings) usually require 6–12 weeks.

Q5: Do I need to verify the axle certification separately from the wheel? A: Yes. Manufacturers are required to secure component certifications for the capacities of tires, rims, axles, hubs, and springs. Ensure the supplier provides this documentation.

Q6: What is the difference between 5-lug and 8-lug wheels? A: 5-lug wheels (15"-16") are typically for light duty (1,500–3,500 lbs/wheel), while 8-lug wheels (17.5"+) are for medium to heavy duty (3,500–7,000+ lbs/wheel). The lug count correlates directly with the load capacity.

Q7: Is the GVWR label the same as the Tire Inflation Pressure label? A: No. The GVWR label states the total weight limits of the vehicle and axles. The Tire Inflation Pressure label is a separate, smaller label (13mm x 14mm) specifically detailing tire size and pressure requirements.

Q8: What happens if I exceed the recommended tire pressure? A: Exceeding the recommended cold pressure (e.g., 29 PSI) can lead to tire failure, reduced traction, and uneven wear. Always inflate to the pressure specified on the manufacturer's label.
