oscilloscope Sourcing Overview

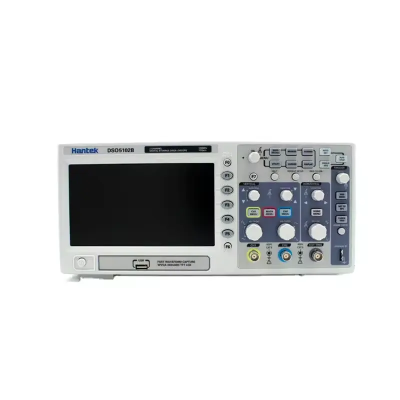

Bandwidth and Sampling Rate Matching Overlooking the alignment between bandwidth and sampling rate often leads to inaccurate signal capture; ensure the oscilloscope's bandwidth supports your highest frequency signals and that the sampling rate, such as 1 GSa/s or above, adequately captures waveform details without aliasing.

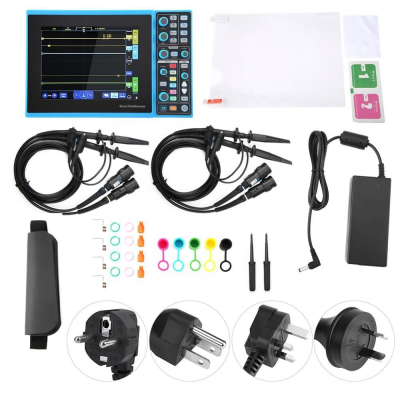

Channel Count Selection Negotiate for the appropriate number of channels based on your testing needs—while 2-channel models suffice for simple tasks, 4 or 8 channels are essential for complex multi-signal analysis or simultaneous measurements.

Memory Depth Importance In practice, most suppliers offer varying memory depths from 1 Mpts to 140 Mpts, and opting for deeper memory significantly enhances your ability to capture long-duration signals at high resolution without data loss.

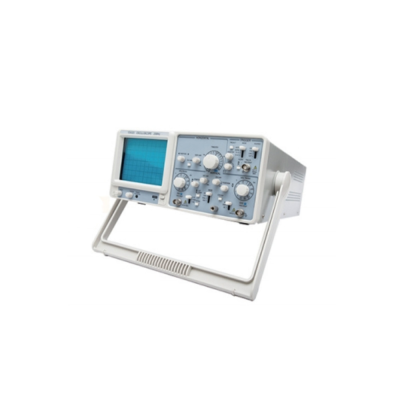

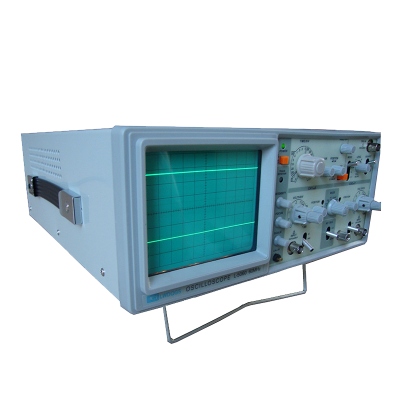

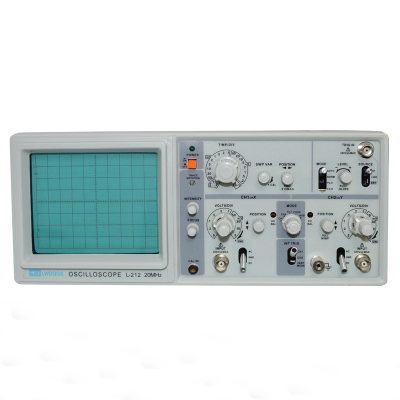

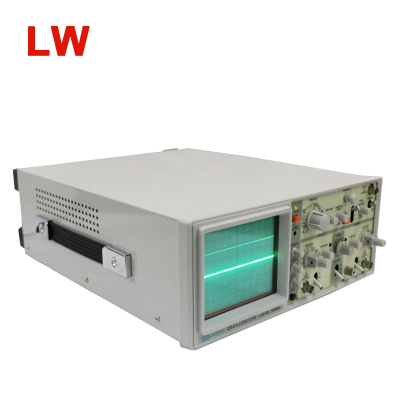

Digital vs. Analog Oscilloscope Trade-offs The trade-off between digital and analog oscilloscopes depends on your application; digital scopes provide advanced analysis and storage capabilities, whereas analog models may offer simpler, real-time visualization but lack modern features.
