Source Battery Equalizer for EVs, Solar, and UPS Systems

Battery Equalizer Sourcing Guide

Sourcing battery equalizers requires a clear understanding of the specific voltage architectures and cell configurations your inventory supports. The market presents a diverse range of units, from compact 12V models to broader systems handling nominal voltages up to 100V. Buyers must first identify whether their operational needs align with sealed or unsealed battery types, as this dictates the physical form factor and thermal management requirements of the equalizer.

Procurement teams should also evaluate the physical dimensions and weight constraints of the components. Listings indicate single package sizes ranging from approximately 10x5x5 cm to 15.8x9.9x1.9 cm, with gross weights varying from 0.2 kg to 1.2 kg. These physical attributes are critical for integration into existing enclosures or battery management systems, ensuring that the added hardware does not compromise the structural integrity or spatial efficiency of the final assembly.

Product Scope and Observed Listing Signals

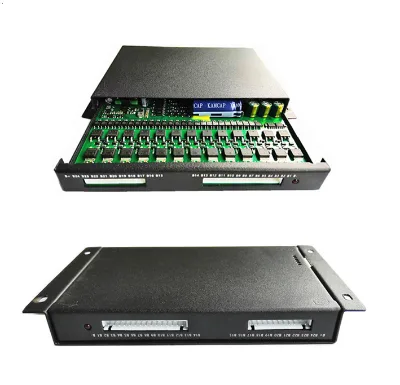

The observed product landscape includes distinct model numbers such as JK-DZ08-B1A24S, HA11L, and HA01, each representing different technical approaches to cell balancing. Some units are branded under CLRD or HX, while others carry the Huaxiao designation, indicating a fragmented supplier base with varying brand recognition. Buyers should note that while some listings specify a "Sealed Type," others do not explicitly state this, requiring direct verification of the enclosure’s environmental protection rating before integration.

Listing signals also reveal significant variation in optimizing current capabilities, with some units supporting up to 10A while others are limited to 5A. This disparity directly impacts the speed and efficiency of the balancing process, particularly for high-capacity battery packs. Additionally, under-voltage lock-out thresholds vary, with some devices activating at 1.8V and others at 10V, which must be matched to the specific discharge characteristics of the target battery chemistry to prevent premature shutdown or inadequate balancing.

Technical Specifications to Verify

Voltage compatibility is the primary technical constraint, with observed nominal ranges spanning from 2V to 12V, and some units supporting up to 100V. Buyers must verify that the equalizer’s input voltage matches the battery pack’s nominal voltage, such as 12V or 8-cell configurations of 2.4V, 3.6V, 6V, 9V, or 12V cells. Mismatched voltage ratings can lead to ineffective balancing or potential damage to the equalizer circuitry, making precise specification alignment essential for operational safety.

Protection features and power consumption metrics are equally critical for long-term reliability. Key specifications to confirm include reverse polarity protection, which safeguards against incorrect wiring during installation, and low power consumption designs that minimize parasitic drain on the battery pack. Additionally, verify the single gross weight and package dimensions to ensure accurate logistics planning, as discrepancies between listed and actual weights can impact shipping costs and inventory handling procedures.

Compliance and Safety Documentation

Certification status is a vital component of the procurement process, with some listings explicitly mentioning CE certification. Buyers should request valid test reports to confirm that the devices meet relevant electromagnetic compatibility and safety standards, such as EN61000-6-3 or IEC61000-6-1, where applicable. Relying solely on self-declared certifications without independent verification exposes the buyer to regulatory risks, particularly if the products are intended for export to markets with strict compliance requirements.

Safety documentation should also include detailed information on the under-voltage lock-out mechanisms and thermal protection features. These safeguards prevent the equalizer from operating outside safe parameters, thereby protecting both the battery cells and the equalizer itself from overheating or deep discharge. Procurement teams must ensure that the manufacturer provides clear technical manuals outlining these safety protocols, enabling proper installation and troubleshooting by end-users.

Cost Drivers and Commercial Terms

Pricing for battery equalizers varies widely, with observed ranges from $0.10 to $4000, reflecting differences in technology, current capacity, and brand positioning. The minimum order quantity (MOQ) also fluctuates, with some suppliers offering an MOQ of just one unit, while others require up to 500 pieces. Buyers should align their order volumes with their immediate project needs to avoid excessive inventory holding costs, while also negotiating volume discounts for larger, recurring purchases.

Commercial terms such as warranty periods and packaging details significantly influence the total cost of ownership. Warranty offerings range from three months to three years, with some suppliers providing free maintenance services. Packaging is typically done in cartons, with some listings specifying quantities like 50 or 120 pieces per carton. Understanding these terms helps buyers calculate the true cost per unit, including potential expenses for storage, handling, and after-sales support.

Supplier Qualification and Quality Control

Supplier qualification should begin with verifying the place of origin, with many listings indicating Guangdong, China, as the manufacturing hub. Buyers should assess the supplier’s production capacity, with some claiming a supply ability of 2000 pieces per month for battery equalizers. This capacity metric is crucial for ensuring that the supplier can meet demand spikes without compromising quality or delivery schedules, particularly for large-scale industrial applications.

Quality control processes must be rigorously evaluated, focusing on the consistency of product attributes such as weight, dimensions, and electrical performance. Buyers should request samples to test the optimizing current and under-voltage lock-out thresholds against the stated specifications. Additionally, verifying the customization status is important, as most listed products are non-customized, meaning buyers must select from existing models rather than requesting bespoke modifications.

Long-Term Procurement Checks

Long-term success depends on establishing a reliable supply chain with consistent quality and support. Buyers should monitor the supplier’s ability to maintain stable pricing and inventory levels over time, as fluctuations can disrupt production schedules. Regular audits of the supplier’s quality control processes and certification status are recommended to ensure ongoing compliance with safety and performance standards.

Furthermore, buyers should establish clear communication channels for after-sales support and warranty claims. Given the varying warranty periods, from three months to three years, it is essential to understand the claim process and response times. Building a relationship with a supplier who offers transparent support and reliable product performance will mitigate risks and ensure the longevity of the battery equalizer installations.
