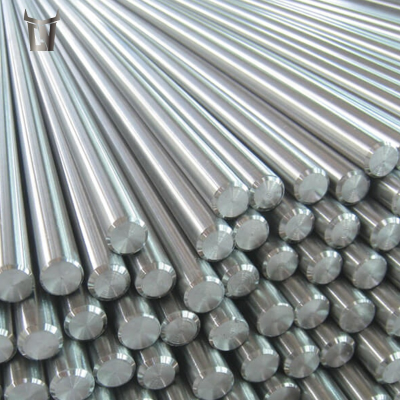

Procurement Report: Stainless Steel Bar

1. Technical Specifications and Performance Metrics

Stainless steel bars are defined by their chemical composition, mechanical properties, and geometric tolerances. Selection must prioritize the specific environment (corrosive vs. general) and the required mechanical strength.

• Material Grades & Composition:
  • 304/304L: The standard for general corrosion resistance. Contains 18% Chromium and 8% Nickel. 304L offers lower carbon content (<0.03%) to prevent sensitization during welding.
  • 316/316L: Enhanced for chloride and marine environments due to the addition of 2-3% Molybdenum. 316L is preferred for welding applications to avoid carbide precipitation.
  • 17-4PH: A precipitation-hardening grade offering high strength (tensile strength up to 1,300 MPa) with moderate corrosion resistance, suitable for aerospace and high-stress mechanical parts.
  • 303: Contains added sulfur for improved machinability but offers reduced corrosion resistance compared to 304.
• Geometry & Tolerances:
  • Shapes: Round, Hex, Square, and Flat.
  • Finishes:
    • Cold-Drawn Bright: Provides tight dimensional tolerances (typically h9 to h11 per ISO 286) and a smooth surface finish (Ra < 0.8 µm). Ideal for precision machining.
    • Hot-Rolled: Offers a mill scale surface, lower cost, and wider tolerance ranges (typically ±1.0mm to ±3.0mm depending on diameter).
• Mechanical Performance:
  • Tensile Strength: 304/316 typically range from 515 MPa to 620 MPa (annealed); 17-4PH can exceed 1,300 MPa in H900 condition.
  • Yield Strength: 304/316 typically 205 MPa; 17-4PH up to 1,100 MPa.
  • Formability: 304/316 possess moderate deep drawing and cold forming properties. Welding is feasible for thicknesses up to 12mm without post-weld heat treatment for most applications.

Actionable Recommendation: Define the application environment first. If the part will be exposed to salt water, pool chemicals, or road salt, mandate 316/316L. For general industrial use, 304 is cost-effective. For high-stress components requiring tight tolerances, specify Cold-Drawn Bright 17-4PH or 304. Always request a certified heat test report to verify chemical composition before finalizing the order.

2. Industry Compliance and Quality Assurance

Procurement of stainless steel bars requires adherence to international standards to ensure traceability and material integrity.

• Key Standards:
  • ASTM A276 / ASME SA276: Standard specification for stainless steel bars and shapes.
  • ASTM A479: Specification for stainless steel bars and shapes for use in boilers and pressure vessels.
  • EN 10088: European standard for stainless steels.
• Quality Assurance Protocols:
  • Mill Test Certificates (MTC): A certified heat number is standard. The MTC must verify chemical analysis (C, Cr, Ni, Mo, etc.) and mechanical test results (Tensile, Yield, Elongation).
  • Traceability: Ensure the heat number on the MTC matches the physical stamping or tagging on the bar bundle.
  • Surface Inspection: Verify the absence of scale (for cold-drawn) or pitting (for hot-rolled) prior to acceptance.

Actionable Recommendation: Do not accept material without a Mill Test Certificate (EN 10204 Type 3.1 or 3.2) for critical applications. Explicitly state the required standard (e.g., "ASTM A276 Grade 316L") in the Purchase Order. For marine or food-grade applications, request additional corrosion testing (e.g., ASTM G48 for pitting resistance equivalent number).

3. Cost Efficiency and Integration Capabilities

Cost efficiency in stainless steel bar procurement involves balancing material grade, finish, and machining integration.

• Cost Drivers:
  • Grade Premium: 316L typically commands a 15-25% premium over 304 due to Molybdenum content. 17-4PH is significantly higher due to alloying and heat treatment.
  • Finish Cost: Cold-drawn bright bars are 10-20% more expensive than hot-rolled bars but reduce secondary machining time by up to 40% due to tighter tolerances.
  • Volume Discounts: Typical B2B ranges suggest a 5-10% price reduction for orders exceeding 5,000 kg or 10 tons, depending on the grade.
• Integration Capabilities:
  • Machinability: 303 offers the best chip breaking and tool life but sacrifices corrosion resistance. 304/316 require optimized cutting speeds (typically 60-120 m/min for turning) to prevent work hardening.
  • Welding: 304L and 316L allow for direct welding without post-weld heat treatment for thicknesses up to 12mm, reducing assembly time and cost.

Actionable Recommendation: Conduct a "Total Cost of Ownership" analysis. If machining time is high, the extra cost of Cold-Drawn Bright stock often pays for itself in reduced labor. If the part is non-critical and will be machined heavily, Hot-Rolled stock is more economical. For high-volume production, negotiate volume tiers based on annualized demand rather than single PO quantities.

4. Typical Use Cases

Stainless steel bars are ubiquitous across industries due to their balance of strength and corrosion resistance.

• Marine & Offshore: 316/316L round bars for shafts, propeller components, and fasteners exposed to saltwater.
• Food & Beverage Processing: 304/304L bars for conveyor shafts, mixer arms, and structural supports where hygiene and cleanability are paramount.
• Chemical & Petrochemical: 316L bars for pump shafts, valve stems, and reactor components handling corrosive acids and chlorides.
• Aerospace & High-Stress Machinery: 17-4PH bars for landing gear components, turbine shafts, and high-strength fasteners requiring heat treatment.
• Automotive: 303 bars for high-speed machining of fuel system components and 304 bars for exhaust system supports.

Actionable Recommendation: Map the service environment to the grade. If the application involves chlorides (even in small amounts like road salt), strictly avoid 304 and select 316. For food processing, ensure the surface finish is polished (Ra < 0.8 µm) to prevent bacterial adhesion. For high-stress aerospace parts, specify the 17-4PH heat treatment condition (e.g., H900, H1025) explicitly.

5. Long-Term Planning Considerations

Strategic procurement requires anticipating market volatility and supply chain resilience.

• Market Trends & Demand Signals:
  • Raw Material Volatility: Prices are heavily influenced by Nickel and Molybdenum futures. Procurement teams should monitor LME (London Metal Exchange) trends for Nickel, which can fluctuate by 10-20% quarterly.
  • Sustainability: There is a growing demand for recycled-content stainless steel (often 60-70% recycled).
  • Supply Chain Localization: Due to global logistics disruptions, diversifying suppliers across different geographic regions (e.g., Asia, Europe, North America) is recommended to mitigate lead time risks.
• Durability & Lifecycle:
  • Stainless steel bars typically offer a service life of 20+ years in standard environments. In aggressive marine environments, 316L extends this significantly compared to 304, which may suffer pitting within 5-10 years if not maintained.

Actionable Recommendation: Implement a strategic stockpiling policy for critical grades (316L, 17-4PH) during periods of stable pricing to hedge against raw material spikes. Include clauses in contracts for price adjustment mechanisms tied to nickel indices if ordering long-term contracts (>12 months). Prioritize suppliers with ISO 9001 certification and documented sustainability practices to align with corporate ESG goals.

6. Special Product Recommendations

The following table summarizes the optimal selection based on buyer profile and specific application constraints.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | 304 Cold-Drawn Round | General Manufacturing, Food Processing | ASTM A276, h9 tolerance, Bright Finish | Low risk; standard availability | Ideal for cost-sensitive projects with moderate corrosion needs. | | 316L Hot-Rolled Square | Marine, Chemical, Offshore | ASTM A276, ±2mm tolerance, Mill Scale | Medium risk; check for pitting | Use only for non-critical structural parts; avoid for high-stress welding. | | 17-4PH Precipitation Hardened | Aerospace, High-Stress Mechanical | Tensile >1,300 MPa, H900 Condition | High risk; requires heat treat expertise | Verify heat treatment certification; expensive but necessary for strength. | | 303 Free-Machining Bar | High-Volume CNC Machining | Sulfur added, Easy chip breaking | Corrosion risk; avoid marine use | Best for high-speed machining of non-corrosive environments. | | Duplex Stainless (e.g., 2205) | Extreme Corrosive + High Stress | High Cr/Ni/Mo, Dual Phase Structure | Supply scarcity; specialized welding | Only for critical offshore/chemical applications; requires expert welding. |

Actionable Recommendation: For new product development, start with 304 for prototyping to validate design, then switch to 316L or 17-4PH for production if environmental or stress tests fail. Always request a sample batch for machining trials before committing to large volumes, especially for 17-4PH which requires specific heat treatment verification.

7. Frequently Asked Questions (FAQ)

Q1: What is the primary difference between 304 and 316 stainless steel bars? A: The key difference is Molybdenum. 316 contains 2-3% Molybdenum, which significantly enhances resistance to chlorides (salt water, road salt, pool chemicals). 304 lacks Molybdenum and is suitable for general atmospheric corrosion but will pit in chloride-rich environments.

Q2: Can I weld 304 stainless steel bars without post-weld heat treatment? A: Yes, for thicknesses up to 12mm, 304 can be welded without subsequent heat treatment. However, for 304L or 316L, the low carbon content specifically prevents sensitization (carbide precipitation) during welding, making them superior for welded structures.

Q3: What is the typical lead time for stainless steel bars? A: For standard grades (304/316) in common sizes, typical B2B lead times are 2-4 weeks from order confirmation. Specialized grades like 17-4PH or non-standard sizes may require 6-8 weeks or longer depending on mill availability.

Q4: How do I choose between hot-rolled and cold-drawn finishes? A: Choose Cold-Drawn Bright if you require tight dimensional tolerances (h9/h11) and a smooth surface finish to reduce machining time. Choose Hot-Rolled if cost is the primary driver and the part will undergo significant machining or surface finishing anyway.

Q5: Are there specific certifications required for food-grade applications? A: While ASTM A276 is the standard specification, food-grade applications often require the material to be free of lead and other contaminants. Ensure the supplier provides an MTC confirming compliance with FDA regulations or EU 10/2011 (if applicable) for food contact materials.

Q6: What is the minimum order quantity (MOQ) for stainless steel bars? A: Typical B2B MOQs range from 500 kg to 1,000 kg per grade/size combination. Some mills may accept smaller orders (e.g., 100-200 kg) at a premium price, but this varies by supplier and inventory levels.

Q7: How does the carbon content affect the grade selection? A: Lower carbon grades (indicated by the 'L' suffix, e.g., 304L, 316L) are preferred for welded applications to prevent intergranular corrosion. Higher carbon grades (e.g., 304H) are used for high-temperature strength applications.

Q8: What are the common machining challenges with 304/316? A: These grades are prone to work hardening and galling. It is recommended to use sharp carbide tools, maintain consistent feed rates, and use appropriate cutting fluids to prevent the material from hardening during the machining process.
