Strategic Sourcing Guide for Flexible Multi-Conductor Cable

Understanding Technical Specifications and Material Composition

When sourcing flexible multi-conductor cable, the primary objective is to align the physical construction of the product with the specific demands of the intended environment. Based on available market data, the core conductor material is predominantly copper, often specified as stranded copper wire to ensure the necessary flexibility for dynamic applications. The stranding of the conductor is a critical attribute; stranded configurations allow the cable to bend repeatedly without fatigue failure, which is essential for machinery, robotics, and mobile equipment.

The insulation and sheath materials define the cable's resistance to environmental stressors. Common configurations observed in the market utilize rubber or PVC for insulation, with CPE (Chlorinated Polyethylene) or PVC serving as the outer jacket. The choice between these materials dictates the operating temperature range and chemical resistance. For instance, specific product listings indicate a working temperature range of -25°C to 70°C, which is a standard baseline for many industrial applications. However, buyers must verify if the specific batch or model meets higher thermal requirements if the application involves heat-generating equipment or outdoor exposure to extreme cold.

Cross-sectional area is another vital specification. The market offers a broad spectrum of sizes, ranging from small signal cables to heavy-duty power conductors with cross-sections between 1.5 mm² and 400 mm². The number of cores also varies, with options such as 3-core configurations being common for specific motor control or signal transmission needs. The physical shape of the conductor is typically round, but the overall cable profile can be influenced by the packing method, which may be single items, rolled reels (e.g., 305m or 610m), or packed in cartons and export wooden drums.

Compliance and Certification Verification

Navigating the complex landscape of international certifications is a non-negotiable step in B2B procurement. The supply chain for flexible multi-conductor cables is heavily regulated, and compliance serves as a proxy for quality assurance. Buyers must rigorously verify that the supplier provides valid documentation for recognized standards. The most frequently cited certifications in the current market include CE, CCC (China Compulsory Certification), RoHS (Restriction of Hazardous Substances), ISO, and VDE.

It is crucial to distinguish between general certification claims and specific product approvals. For example, while some listings mention ISO and CE, others specifically reference VDE or UL standards like UL20549. The presence of a certification does not automatically apply to every SKU within a supplier's catalog; therefore, procurement teams must request test reports or certificates of conformity for the exact model number being ordered. The "Conductor Material" is often listed alongside certifications, such as "Copper" in the certification field, which serves as a data point but requires independent verification to ensure the material purity matches the claim.

For applications in the mining or refractory industries, the certification requirements may be more stringent. Products designated for "Mine" applications or "Refractory" ranges often require specific fire resistance and flame propagation ratings that go beyond standard CE or RoHS compliance. Buyers should explicitly ask for evidence of compliance with local safety regulations in the destination country, as standards like VDE are critical for European markets, while CCC is mandatory for the Chinese domestic market.

Cost Drivers and Pricing Variables

The pricing structure for flexible multi-conductor cables is influenced by a complex interplay of raw material costs, manufacturing complexity, and order volume. The observed price range in the market spans from $0.01 to $100 per unit, a vast disparity that reflects differences in cable length, conductor cross-section, and insulation quality. A cable priced at the lower end of this spectrum is likely a short length of small-gauge wire, whereas the higher end represents heavy-duty, long-length cables with specialized insulation.

The Minimum Order Quantity (MOQ) is a significant cost driver. The market data indicates an MOQ range from 1 unit to 10,000 units. Suppliers offering an MOQ of 1 are typically catering to prototyping or small-scale maintenance needs, often at a premium unit price. Conversely, orders approaching the 10,000-unit threshold may unlock significant volume discounts. The "Small Orders: Accepted" attribute suggests that some suppliers are flexible, but buyers should be prepared for higher per-unit costs when ordering in small quantities.

Material composition directly impacts the base cost. Copper is a volatile commodity, and fluctuations in global copper prices will inevitably affect the final quote. Additionally, the choice of insulation material plays a role; rubber and CPE jackets generally command a higher price than standard PVC due to superior flexibility and durability. Customization is another variable; while "Customization: Available" is a standard offering, any deviation from standard models (such as custom colors, specific lengths, or unique core counts) will introduce setup costs and potentially increase the lead time.

Typical Applications and Industry Suitability

Flexible multi-conductor cables are versatile components designed for a wide array of industrial and commercial applications. The data highlights several distinct use cases, ranging from power transmission to complex communication networks. In the power sector, these cables are utilized in construction, power stations, and industrial facilities where they serve as overhead or underground conductors. The "Underground" and "Overhead" application tags indicate that the cable construction must withstand environmental exposure, including moisture, UV radiation, and mechanical stress.

The mining and refractory industries present specialized requirements. Cables used in "Mine" applications must be robust enough to handle harsh, abrasive environments and potentially explosive atmospheres. Similarly, "Refractory" applications imply resistance to high temperatures and chemical corrosion, necessitating specific insulation materials that do not degrade under extreme thermal stress.

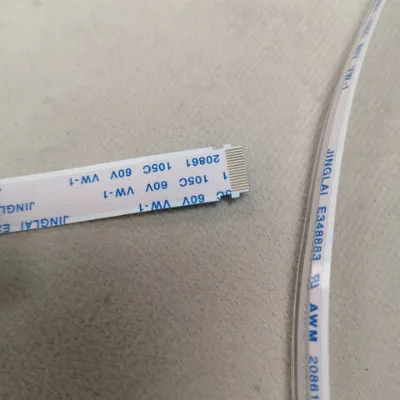

Beyond power, these cables are integral to telecommunications and data transmission. Listings mention applications in "Local Communication Cable," "Long Distance Symmetric Cable," "Coaxial Cable," "Submarine Cable," and "LAN Cable." This diversity suggests that the same base technology can be adapted for signal integrity in high-speed data environments. For instance, the "FFC CABLE" (Flexible Flat Cable) model number points to applications in computer and electronic assembly where space is limited and frequent movement is required. The ability to handle both DC and AC current further broadens the scope, making these cables suitable for everything from low-voltage control circuits to medium-voltage power distribution.

Supplier Evaluation and Origin Considerations

Evaluating a supplier requires a deep dive into their operational capabilities and geographical context. The majority of the observed supply originates from China, with specific manufacturing hubs identified in locations like Yangzhou. While China is a dominant player in the global cable market, buyers should not assume uniform quality across all regions. The presence of certifications like VDE and UL suggests that some manufacturers adhere to international standards, but the physical location of the factory can impact logistics, lead times, and communication efficiency.

When assessing a supplier, buyers should look for evidence of a robust quality management system. The availability of certifications such as ISO is a strong indicator, but it must be paired with a willingness to provide third-party test results. Suppliers that offer "Customization" and "Optional" colors demonstrate flexibility, which is a positive sign for adaptability. However, the ability to customize does not guarantee that the supplier has the capacity to maintain consistent quality during the customization process.

The packing method is another indicator of supplier professionalism. Options range from "Single Item" and "Carton" to "Rolled in Reels" and "Export Wooden Drums." For international shipping, "Export Wooden Drums" and "Steel & Wooden Drum" packing are preferred as they offer superior protection against moisture and physical damage during transit. A supplier that defaults to simple cartons for heavy industrial cables may be a red flag regarding their experience with global logistics.

Quality Control and Inspection Protocols

Implementing a rigorous quality control (QC) protocol is essential to mitigate the risks associated with sourcing flexible multi-conductor cables. The first line of defense is the verification of incoming documentation. Buyers must ensure that the Certificate of Analysis (CoA) matches the physical product, confirming the conductor material is indeed copper, the insulation is the specified rubber or PVC, and the jacket is CPE or PVC as claimed.

Visual inspection should be the initial step upon receipt. Buyers should check for uniformity in the color (noting that "Black" is a common standard but "Optional" colors exist), the integrity of the insulation, and the absence of visible defects such as cuts, nicks, or inconsistent stranding. The physical dimensions, particularly the cross-section (1.5-400 mm²) and the length per roll (305m, 610m), must be measured against the purchase order specifications.

Electrical testing is critical for verifying performance. The rated voltage (e.g., 25 V) and rated current (e.g., 10 A) must be validated through appropriate testing equipment. For cables intended for underground or overhead use, dielectric strength tests and insulation resistance measurements are necessary to ensure safety. If the cable is for mining or refractory applications, fire resistance and flame propagation tests should be conducted or verified via the supplier's test reports.

Long-Term Procurement and Supply Chain Resilience

Sourcing flexible multi-conductor cables is not merely a transactional event but a strategic partnership that requires long-term planning. The "Small Orders: Accepted" attribute suggests that some suppliers are willing to engage in smaller transactions, which can be useful for initial trials. However, for sustained operations, buyers should aim to establish a relationship with suppliers who can guarantee consistent supply and quality over time.

Lead times and production capacity are key factors in supply chain resilience. While specific lead times are not provided in the data, the MOQ range up to 10,000 units implies that suppliers have varying production scales. Buyers should clarify the lead time for both standard and customized orders to avoid production bottlenecks. Additionally, the "prod_packing" details, such as "Export Wooden Drums," should be confirmed for long-term contracts to ensure that packaging standards remain consistent, reducing the risk of damage during storage and transport.

Finally, buyers must consider the lifecycle of the cable. The working temperature range of -25°C to 70°C is a standard benchmark, but applications in extreme environments may require cables with extended temperature tolerances. Procuring cables that are slightly over-specified for the current application can provide a buffer for future operational changes, reducing the need for frequent re-sourcing. By focusing on suppliers with strong certification records, transparent quality control processes, and flexible customization options, buyers can build a resilient supply chain that supports their operational needs for years to come.

Comparative Analysis of Key Attributes

To facilitate decision-making, the following table summarizes the key attributes observed in the market for flexible multi-conductor cables. This comparison helps buyers quickly identify which specifications align with their specific project requirements.

By adhering to these guidelines and leveraging the detailed specifications provided, buyers can navigate the complex market of flexible multi-conductor cables with confidence, ensuring that the final product meets both technical and safety standards.
