Procurement Report: Thermal Imaging Cameras

Product Category: Industrial and Commercial Thermal Imaging Cameras (Infrared Thermography)

1. Technical Specifications and Performance Metrics

When procuring thermal cameras, the primary decision matrix revolves around the trade-off between resolution, temperature sensitivity, and operational range. The following metrics are critical for defining the scope of procurement:

• Thermal Resolution: This is the most critical spec. For general electrical inspections, a resolution of 320 x 240 pixels is the minimum acceptable standard. For detailed mechanical or building diagnostics, 640 x 480 pixels or higher is recommended to resolve small components. Lower resolutions (e.g., 160 x 120) are typically limited to basic home use or very broad area scanning.
• Temperature Range: Procurement must align with the target application.
  • General Electrical: -20°C to +150°C (or -4°F to +302°F).
  • Industrial/Metal Processing: -20°C to +650°C (or -4°F to +1202°F).
  • High-Temperature: Specialized models reach up to 1500°C (2732°F) for furnace monitoring.
• Thermal Sensitivity (NETD): The ability to detect minute temperature differences. High-end industrial units offer <30 mK (milli-Kelvin), while standard units range from 40 mK to 50 mK. Lower NETD values are essential for detecting subtle overheating in insulated systems.
• Screen Size and Display: A minimum 3.5-inch high-resolution LCD is standard for field use to ensure visibility in varying light conditions.
• Frame Rate: For moving machinery or rapid thermal changes, a frame rate of 30 Hz or higher is required. Standard static inspection units often operate at 9 Hz to 15 Hz.

Procurement Recommendation: Prioritize thermal resolution over screen size for professional applications. A 640x480 camera with a 3-inch screen provides better diagnostic data than a 320x240 camera with a 5-inch screen. Ensure the temperature range covers the maximum expected operating temperature of the target asset with a 20% safety margin.

2. Industry Compliance and Quality Assurance

Thermal cameras used for safety-critical inspections or industrial compliance must adhere to specific standards to ensure data integrity and operator safety.

• Certifications: Look for compliance with IEC 61010-1 (Safety requirements for electrical equipment) and IEC 61010-031 (Portable instruments). For hazardous environments (oil & gas, mining), the camera must hold ATEX (Zone 0/1/2) or IECEx certifications.
• Calibration Standards: The device should support calibration traceable to NIST (National Institute of Standards and Technology) or equivalent national bodies.
• Environmental Durability: For field operations, the unit should meet IP54 (dust and water splash protection) or IP65 (dust tight and low-pressure water jets) standards. Operating temperature ranges typically span -10°C to +50°C (14°F to 122°F) for standard models.
• Software Validation: If the camera is used for generating certified reports, the software must support ISO 18436-7 (Thermography) compliance features, including emissivity correction and reflection temperature compensation.

Procurement Recommendation: Verify that the vendor provides a valid calibration certificate with the initial shipment. For any procurement intended for hazardous locations, explicitly require ATEX/IECEx certification documentation; do not rely on "ruggedized" claims without official certification.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the unit price, encompassing software licenses, maintenance, and data management.

• Price Ranges (Typical B2B):

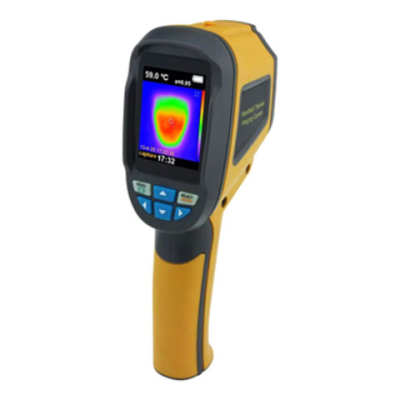

  • Entry-Level (Handheld): $1,500 – $3,500 (Resolution: 320x240).
  • Mid-Range (Professional): $4,000 – $8,000 (Resolution: 640x480, higher sensitivity).
  • High-End (Research/Industrial): $10,000 – $25,000+ (Resolution: >640x480, high frame rate, specialized lenses).
• Integration: Modern procurement should prioritize cameras with Wi-Fi/Bluetooth capabilities for real-time data transfer to mobile devices or cloud platforms. Look for SDKs (Software Development Kits) if integration with existing SCADA or CMMS (Computerized Maintenance Management Systems) is required.
• Lead Time and MOQ: Standard models typically have a lead time of 2–4 weeks. Custom configurations or high-volume orders (MOQ 10+ units) may reduce per-unit costs by 10–15% and extend lead times to 6–8 weeks.

Procurement Recommendation: Avoid "cheap" cameras that lack software interoperability. The cost of manual data entry and report generation often outweighs the savings on a lower-spec camera. Negotiate bundled pricing for software licenses (e.g., FLIR Tools, Testo IRSoft) to reduce long-term licensing fees.

4. Typical Use Cases

Thermal cameras are versatile, but procurement should be driven by the specific application scenario:

• Electrical Preventive Maintenance: Identifying loose connections, overloaded circuits, and failing breakers in switchgear. Requires high resolution and fast response time.
• Mechanical Inspection: Detecting bearing failures, misalignment, and lubrication issues in motors and pumps via heat generation from friction.
• Building Diagnostics: Locating insulation gaps, moisture intrusion, and air leaks in HVAC systems. Requires high sensitivity (low NETD) to detect subtle temperature variances.
• Firefighting and Search & Rescue: Night vision and smoke penetration capabilities. Requires long-range lenses and high-contrast displays.
• Process Control: Monitoring continuous manufacturing processes (e.g., glass, steel, plastic) for temperature consistency. Requires high frame rates and fixed-mount options.

Procurement Recommendation: Conduct a site survey to determine the smallest component size that needs to be resolved. If the target is smaller than 5mm, a standard 320x240 camera will likely fail; procure a 640x480 or higher resolution model immediately.

5. Long-Term Planning Considerations

The thermal imaging market is shifting towards connectivity and AI-driven analytics.

• Market Trends: There is a growing demand for IoT-enabled thermal cameras that stream data to the cloud for predictive analytics. The integration of AI algorithms for automatic defect detection is becoming a standard differentiator.
• Demand Signals: Increased regulatory focus on energy efficiency and safety compliance is driving demand for certified thermographers. The shift from reactive to predictive maintenance is expanding the addressable market for mid-to-high-end units.
• Lifecycle Management: Thermal sensors degrade over time. Plan for a 3–5 year recalibration cycle. Ensure the vendor offers a robust trade-in or upgrade program to mitigate obsolescence risks.
• Training Requirements: Procurement must include a budget for certified thermographer training (e.g., Level I, II, or III per ISO 18436). A high-end camera without trained operators yields poor ROI.

Procurement Recommendation: Future-proof purchases by selecting cameras with open software architectures that allow for third-party app integration. Factor in a 15% budget allocation for initial and recurring training costs to ensure the asset is utilized to its full potential.

6. Special Product Recommendations

The following table categorizes thermal cameras based on buyer profiles and specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Entry-Level Handheld | Facility Managers, Home Inspectors | 320x240, -20°C to 150°C, IP54 | Low resolution may miss small hotspots. | Verify lens compatibility; ensure basic software is included. | | Professional Handheld | Electrical Engineers, HVAC Technicians | 640x480, <40mK NETD, Wi-Fi, ATEX option | Higher cost requires clear ROI justification. | Bundle with software license; check for laser distance finder inclusion. | | Fixed-Mount Industrial | Process Engineers, Manufacturing Plants | 640x480+, 30Hz+, High Temp Range, SDK | Complex integration; requires mounting infrastructure. | Request on-site integration support; validate environmental housing. | | High-End Research | R&D Labs, Forensic Investigators | >640x480, <25mK NETD, High Frame Rate | High maintenance cost; steep learning curve. | Ensure access to vendor technical support and advanced calibration services. |

Procurement Recommendation: For most B2B industrial applications, the Professional Handheld category offers the best balance of performance and cost. Avoid "hybrid" models that claim high specs but lack the necessary calibration stability for critical safety inspections.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between resolution and sensitivity (NETD)? A: Resolution refers to the number of pixels (e.g., 320x240) determining image clarity and the ability to see small details. Sensitivity (NETD) measures the camera's ability to detect tiny temperature differences. You need high resolution to see what is hot, and high sensitivity to see how much hotter it is compared to its surroundings.

Q2: Do I need a camera with a laser distance finder? A: Yes, for most industrial applications. A laser distance finder (or integrated laser pointer) allows the operator to measure the distance to the target, which is essential for calculating the Spot Ratio (D:S) and ensuring the temperature reading is accurate for the specific spot size.

Q3: How often does a thermal camera need to be recalibrated? A: Standard industry practice recommends recalibration every 12 to 24 months, or annually if the camera is used in harsh environments or daily. Always check the manufacturer's specific recommendation.

Q4: Can I use a thermal camera in complete darkness? A: Yes. Thermal cameras detect infrared radiation (heat), not visible light, so they function perfectly in total darkness, smoke, and fog. However, visible light cameras (often combined in hybrid units) require ambient light or an IR illuminator.

Q5: What is the minimum order quantity (MOQ) for bulk procurement? A: While single units are available, typical B2B bulk pricing (10%–15% discount) applies to orders of 10 units or more. Lead times for bulk orders may extend to 6–8 weeks depending on the model.

Q6: Are thermal cameras safe to use near high-voltage equipment? A: Yes, provided the camera is rated for the environment. For electrical substations or live-line work, ensure the camera has an IP54/IP65 rating and, if working in hazardous zones, holds ATEX/IECEx certification. Maintain a safe distance as per safety protocols regardless of the camera's rating.

Q7: What software is required to analyze the images? A: Most manufacturers provide proprietary software (e.g., FLIR Tools, Testo IRSoft) for report generation and analysis. Ensure the software version is compatible with your operating system and that you have the necessary license for the number of users required.

Q8: How do I determine the correct lens for my application? A: The lens determines the Field of View (FOV). For close-up inspections (e.g., electrical panels), choose a wide-angle lens (e.g., 25°). For long-distance inspections (e.g., power lines), choose a telephoto lens (e.g., 10° or less). Always match the lens to the distance and target size.
