API 16C Choke Manifold Sourcing Guide

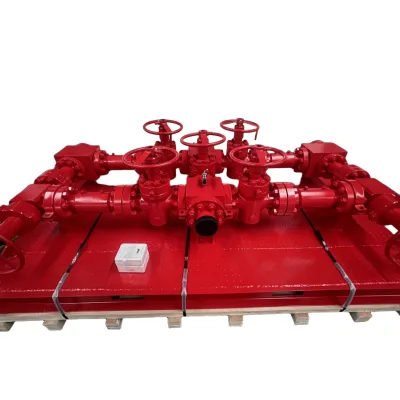

An API 16C choke manifold is a wellhead pressure-control assembly used to regulate, divert, and throttle drilling fluids during well control operations. For procurement teams in the oilfield equipment sector, sourcing these manifolds is a high-stakes exercise: the equipment sits directly in the well-control chain, operates under extreme pressures, and must conform to strict execution standards before it can be commissioned on a rig. A mistake at the sourcing stage rarely stays a sourcing problem—it becomes an operational and safety problem.

This guide walks through the full procurement cycle for API 16C choke manifolds, from interpreting product listings and verifying technical specifications to qualifying suppliers and planning long-term inspection routines. The guidance draws on observed listing attributes common to products in this category, including forged alloy construction, pressure classes from 5,000 to 15,000 psi, and execution to API 16C. Use it as a structured checklist when comparing listings and suppliers rather than as a substitute for your own engineering review and documented vendor qualification process.

Product Scope and Observed Listing Signals

Listings in this category consistently describe assemblies intended for wellhead pressure control, with work media spanning mud, oil, and drilling fluid, and in some cases crude oil, natural gas, or industrial lubricants. Observed nominal diameters cluster around 2-1/16" to 4-1/16", with some listings extending to 2" to 5" (50–125 mm). Connection types are typically union or flange, which affects how the manifold integrates with existing standpipe and flowline hardware. Common models cited include dedicated choke manifold configurations and API 16C choke-and-kill manifold packages for oilfield wells.

The price spread across observed listings—running from around $10 for component-level items to $30,000 for complete manifold assemblies—signals that many listings are for individual parts rather than full skids. Buyers should treat any listing as a configuration starting point: model fields in this category frequently read "all models," "customized," or generic descriptors, and minimum order quantities range from single units to 100. Confirm early whether you are quoting a complete manifold with choke and kill valves, gauges, and piping, or a subassembly that requires separate procurement.

Technical Specifications to Verify

The most consequential specification is the working pressure rating. Observed listings cite working stresses of 5,000 to 15,000 psi and working pressures of 35–70 MPa, with one listing citing a design pressure of 35 MPa. These are not interchangeable figures—design pressure, working pressure, and test pressure each play distinct roles in API 16C and API 6A compliance, and a manifold rated 35 MPa will not satisfy a 70 MPa requirement even if the listing language appears similar. Match the pressure class to the anticipated surface pressures of your drilling program, including kick scenarios, not just normal circulation.

Beyond pressure, verify the material class and temperature class combinations. Observed listings cite material classes from AA through HH and temperature classes from L through U, with some products specified in cast steel and others in forged alloy—forging is generally preferred for high-pressure trim, so clarify which components are forged versus cast. Also confirm service conditions: some listings specify standard, low-temperature, and acid (H2S) service, which drives NACE MR0175-compliant material selection. Nominal bore sizes, choke valve type (fixed or adjustable), and gauge configurations should all be specified in your inquiry rather than left to the supplier's default configuration.

Compliance and Safety Documentation

Execution standard is the anchor of the compliance conversation. Observed listings cite API 16C as the primary execution standard, with additional references to SY/T5244, API 6A, NACE MR0175, and API 16D—the latter typically governing control systems rather than the manifold hardware itself. When comparing suppliers, ask which of these standards governs the overall assembly and which govern individual components, because a manifold assembled from API 6A valves does not automatically meet API 16C system-level requirements for choke-and-kill function and redundancy.

Documentation requests should include material certificates traceable to heat numbers, pressure test records, and non-destructive examination reports for pressure-retaining parts. Observed listings cite ISO 9001 certification and, in some cases, CE marking, and one references a product specification level of PRL3 with performance level PR1 and material level EE—verify that the PSL level claimed in the listing matches the level required by your well design and applicable regulatory regime. For H2S service applications, request explicit confirmation of NACE MR0175 compliance for wetted components rather than accepting a general "acid service" statement, and retain all certificates in your procurement file for audit purposes.

Cost Drivers and Commercial Terms

Price variation in this category is driven primarily by pressure class, material selection, and completeness of the assembly. A forged-alloy manifold rated for 70 MPa with H2S-compatible trim will command a substantial premium over a cast-steel unit rated at the lower end of the range, even when nominal bore sizes are identical. Additional cost drivers include corrosion-resistant coating choices—observed listings cite spray-paint and sandblast surface treatments—and packing preferences such as wooden cases versus standard export packaging, which matter for shipments to humid or coastal environments.

Observed minimum order quantities range from 1 to 100 units, indicating that many suppliers in this category accommodate single-unit or small-lot purchases, which is typical for capital equipment with long service lives. When negotiating, clarify whether quoted prices include gauges, valves, skids, and connection fittings or only the piping body. Warranty terms observed in listings run to one year—confirm what the warranty covers, whether it covers both materials and workmanship, and how field failures are handled. Customization is widely advertised as available, so request itemized pricing for non-standard configurations to avoid cost creep after the purchase order is issued.

Supplier Qualification and Quality Control

Supplier qualification for pressure-control equipment should go beyond certificate collection. Start with an on-site or third-party audit covering the supplier's forging and casting sources, machining capability, and pressure test infrastructure. A supplier who lists "customized" model configurations should be able to demonstrate an engineering review process—drawing control, design verification, and change management—rather than ad-hoc assembly from stock components. Ask how welding on pressure parts is qualified and who performs it, since welded assemblies are a common failure point if procedure qualifications are weak.

Quality control evidence should include documented hydrostatic pressure tests at the ratios required by the applicable standard, dimensional inspection against approved drawings, and coating thickness checks for spray-painted or sandblasted surfaces. For orders bound for H2S or low-temperature service, require material test reports for every pressure-retaining component, not just a representative sample. Pre-shipment inspection by your own inspector or an appointed third party is a reasonable safeguard for first orders and for any manifold rated at the upper end of the observed 35–70 MPa pressure range. Finally, verify the manufacturer's traceability system: each component should be identifiable back to its material certificate throughout the manifold's service life.

Long-Term Procurement Checks

Choke manifolds are long-service assets that will require maintenance, spare parts, and occasional re-rating decisions over a decade or more of use. Build lifecycle provisions into your first purchase: secure drawings, an approved vendor list for choke trim and seals, and a recommended spare-parts list covering components most subject to wear from abrasive drilling fluids. Observed listings note features such as forklift pockets and wooden case packaging—confirm transport and handling provisions align with your rig-up procedures, and factor installation and commissioning support into the total acquisition cost.

Plan periodic requalification of the asset itself. Establish inspection intervals based on operating hours and well severity, with particular attention to erosion of choke trim, corrosion under coatings, and the condition of union or flange connections. When sourcing replacement parts or additional manifolds later, insist on dimensional and material compatibility with the original unit, which is easiest when you retain the original supplier's drawings and certificates. Finally, track warranty claims and failure data from the first year of service—observed warranties run to one year—and use that record to inform whether the supplier earns a place on your approved list for future wells and expansion projects.
